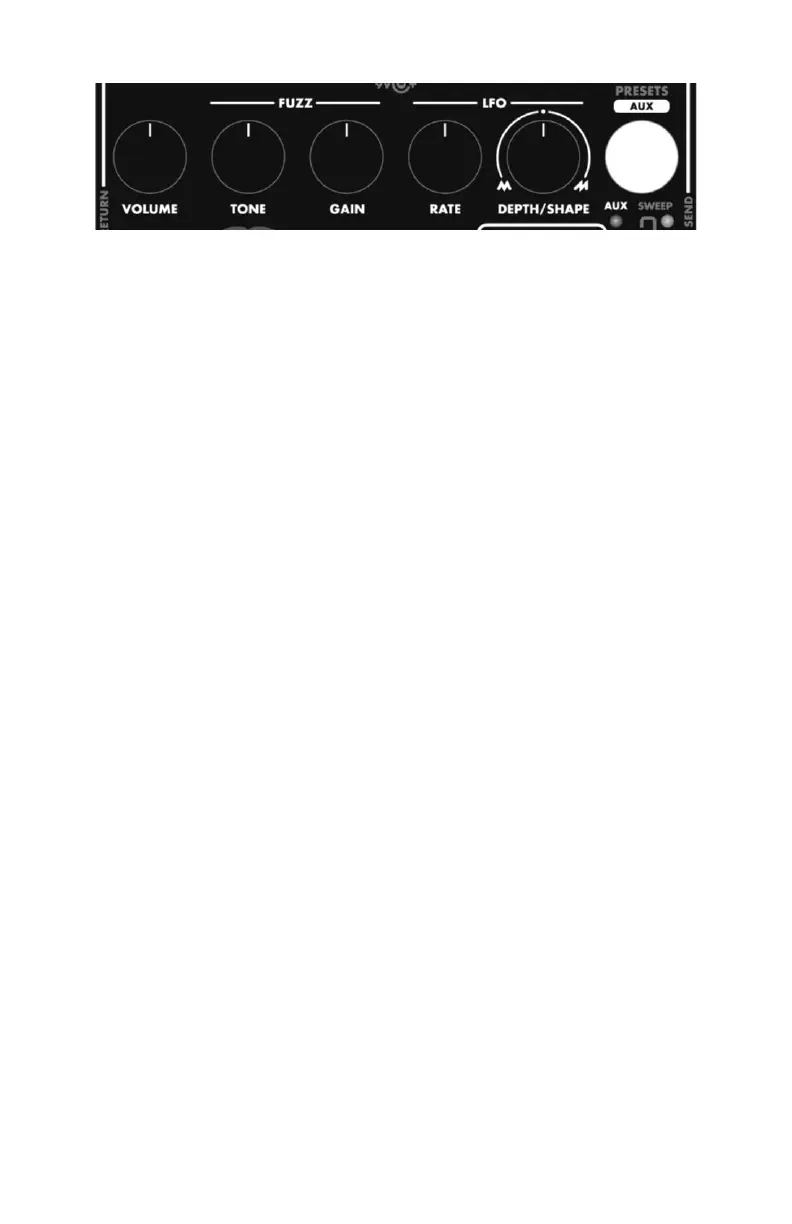

– AUXILIARY KNOB FUNCTIONS –
VOLUME
(BLEND knob)
– Adjusts the overall output volume of the STM. As you
turn the knob clockwise, the volume will increase.
FUZZ TONE
(VOICE knob)
– Increases the treble or high frequency response of the
fuzz as the knob is turned clockwise. The FUZZ GAIN aux knob must be set to
somewhere other than the off position for FUZZ TONE to have an effect.
FUZZ GAIN
(ATTACK knob)
– Controls the amount of distortion. As you turn the
knob clockwise the distortion will increase. At the full counterclockwise position (off),
the fuzz section is bypassed.
LFO RATE
(DECAY knob)
– Controls the rate or speed of LFO modulation applied to
the filter sweep. The LFO DEPTH/SHAPE aux knob must be set to somewhere other
than the off position for LFO RATE to have an effect.
LFO DEPTH/SHAPE
(SENSITIVITY knob)
– Sets the amount of triangle or
sawtooth wave modulation that is applied to the filter sweep. The center detent
signifies the off position for no modulation. Turning the knob clockwise will increase
the amount of sawtooth modulation. Turning the knob counterclockwise will
increase the amount of triangle modulation.
