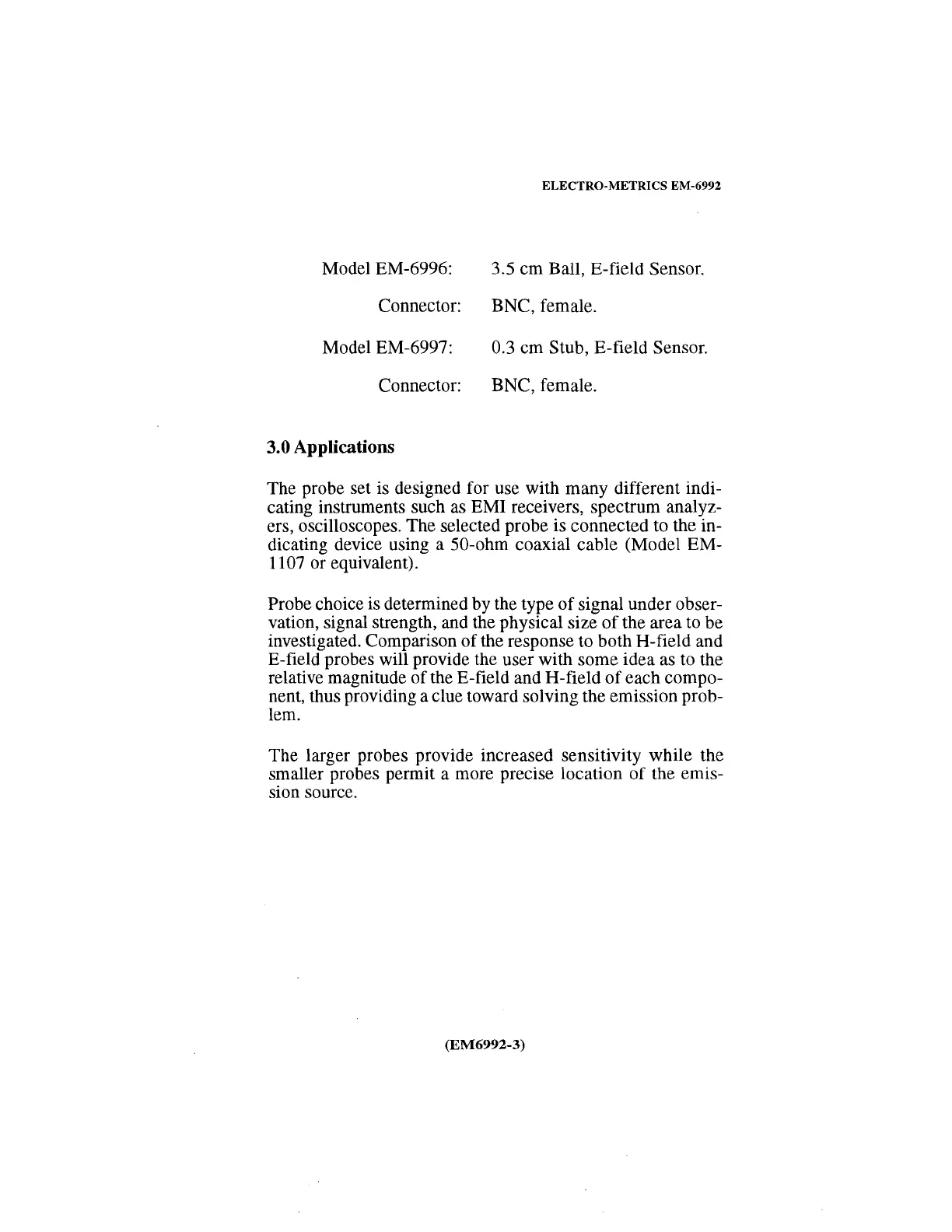

ELECTRO-METRICS
EM-6992
Model EM-6996: 3.5
cm
Ball, E-field Sensor.
Connector: BNC, female.
Model EM-6997:
0.3
cm
Stub, E-field Sensor.
Connector:
BNC, female.
3.0 Applications
The probe set is designed for use with many different indi-
cating instruments such as EMI receivers, spectrum analyz-
ers, oscilloscopes. The selected probe is connected to the in-
dicating device using a
50-ohm coaxial cable (Model EM-
1107 or equivalent).
Probe choice is determined by the type
of
signal under obser-
vation, signal strength, and the physical size
of
the area to be
investigated. Comparison
of
the response to both H-field and
E-field probes will provide the user with some idea as to the
relative magnitude of the E-field and H-field
of
each compo-
nent, thus providing a clue toward solving the emission prob-
lem.
The larger probes provide increased sensitivity while the
smaller probes permit a more precise location
of
the emis-
sion source.
(EM6992-3)
