DC-One
40 Owner‘s Manual

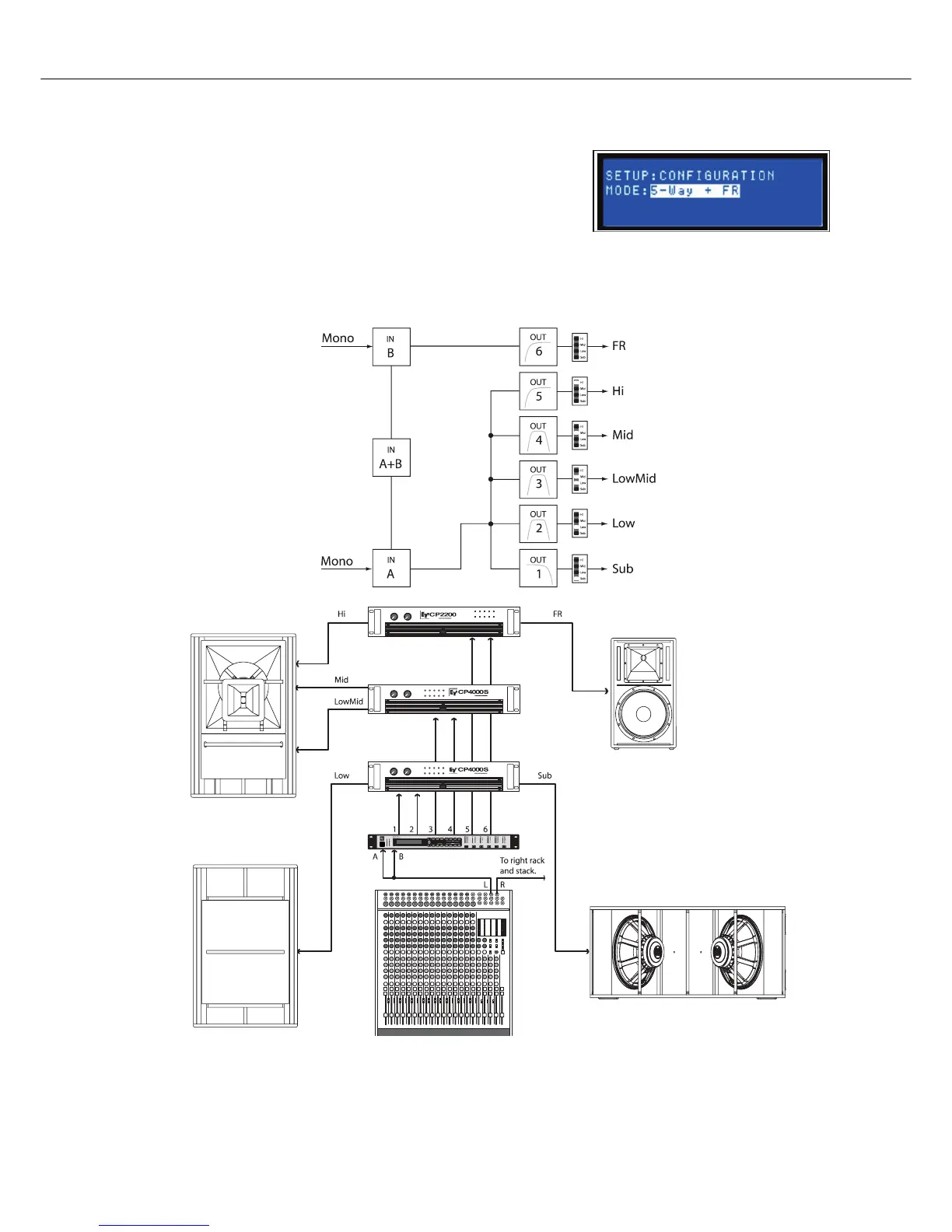

7.4 5-Way + FR
The 5-Way configuration is a monaural 5-way frequency x-over.
Crossover channels are fed from IN A, full range channels are fed
from IN B. OUT 1 is a mono Sub frequency channel, OUT 2 the
mono Very Low-frequency, OUT 3 is the mono Low-frequency
channel, OUT 4 is the mono Mid-Frequency channel , OUT 5 is the
mono High-frequency channel and OUT 6 is the Full-range channel.
Note: On Input channels, all Parametric EQ and Graphic EQ parameters are not linked. For Output
channels, linking applies to Crossover Highpass and Lowpass filters (see page 44 for details).
