Xcn Two-Way MB/HF System
Xcn Two-Way MB/HF System
10

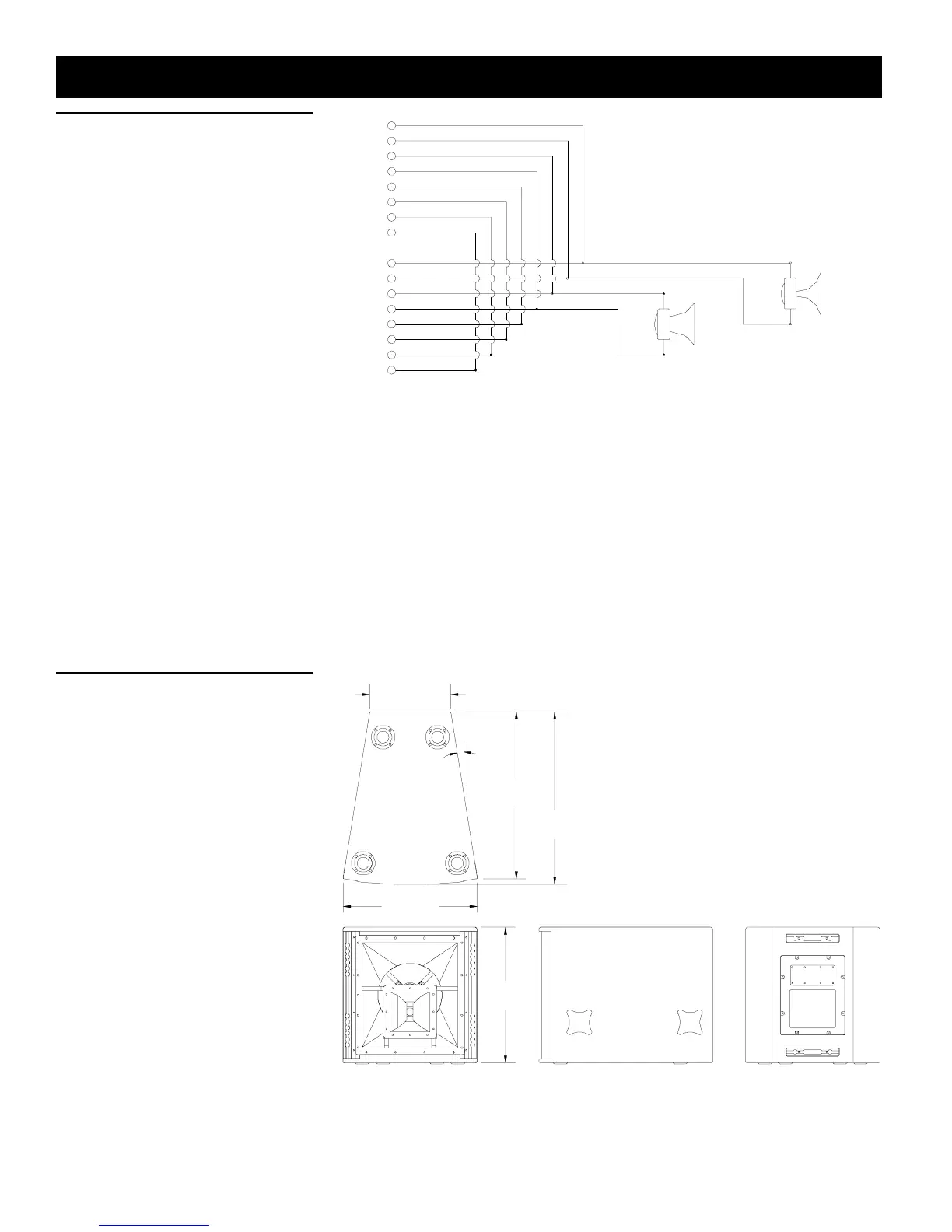

Figure 7—Wiring Diagram
The wiring diagram of each frequency band
of the Xcn is shown.
Figure 8—Dimensions
BLACK SPEAKER TERMINAL IS "-"
HF:
MB:
PINS 1 & 2 PARALLELED
PINS 4 PARALLELED
PINS 3 PARALLELED
RED SPEAKER TERMINAL IS "+"
BLACK
BLUE
BLACK
RED
BLACK
RED
BLACK
WHITE
3 -
1 -
1+
2 -
2+
4+
4 -
3+
1 -
BLACK
RED
1+
BLACK
RED
BLACK
BLUE
BLACK
WHITE
PARALLELED CONNECTORS
4+
4 -
3+
3 -
2 -
2+
WHITE
BLUE
BLACK
BLACK
+
_
+
_
16 OHMS NOMINAL
MB
6.0 OHMS DC
HF
16 OHMS NOMINAL
10.5 OHMS DC
353.8 mm
(13.93 in.)
733.2 mm
(28.87 in.)
758.8 mm
(29.88 in.)
584.2 mm
(23.00 in.)
595.9 mm
(23.46 in.)
9.0°
TYP.
WEIGHT: 60.8 kg(134 lb)
