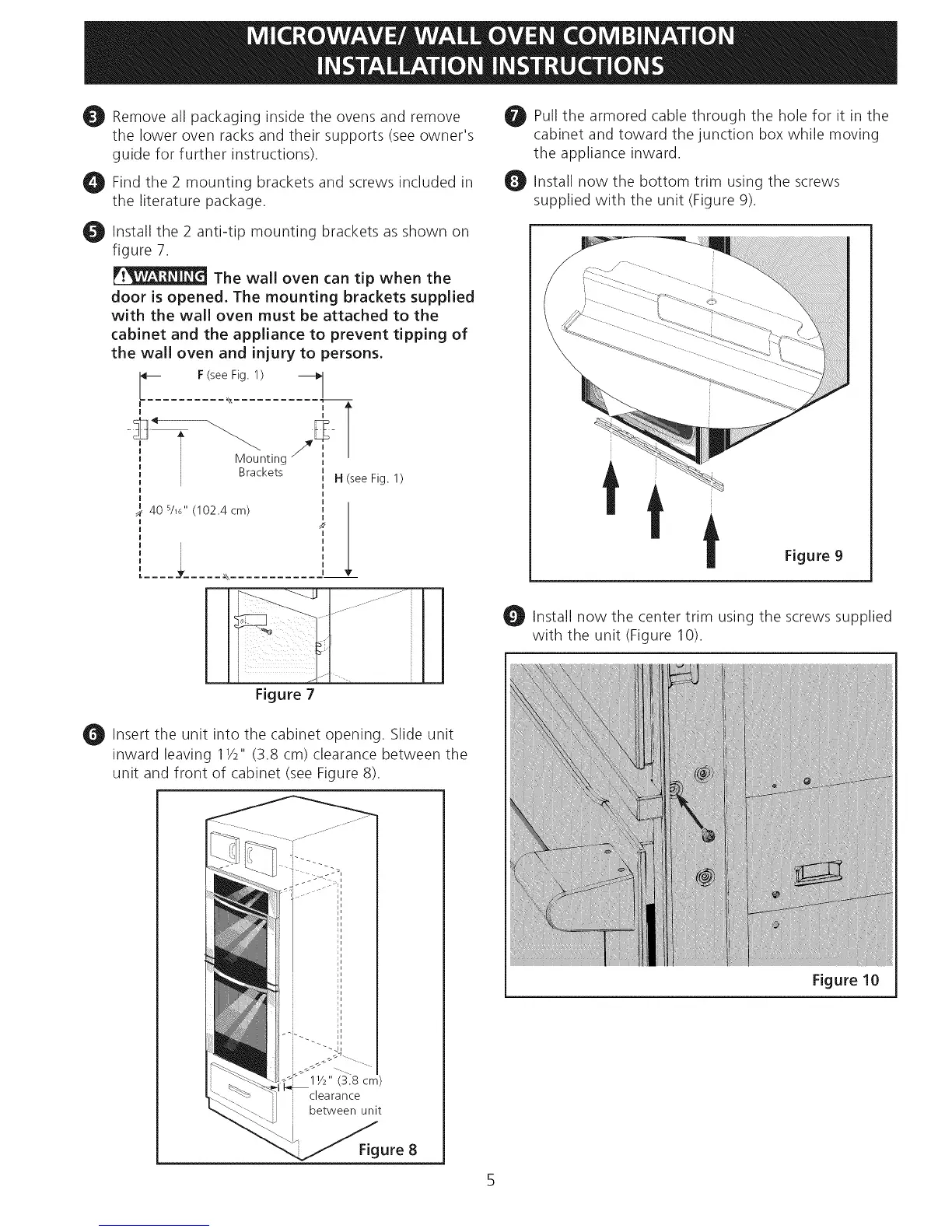

0 Removeallpackaginginsidetheovensandremove
thelowerovenracksandtheirsupports(seeowner's
guideforfurtherinstructions).
O Findthe2 mountingbracketsandscrewsincludedin
theliteraturepackage.
Installthe2anti-tipmountingbracketsasshownon
figure7.
The wall oven can tip when the
door is opened. The mounting brackets supplied
with the wall oven must be attached to the
cabinet and the appliance to prevent tipping of
the wall oven and injury to persons.
_1_ F(see Fig. 1) _1
_k
:T
-__nkt:_g /_'l -H (see Fig. 1)
40 5/Ie" (102.4 cm)
/
Figure 7
Insert the unit into the cabinet opening. Slide unit
inward leaving 11/2'` (3.8 cm) clearance between the
unit and front of cabinet (see Figure 8).
1Y2" (3.8 cm)
clearance
between unit
Figure 8
_1 Pull the armored cable through the hole for it in the
cabinet and toward the junction box while moving
the appliance inward.
_! Install now the bottom trim using the screws
supplied with the unit (Figure 9).
!
Figure 9
_! Install now the center trim using the screws supplied
with the unit (Figure 10).
Figure 10
