Electrolux EDC 504M - Using the Tumble Dryer; Control Panel Overview

51
ENGLISH
Use

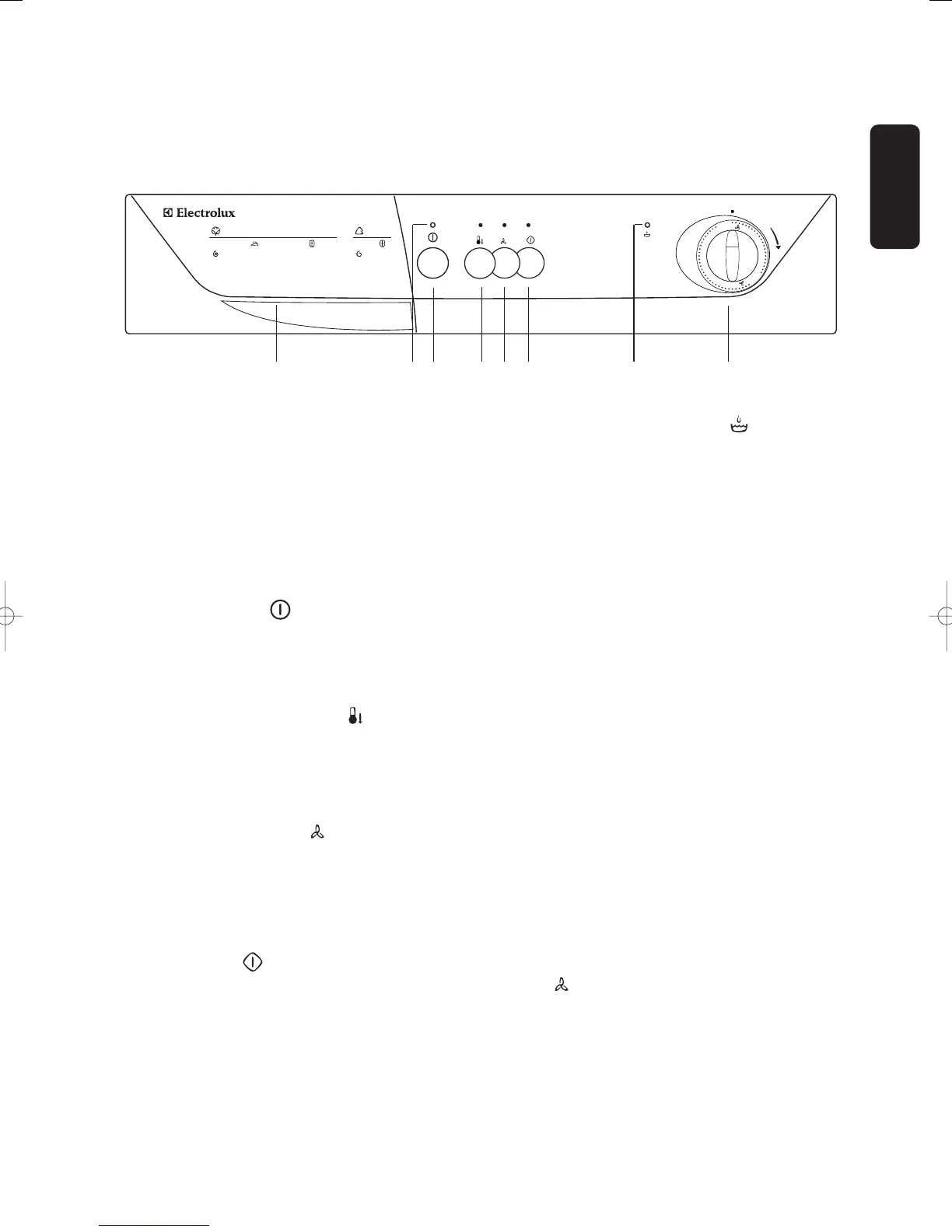

The control panel
kg 5
kg 2,5
kg 2,5
kg 1
650
65'- 75'
30'- 40'
kg 5
kg 2,5
kg 2,5
kg 1
650
65'- 75'
30'- 40'
12345678
0
20
40
60
80
100
0
20
40
60
80
100
120
150
EDC 504 M
800/900 1000/1200800/900 1000/1200
110' - 130'
60' - 75'
100' - 125'
55' - 70'
85' - 105'
45' - 60'
75' - 100'
40' - 55'
800/900 1000/1200800/900 1000/1200
110' - 130'
60' - 75'
100' - 125'
55' - 70'
85' - 105'
45' - 60'
75' - 100'
40' - 55'
1 Programme Guide
This will help you to select the correct time for drying.
2 Mains-ON Light
Comes on when the appliance is switched on
(ON/OFF button pressed down) and goes out when
this button is released.
3 ON/OFF Button
This button is used to switch the dryer on. At the end
of the programme, release this button by pressing it
again to switch the dryer off.
4 Low Temperature Button
Press this button to reduce the temperature when
drying particularly delicate cotton or linen items.
In this case you should select a longer drying time.
5 Cool Tumble Button
By depressing this button the heat is cut off. This is
particularly useful to freshen the laundry (e.g. to
remove a persistent odour of moth balls) or to dry
extremely delicate items.
6 Start Button
Press this button to start the dryer after having
selected the programme.
If the door of the appliance or the small door at the
bottom are opened while the programme is
running, this button must be pressed again after
closing the door in order to restart the programme
from the point at which it was interrupted.
This button must also be pressed after a power
cut.
7 Water Full Indicator Light
This light illuminates when the reservoir is full or
improperly fitted.
Important !
The programme will be interrupted, but the time
selector dial continues to turn towards the “0”
position. The laundry is not dried. After having
emptied the container, you have to select the drying
programme again for the time required to complete
drying.
Attention: after this operation, the dryer can remain
unactive for some minutes before starting the
programme and during this period the water
container light remains alight.
8 Time Selector Dial
The selector dial incorporates two drying cycles, one
of up to 150 minutes at a high temperature for cotton
and linen, and one of up to 100 minutes at a low
temperature for synthetic fabrics. To set the machine
to the selected time, turn the dial clockwise until the
time you want coincides exactly with the pointer.
NEVER attempt to turn the dial in an
anticlockwise direction.
When selecting the drying time you should
remember that it includes a 10 minute cooling phase
(position on the dial).
This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damages
to the laundry.
