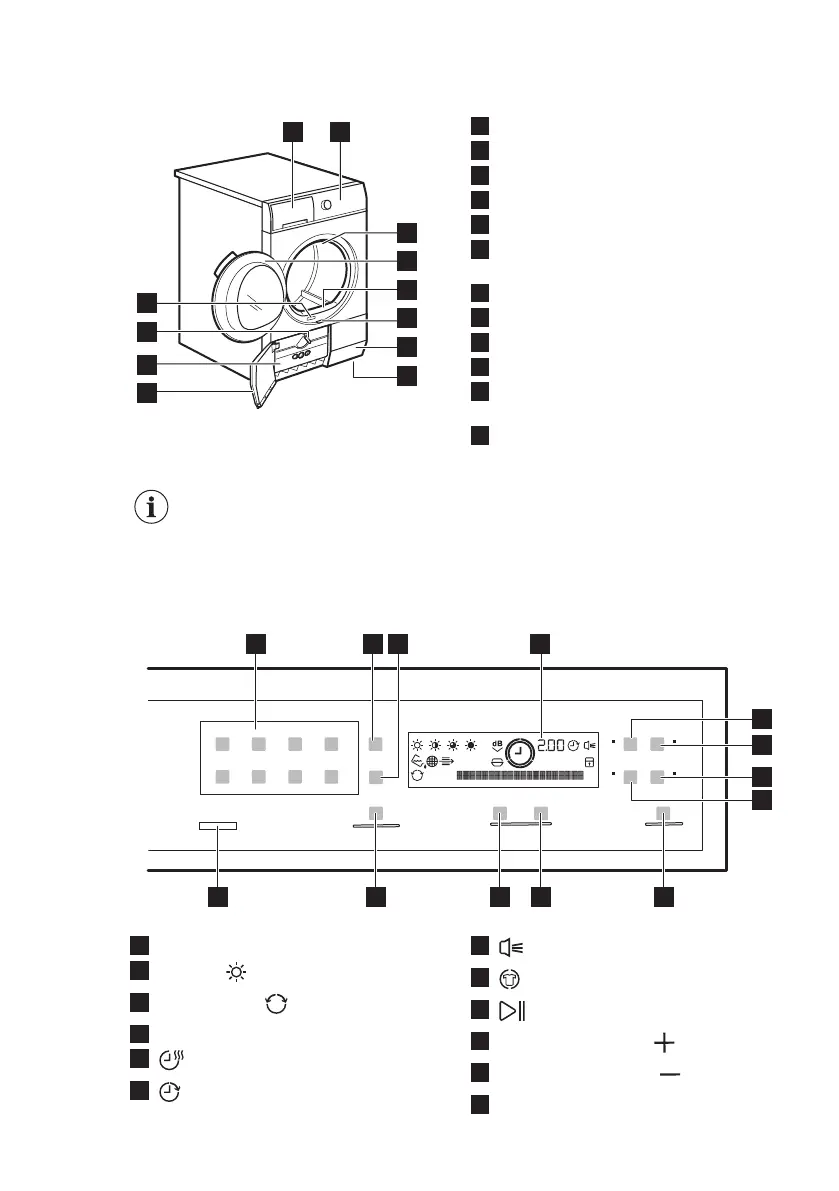

3. PRODUCT DESCRIPTION
1 2
7
4
3
5
6
9
10
11
12
8
1
Water container
2
Control panel
3
Internal light
4
Appliance door
5
Primary Filter
6
The button to open the heat
exchanger door
7
Airflow slots
8
Adjustable feet
9
Heat exchanger door
10
Heat exchanger cover
11
The knob to lock the heat exchanger
cover
12
Rating plate
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
4. CONTROL PANEL
4321
910111213
5
8
7
6
1
Programme knob
2
Dryness touchpad
3
Reverse Plus touchpad
4
Display
5
Time touchpad
6
Delay touchpad
7
Buzzer touchpad
8
Anti-crease touchpad
9
Start/Pause touchpad
10
Rack Time increase touchpad
11
Rack Time decrease touchpad
12
MyFavourite+ touchpad
