Electrolux EDS - Page 8

8
Installation manual

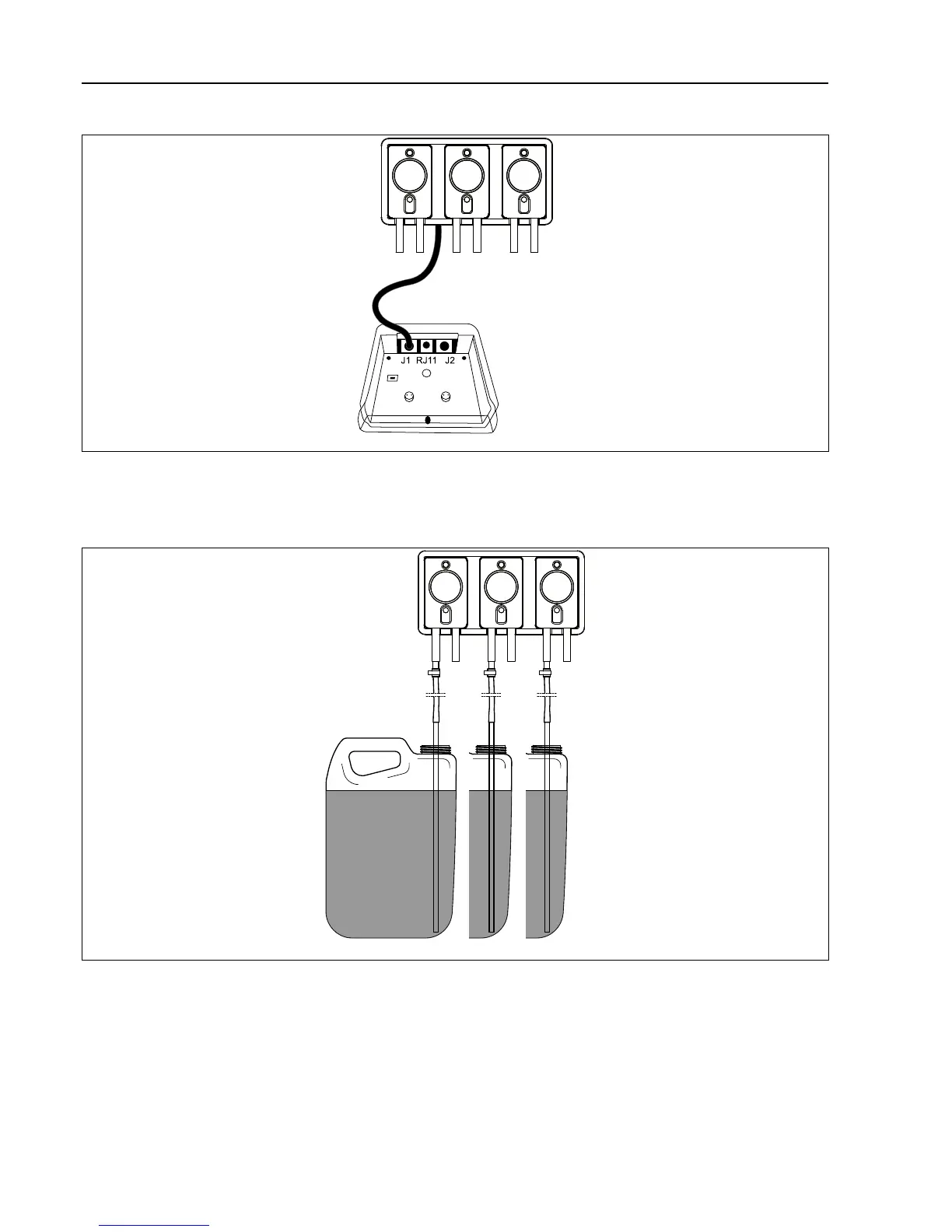

Connect the cable from the pump-stand to the J1 port on the EDS controller.
fig.8055A
Connect the hoses to the pump-stand.
Connect the hose from the liquid detergent to the left on each pump.
The hose from the pump to the washer extractor is connected to the right on each pump.
fig.8053
