- Assemble the runners on the sides of the machine
(using the screws supplied) as shown in fig.1.
- Fasten the telescopic runner supports (RH and LH)
using three wood screws (fig.2) and taking care to
follow the measurements shown in fig.2.
- Make a slot in the bottom of the open compartment
following the measurements given in fig.2.
- If the compartment does not have a shelf for the
machine to rest on, assemble the machine fixing
bracket (ref.29) as shown in fig.4. Place screw 1 in
the slot of the bracket and adjust the position before
locking in place using screw 2.
- Fasten the power supply unit (fig.3) to the back of
the appliance in the top left-hand corner using two
wood screws as shown in fig.2.

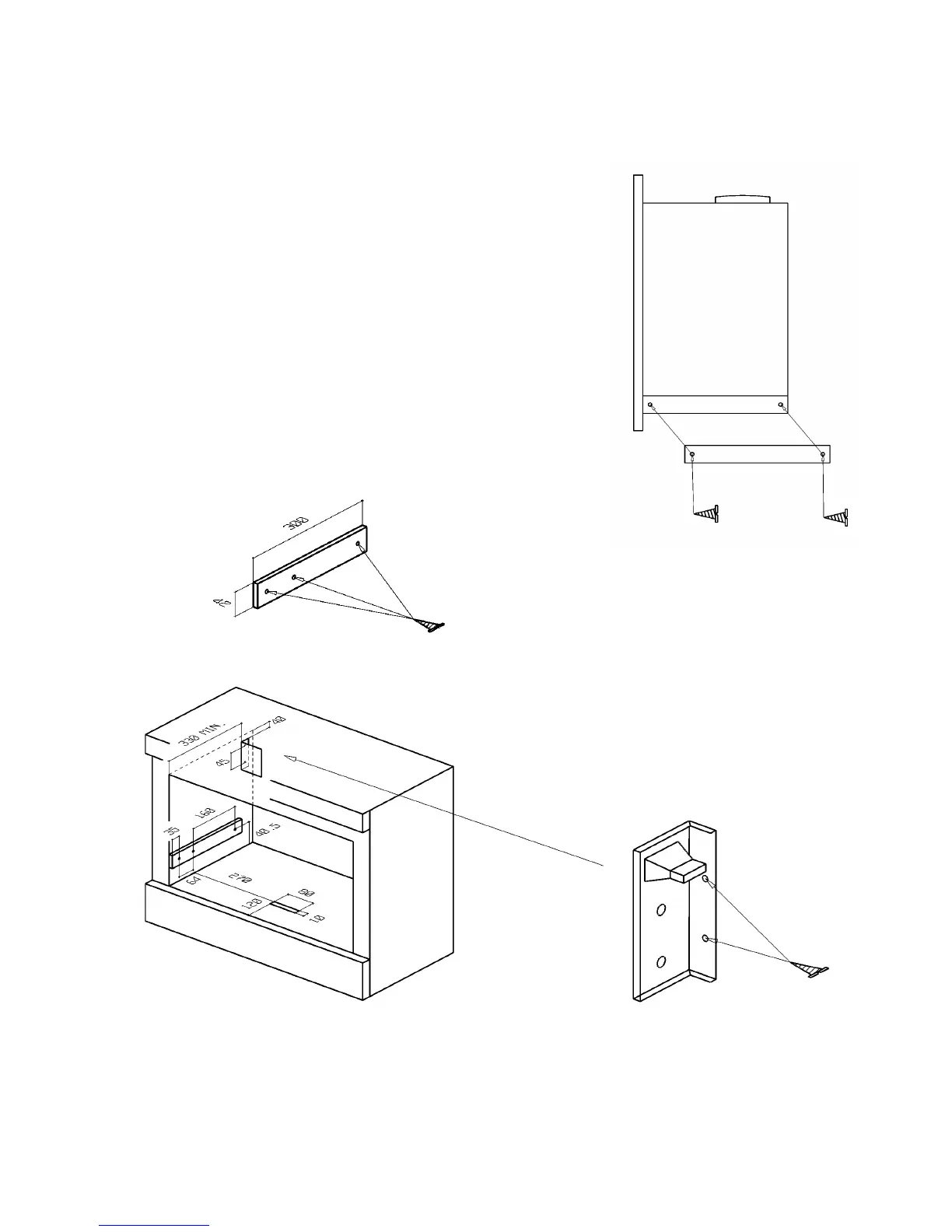

Fig. 2
Fig. 1
Fig. 3
