ELECTRICAL
CONNECTION
− Make sure that the electric circuit is suitably
earthed.
− Connect the power cable supplied to the connector
on the back of the appliance, plug the connector
into the power supply unit on the back of the post
(fig.3) where you will find the terminal board
(fig.9) set to operate at a supply voltage of 230V
monophase.
− Make sure that a circuit breaker is installed in the
electrical circuit of the building to disconnect it
from mains and that contacts are at least 3mm apart.
− WARNING: the supplier disclaims all
responsibility in the case of non-observance of
the above rule.

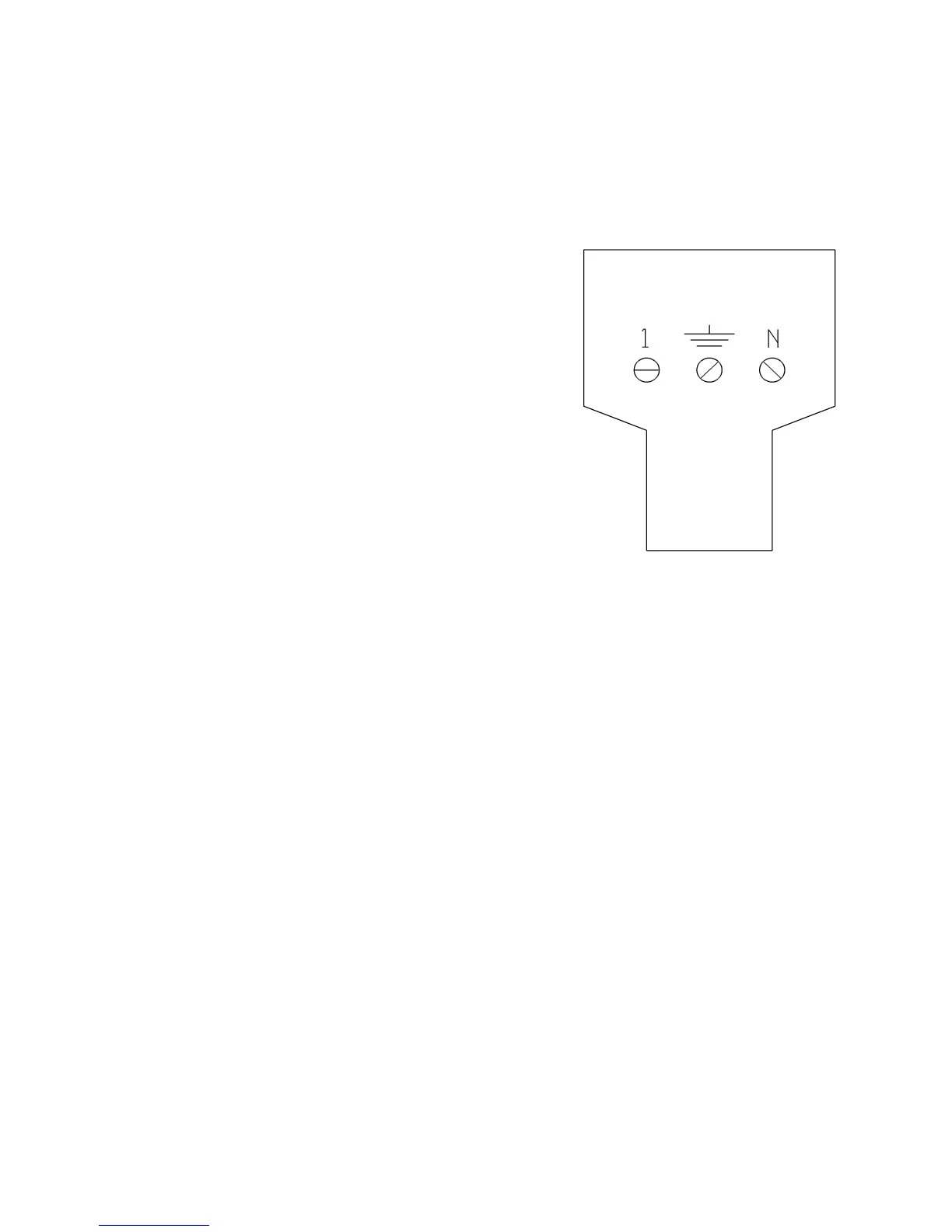

Fig. 9
