The following accessories are supplied together
with the hood:
Montage template (for making holes): Template
for fixing to the wall or under-wall unit (printed
on the packaging).
Montage kit, 4 4x60 mm screws, 4
5x30 M screws, 4 5.3x15 mm washers, 4
5.3x10 mm washers, 5 4 mm M nuts, 4
spacers, 4 dials, 2 brackets
and 2 valves.
Instructions booklet.
The following accessories can be ordered
from your retailer:
The flue assembly: to connect the hood to a
tube for the evacuation of fumes in conformity
with the Boverket regulations, use the flue
assembly that contains 1 evacuation tube, 2 tube
clamps and 1 joint for the ceiling with an
appropriate PNC 942 121 051 connection ring.
LONG LIFE active carbon filter : it is necessary
to use an active PNC 942 121 054 (50 cm), 942
121 054 carbon filter(60/70 cm) when the hood
is connected to a filtering system.
Ventilation grill: ventilation grill for the PNC 391
433 101 filtering version.

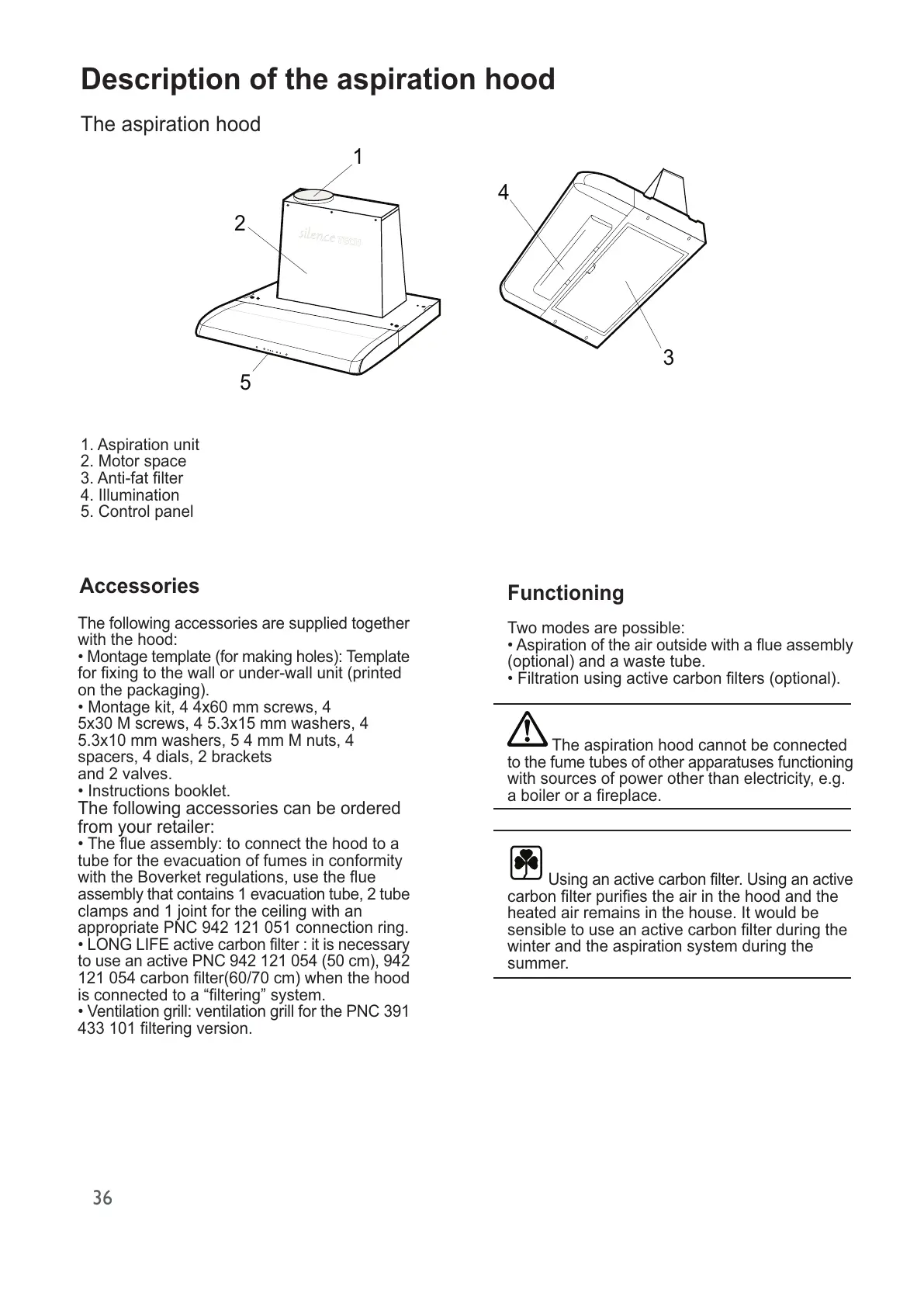

Description of the aspiration hood
The aspiration hood
1. Aspiration unit
2. Motor space
3. Anti-fat filter
4. Illumination
5. Control panel
2
1
3
4
5
Accessories
Functioning
Two modes are possible:
Aspiration of the air outside with a flue assembly
(optional) and a waste tube.
Filtration using active carbon filters (optional).
The aspiration hood cannot be connected
to the fume tubes of other apparatuses functioning
with sources of power other than electricity, e.g.
a boiler or a fireplace.
Using an active carbon filter. Using an active
carbon filter purifies the air in the hood and the
heated air remains in the house. It would be
sensible to use an active carbon filter during the
winter and the aspiration system during the
summer.
