4. Assemble the parts, follow the same
procedure backwards.
5. Attach the label with the new type of
gas supply near the gas supply pipe.
You can find this label in the package
supplied with the appliance.
If the supply gas pressure is changeable
or different from the necessary pressure,
you must fit an applicable pressure
adjuster on the gas supply pipe.
3.5 Conversion to G 2.350 gas
For the G 2.350 gas
conversion please contact
our Authorised Service
Centre.
3.6 Adjustment of minimum
level
To adjust the minimum level of the
burners:
1. Light the burner.
2. Turn the knob on the minimum
position.
3. Remove the knob.

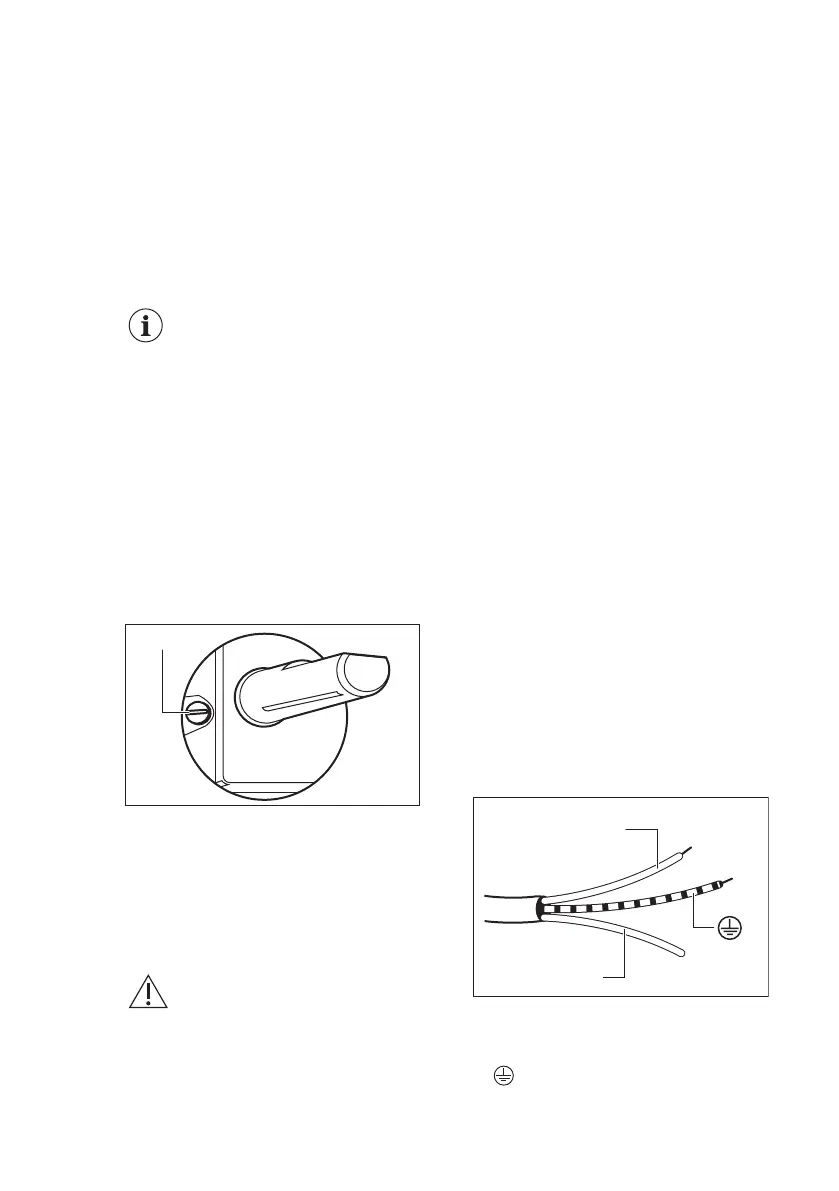

4. With a thin screwdriver, adjust the
bypass screw position (A).
A
5. If you change:
• from natural gas G20 20 mbar to
liquid gas G30/G31 37 mbar, fully
tighten the bypass screw in.
• from liquid gas G30/G31 37 mbar
to natural gas G20 20 mbar, undo
the bypass screw approximately
1/2 of a turn.
WARNING!
Make sure the flame does
not go out when you quickly
turn the knob from the
maximum position to the
minimum position.
3.7 Electrical connection
• Make sure that the rated voltage and
type of power on the rating plate
agree with the voltage and the power
of the local power supply.
• This appliance is supplied with a
mains cable. It has to be supplied with
a correct plug which can hold the load
that the rating plate rates. Make sure
that you install the plug in a correct
socket.
• Always use a correctly installed
shockproof socket.
• Make sure that there is an access to
the mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• There is a risk of fire when the
appliance is in connection with an
extension cable, an adapter or a
multiple connection. Make sure that
the ground connection agrees with the
standards and regulations.
• Do not let the power cable to heat up
to a temperature higher than 90° C.
3.8 Connection cable
To replace the connection cable use only
the special cable or its equivalent. The
cable type is: H05V2V2-F T90.
Make sure that the cable section is
applicable to the voltage and the working
temperature. The yellow / green earth
wire must be approximately 2 cm longer
than the brown (or black) phase wire.
L
N
1. Connect the green and yellow (earth)
wire to the terminal which is marked
with the letter 'E', or the earth symbol
, or coloured green and yellow.
www.electrolux.com10

Electrolux EGD6576NOK Specifications

General

Hob type	Combi
Frame type	Frameless
Product color	Black
Hob width size	60 cm
Top surface type	-
Appliance placement	Built-in
Cooking zone 1 type	Simmer
Cooking zone 2 type	Large
Cooking zone 4 type	Regular
Cooking zone 1 boost	2500 W
Cooking zone 1 power	1900 W
Cooking zone 1 shape	Round
Cooking zone 2 boost	3300 W
Cooking zone 2 power	2300 W
Cooking zone 3 power	2700 W
Cooking zone 4 power	1400 W
Pan support material	Cast iron
Cooking zone 1 diameter	70 mm
Cooking zone 1 position	Right front
Cooking zone 2 diameter	210 mm
Cooking zone 2 position	Left front
Cooking zone 3 diameter	100 mm
Cooking zone 3 position	Right rear
Cooking zone 4 diameter	140 mm
Cooking zone 4 position	Left rear
Number of cooking zones	4 zone(s)
Cooking zone 1 power source	Electric
Cooking zone 3 power source	Gas
Number of gas cooking zones	2 zone(s)
Timer	Yes
Control type	Touch, Rotary
Control position	Top front
AC input voltage	230 V
AC input frequency	50 Hz
Connected load (gas)	4800 W
Connected load (electric)	3700 W
Package depth	630 mm
Package width	720 mm
Package height	160 mm
Package weight	12100 g

Weight and Dimensions

Depth	520 mm
Width	590 mm
Height	50 mm
Weight	11500 g
Cord length	1.1 m
Installation compartment depth	490 mm
Installation compartment width	560 mm
