1. Connect the green and yellow (earth)
wire to the terminal which is marked
with the letter 'E', or the earth symbol
, or coloured green and yellow.
2. Connect the blue (neutral) wire to the
terminal which is marked with the
letter 'N' or coloured blue.
3. Connect the brown (live) wire to the
terminal which is marked with the
letter 'L'. It must always be connected
to the network phase.

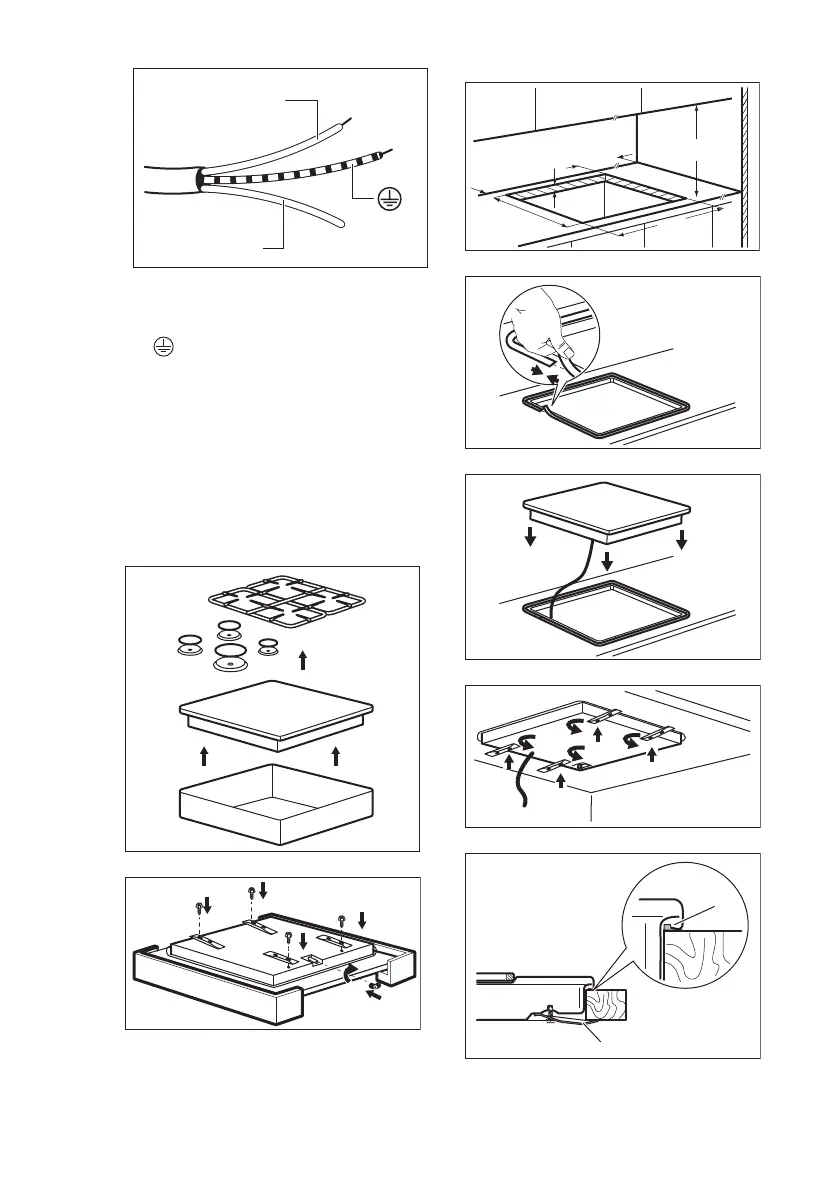

3.7 Assembly
1.
2.
3.
min.
55 mm
min.
650 mm
560 mm
2
0
+
480 mm
2
0
+
min.
150 mm
30 mm
4.
5.
6.
7.
A. Supplied seal
B. Supplied bracket
