The dataplate gives the product identification and tech-
nical data; the meaning of the information given on it is
listed below.
The marking plate is located on the right side panel of
the equipment.

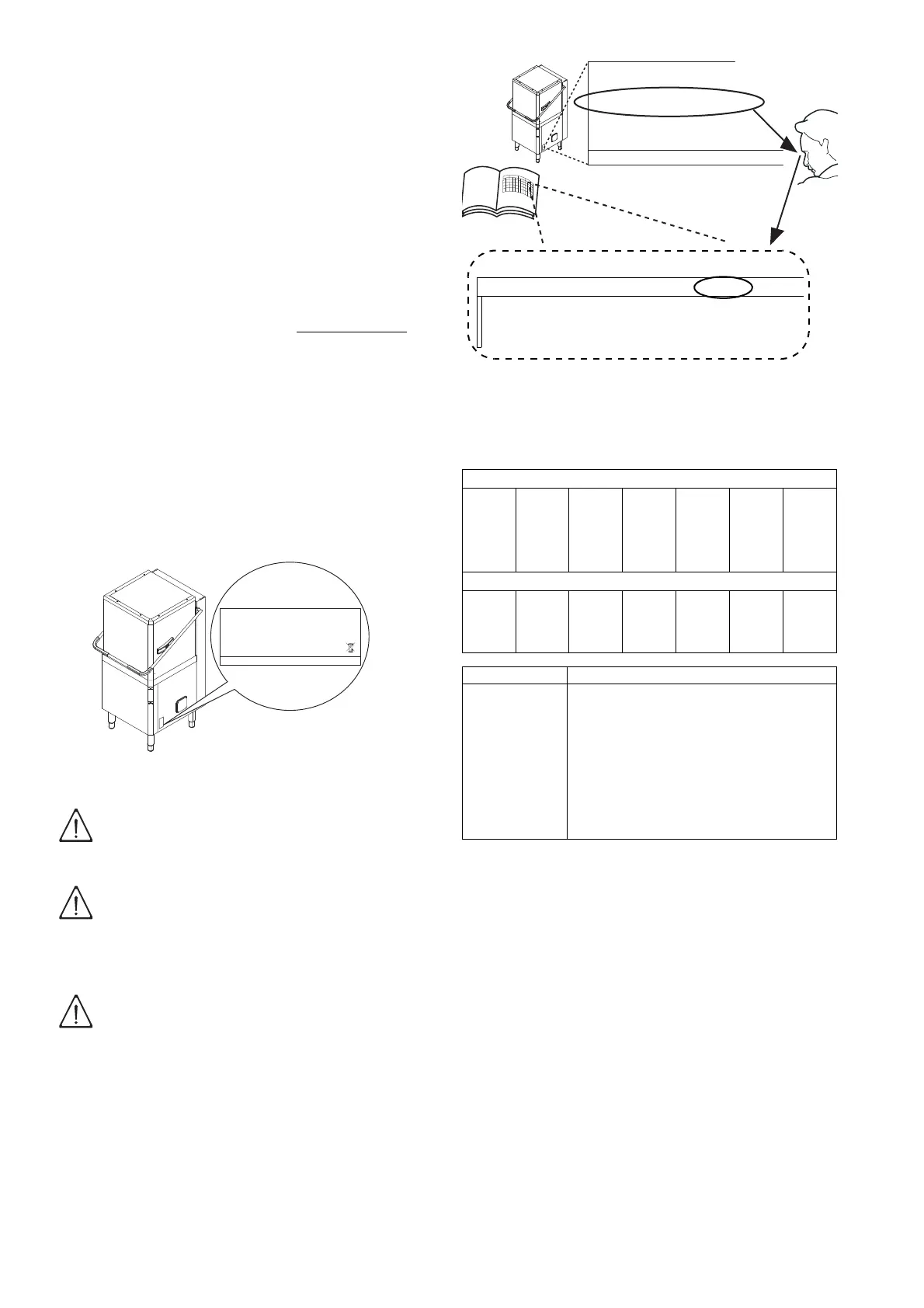

Figure 2 Position of marking
B5 Equipment identification
B5.1 How to identify the technical data
To identify the technical data (Figure 3) read the fac-
tory description of the product (F.Mod.) on the data-
plate, identify the main machine data and consult the
Table 1 “Main technical characteristics, performance
and consumption”.
.
Figure 3 Technical data identification
B5.2 How to interpret the factory description
The factory description on the dataplate has the follow-
ing meaning (some examples are given below):
B6 Copyright
This manual is intended for consultation only by the
operator and can be given to third parties only with the
written permission of Electrolux Professional S.p.A..
F.Mod..................... factory description of the product
Comm. Model........ trade description
PNC....................... production code number
Ser. Nr. ................. serial number
AC 400V 3N ......... power supply voltage
(AC 230 V / 1+N / 50 Hz;
230 V / 3 / 50 Hz)
... electric convertibility
50 Hz..................... power supply frequency
Max 12.9 kW ......... max. power absorbed
Nominal 9.9 kW.....
power absorbed as factory setting
Min 6.9 kW ............
power absorbed with min. supply
water temperature of 65°C/ 149°F
2012 ...................... year of construction
CE ......................... CE marking
IP25....................... protection rating
Electrolux Professional spa - Viale Treviso, 15 -33170
Pordenone (Italy)
..... Manufacturer
WARNING!
Do not remove, tamper with or make
the machine marking illegible.
IMPORTANT!
Refer to the data given on the machine
marking for relations with the Manufac-
turer (e.g. when ordering spare parts,
etc.).
IMPORTANT!
When disposing of the machine the
marking must be destroyed.
2012
F.Mod. EHT8I Comm. Model EHT8I
PNC 9CGX 504259 00 Ser.Nr. 22006001
EL AC 400V 3N 50 Hz Max 12.9 kW
(AC 230 V / 1+N / 50 Hz; 230 V / 3 / 50 Hz )
Nominal 9.9 kW
Min 6.9 kW
Electrolux Professional spa - Viale Treviso, 15 - 33170 Pordenone (Italy)
IP25
Single-skin hood version
(1) (2) (3) (4) (5) (6) (7)
NHT8WSG
EHT8 M
ZHT8 L GUK
Double-skin hood version
(1) (2) (3) (4) (5) (6) (7)
ZHT8 I E L G
EHT8 T I E L
Variables description
(1) Mark N = To brand, Z = Zanussi, K = Kipro, A = Alpeninox,
E = Electrolux, H = Hakpro, KXT = Klumaier X
Tanner
(2) Machine type HT = Hood type
(3) Racks/h 8 = capacity 80 racks/h
(4).. (7) T = automatic, I = double-skin hood, E = Energy
Saving Device, L = De-lime cycle, G = Detergent
pump + rinse aid pump + drain pump, DD =
Detergent pump, WS = Water softener, M = Marine,
USPH = Marine-USPH, 6 = 60 Hz., UK=UK market,
S = Solid detergent.
F.Mod. EHT8I
Electrolux Professional spa - Viale Treviso, 15
D1 Main technical characteristics
MODEL EHT8I
Power supply Electric
Power supply voltage V 400 3N
Frequency Hz 50 or 60
