Parts Information
Model CLR2160
47
CLR2160
Figure 21

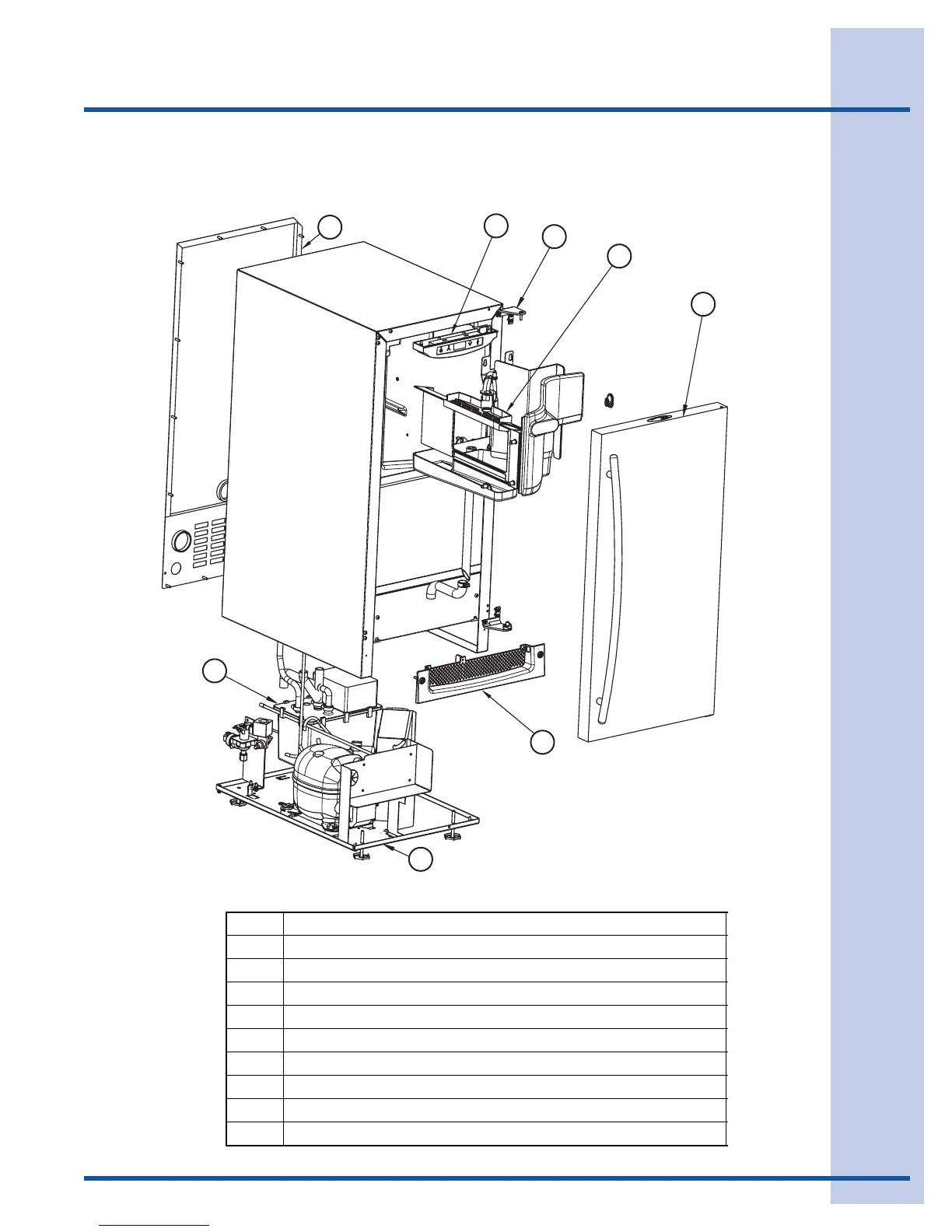

8 Parts Section
Item Description Figure Page
2 INTERIOR, CLR2160 24 51
3 HINGE COMP 25 52
4 DOOR COMPONENTS 25 52
5 BASE ASSY, CLR2160 26 54
6 CONTROL COMPONENTS 22 48
7 BACK PANEL, CLR2160 23 50
8 GRILLE ASSY 25 52
11 WASTE WATER PUMP ASSY 27 55
DRAIN INSTALLATION KIT (U-CLRDRAINKIT) (not shown)
ULIN_S_0047_A
7
6
3
2
4
8
11
5
