Parts Information
56
Model CLR2160

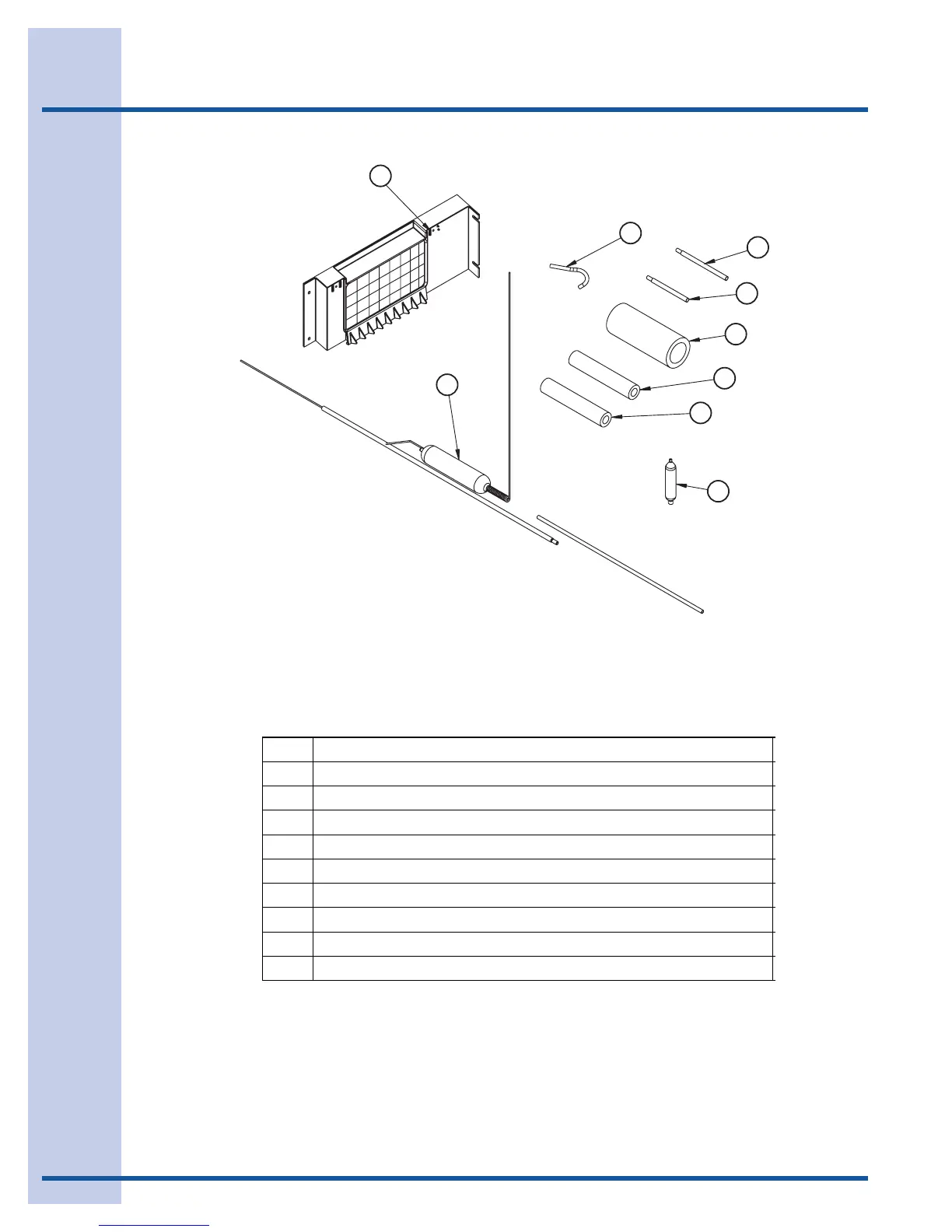

Figure 28
Item Description Part Number
1 EVAPORATOR ASSEMBLY 2276-S
2 HEAT EXCHANGER (included with 2276-S) 2725-S
3 PROCESS TUBE (included with 2276-S) 2819
4 BYPASS TUBE (included with 2276-S) 2836
5 SUCTION TUBE (included with 2276-S) 2837
6 DRYER (included with 2276-S) 2850
7 ARMAFLEX 3/8 ID (included with 2276-S) 31154
8 ARMAFLEX 5/8 ID (included with 2276-S) 31410
9 ARMAFLEX 1 - 5/8 ID (included with 2276-S) 31636
1
3
4
5
9
7
8
6
2
ULIN_S_0077_A
56
Model CLR2160
Figure 28
Item Description Part Number
1 EVAPORATOR ASSEMBLY 2276-S
2 HEAT EXCHANGER (included with 2276-S) 2725-S
3 PROCESS TUBE (included with 2276-S) 2819
4 BYPASS TUBE (included with 2276-S) 2836
5 SUCTION TUBE (included with 2276-S) 2837
6 DRYER (included with 2276-S) 2850
7 ARMAFLEX 3/8 ID (included with 2276-S) 31154
8 ARMAFLEX 5/8 ID (included with 2276-S) 31410
9 ARMAFLEX 1 - 5/8 ID (included with 2276-S) 31636
1
3
4
5
9
7
8
6
2
ULIN_S_0077_A
