Electrolux EI24ID50QS - Wash Pump with Integrated Heater

23

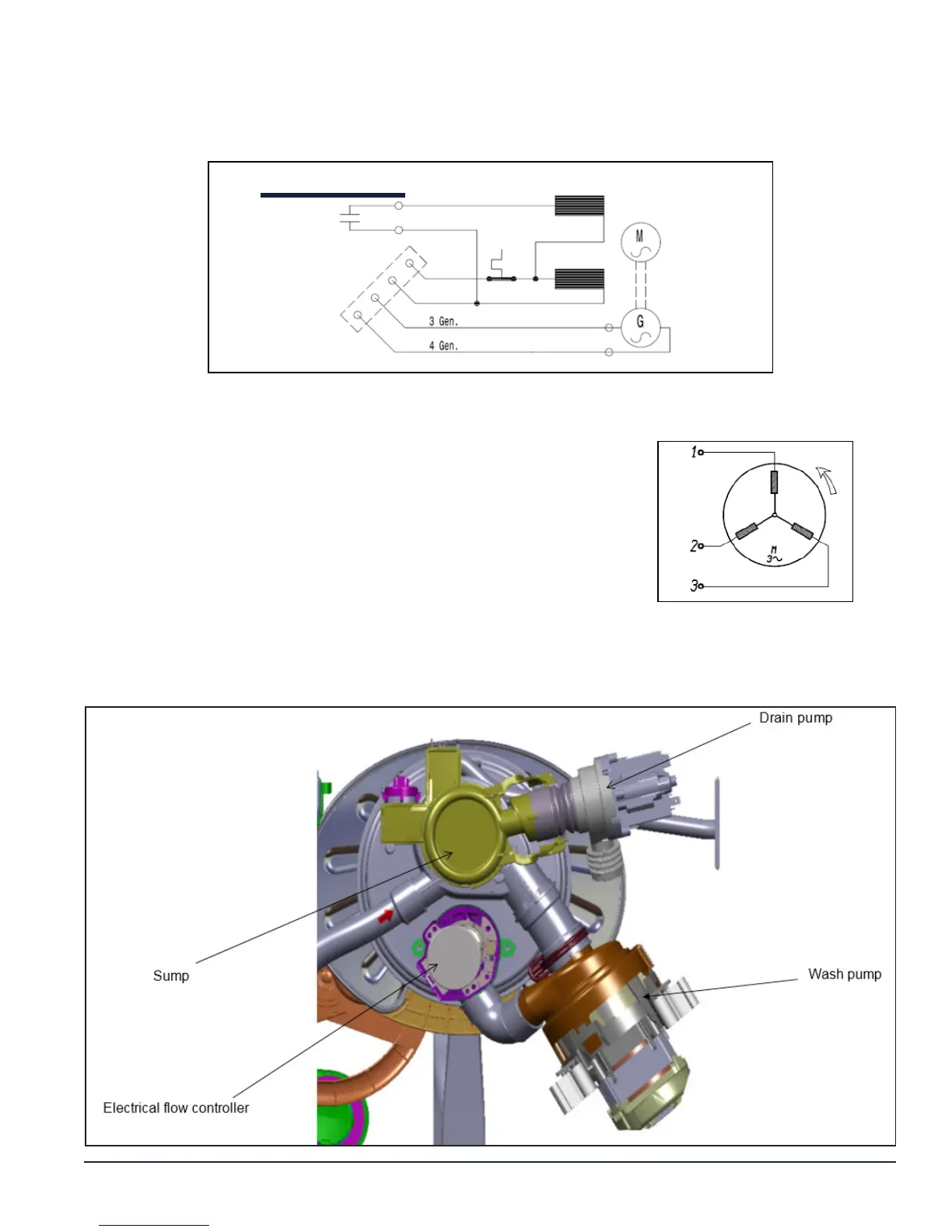

Single Phase Asynchronous Washing Pump Motor with FD
Three Phase Washing Pump BLDC Motor with FC
• Electrical detail
• 0-110 V 0-60 Hz Class F
• Resistance: 1-2: 56 ohms/2-3: 56 ohms/3-1: 56 ohms
Connection - Plan
BROWN
BLUE
1 WHITE
2 BROWN
AUX
MAIN
5.10 Wash Pump with Integrated Heater
