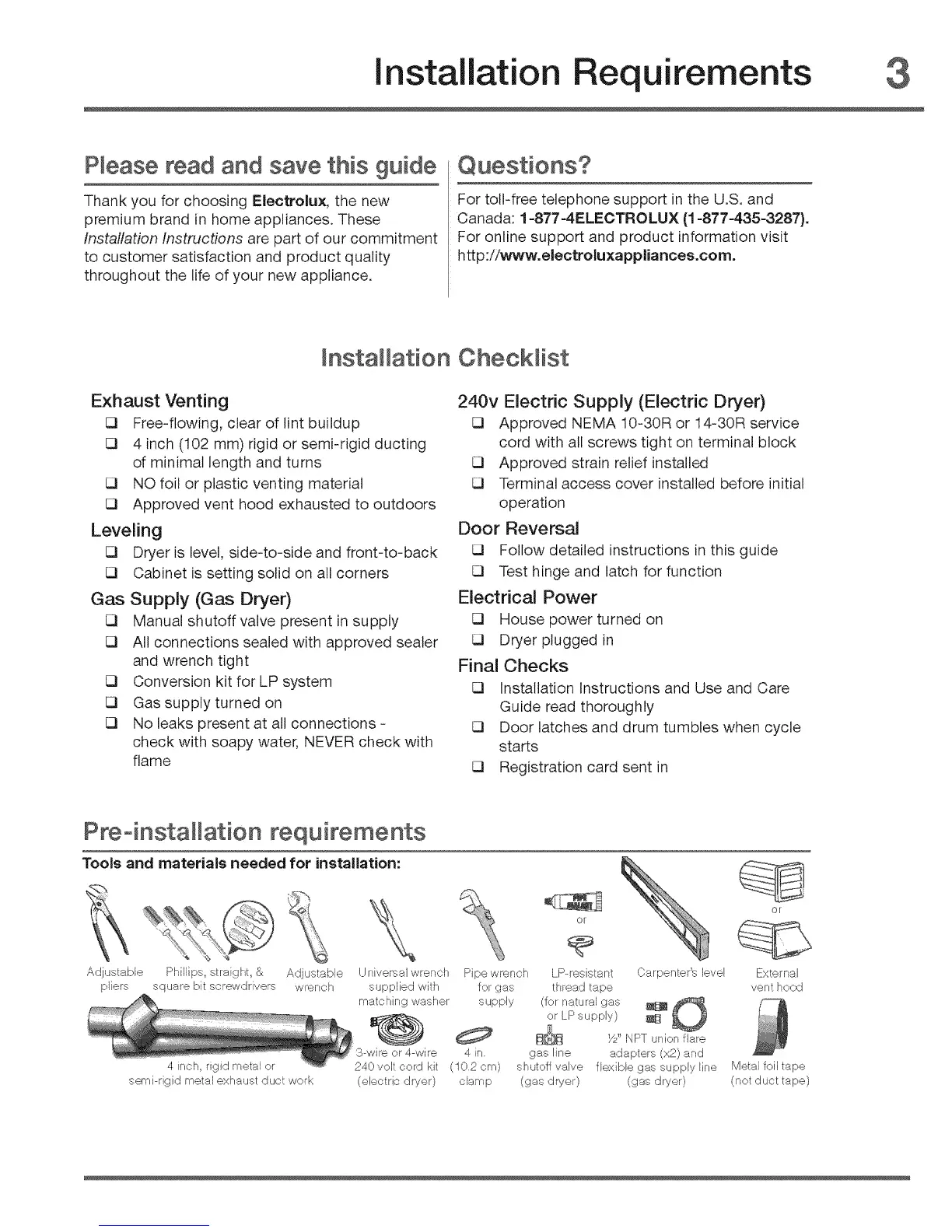

Installation Requirements 3
Please read and save this guide
Thank you for choosing Eiectrolux, the new
premium brand in home appliances. These
Installation Instructions are part of our commitment
to customer satisfaction and product quality
throughout the life of your new appliance.
For toll-free telephone support in the U.S. and
Canada: 1-877-4ELECTROLUX (1-877-435-3287).
For online support and product information visit
http:/iwww.electroluxappliances.com.
lnstaJmation Checklist
Exhaust Venting
[] Free-flowing, clear of lint buildup
[] 4 inch (102 mm) rigid or semi=rigid ducting
of minimal length and turns
[] NO foil or plastic venting material
[] Approved vent hood exhausted to outdoors
Leveling
r] Dryer is level, side-to-side and front-to-back
[] Cabinet is setting solid on all corners
Gas Supply (Gas Dryer)
I_1 Manual shutoff valve present in supply
[] All connections sealed with approved sealer
and wrench tight
[] Conversion kit for LP system
r] Gas supply turned on
[] No leaks present at all connections -
check with soapy water, NEVER check with
flame
240v Electric Supply (Electric Dryer)
[] Approved NEMA 10-30R or 14-30R service
cord with all screws tight on terminal block
[] Approved strain relief installed
[] Terminal access cover installed before initial
operation
Door Reversal
[] Follow detailed instructions in this guide
Cl Test hinge and latch for function
Electrical Power
[] House power turned on
[] Dryer plugged in
Final Checks
[] Installation Instructions and Use and Care
Guide read thoroughly
[] Door latches and drum tumbles when cycle
starts
[] Registration card sent in
Pre4nstaHation requirements
Tools and materials needed for installation:
tt_5_ "
,¢ ,% -¢
Adjustak le Phillips, straight, & Adjustable
pliers square bit screwdrivers wrenc, h
4 inch, rigid metal or
semi-rigid metal exhaust duct work
Universal wrench Pipewrench LP-resJstant Carpenter's bvel
supplied with for gas thread tape
matching washer supply (for natural gas _
or LP supply) _Et
_ Y/' NPT union flare
or 4-wire 4 in. gas line adapters (x2) and
240volt cord kit (10.2 ore) shutoff valve flexible gas supply line
(electric dryer) clamp (gas dryer) (gas dryer)
ar
External
vent hood
Metal foil tape
(net duct tape)
To Next Page
