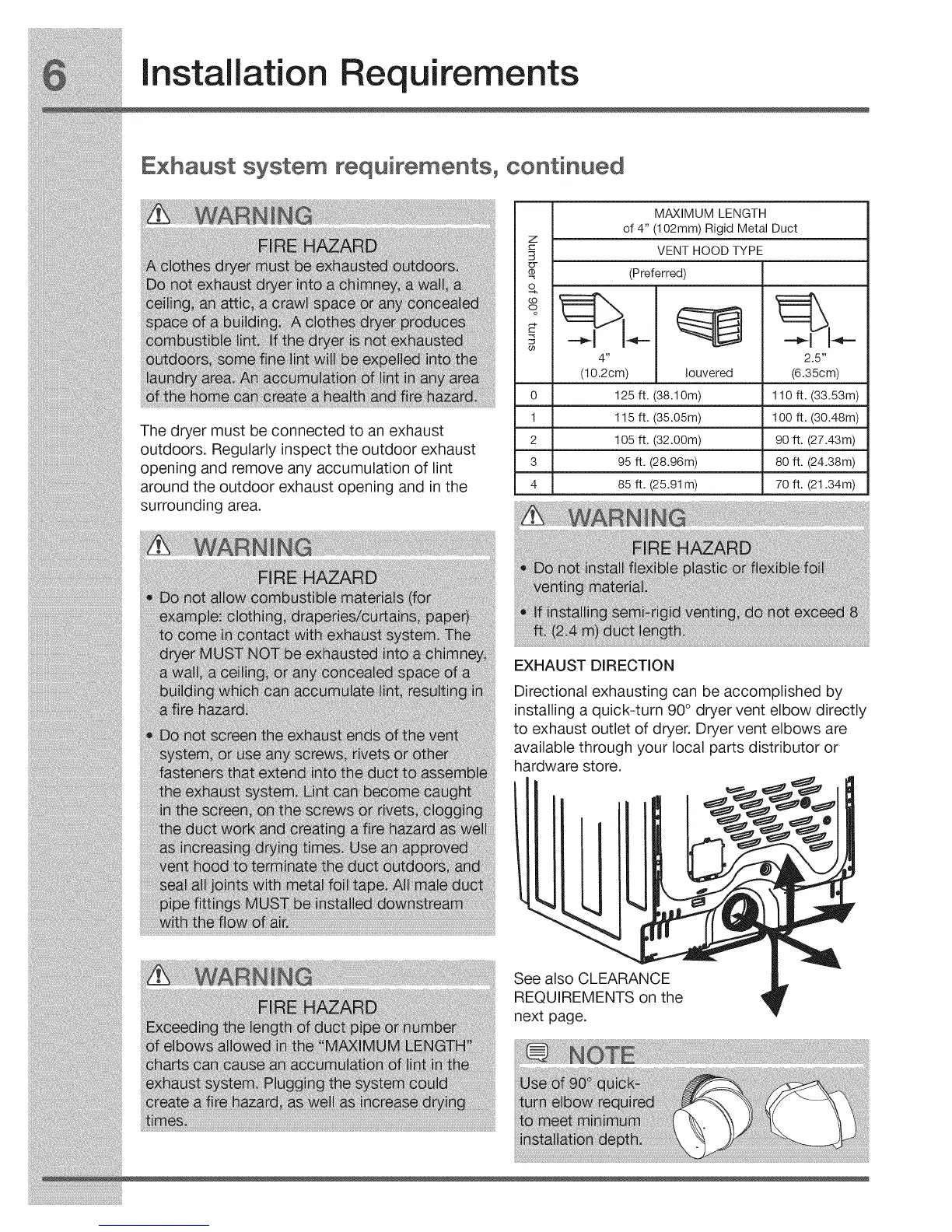

Installation Requirements
Exhaust system requirements, continued
The dryer must be connected to an exhaust
outdoors. Regularly inspect the outdoor exhaust
opening and remove any accumulation of lint
around the outdoor exhaust opening and in the
surrounding area.
0
1
2
3
4
MAXIMUM LENGTH
of 4" (102mm) Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4"
(10.2cm) Iouvered
125 ft. (38.10m)
115 ft. (35.05m)
105 ft. (32.00m)
95 ft. (28.96m)
85 ft. (25.91 m)
2.5"
(6.35cm)
110 ft. (33.53m)
100 ft. (30.48m)
90 ft. (27.43m)
80 ft. (24.38m)
70 ft. (21.34m)
EXHAUST DIRECTION
Directional exhausting can be accomplished by
installing a quick-turn 90° dryer vent elbow directly
to exhaust outlet of dryer. Dryer vent elbows are
available through your local parts distributor or
hardware store.
See also CLEARANCE
REQUIREMENTS on the
next page.
To Next Page
