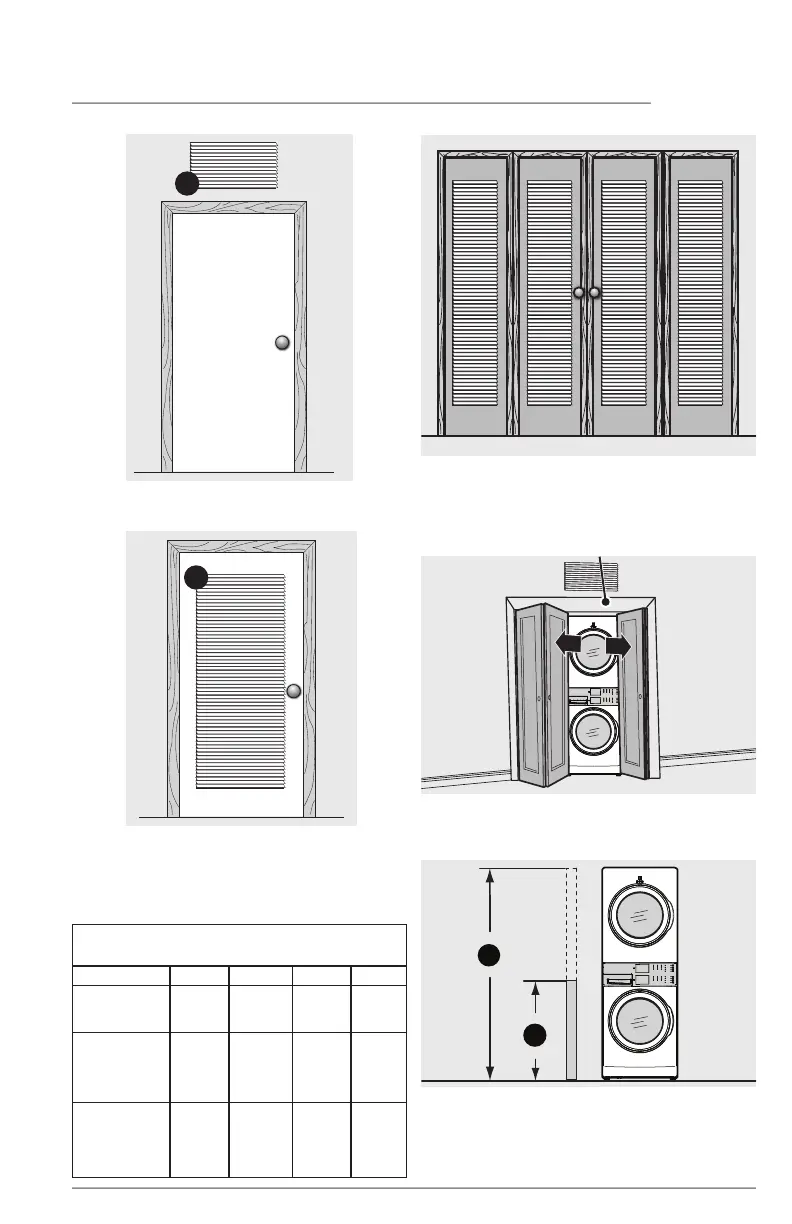

PREINSTALLATION REQUIREMENTS
2. Solid Door with 120 sq Wall Ventilation
2
3. Louvered Door with 120 sq. Inches min.
Louvered Opening
3
MIN. INSTALLATION CLEARANCES -
Inches (cm)
Sides Rear Top Front
Alcove/
recess
0"
(0 cm)
0"
(0 cm)
0"
(0 cm)
Open
Closet with
door vent
0"
(0 cm)
0"
(0 cm)
0"
(0 cm)
1"
(2.5 cm)
Closet with
wall vent
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
1
2
Bi-Fold louvered doors with 120 sq. in of
ventilation
Solid Bi-Fold doors with no ventilation requires
door open for 120 sq. Inches of wall venting
120 sq. Inches of wall venting
1. 96” (244cm) max.
2. 24” (61 cm) min.
