Electrolux EMB2527BA - Built-in Proud Fit Installation

15

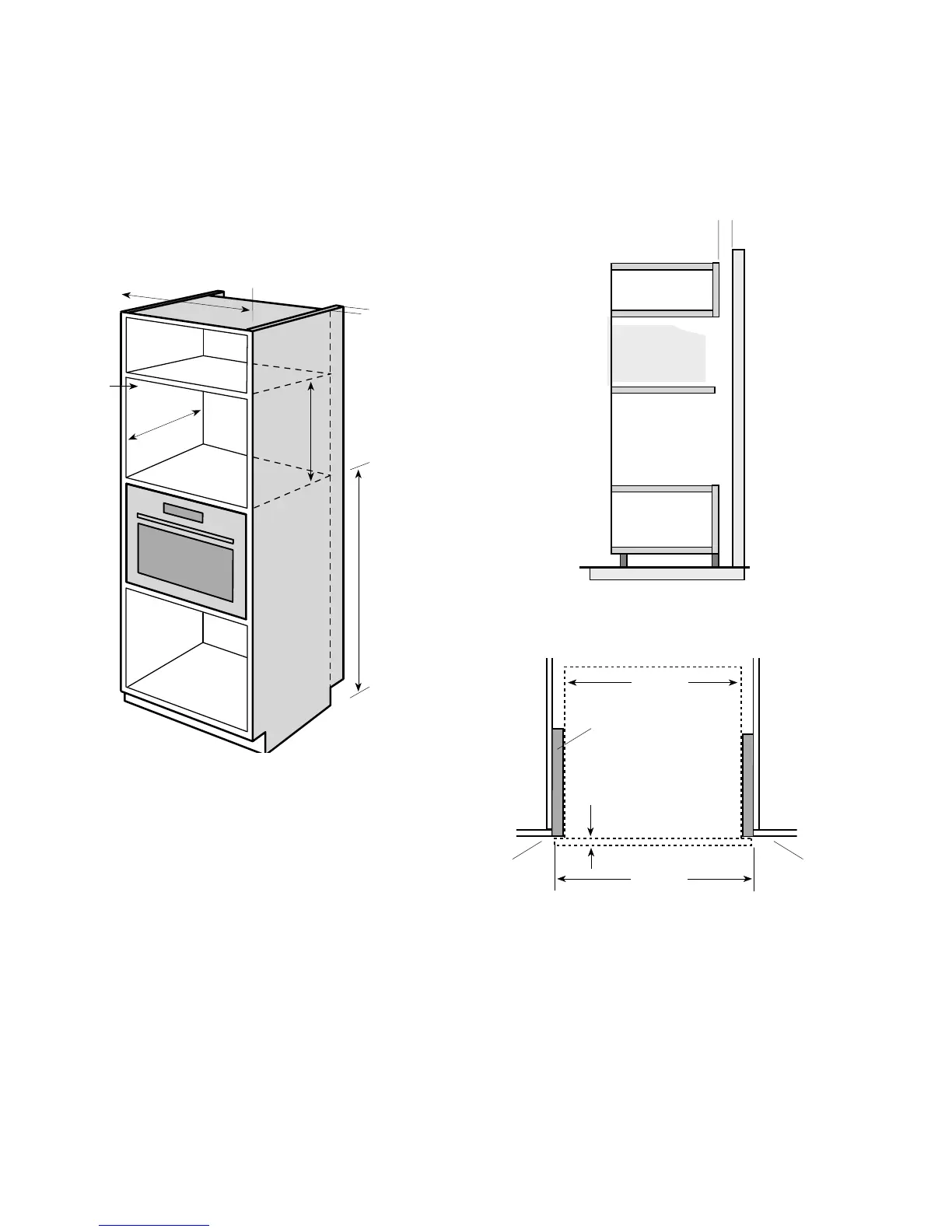

INSTALLATION OF EMB2527BA (CONTINUED)
A 45mm ventilation gap must be left between the built-in
cabinetry and wall with no back panelling on the cabinet
housing the microwave oven.
45mm
Microwave
oven
Side view
Proud fit top view
infill panel (not
recessed back from front
of cabinet)
20mm
565mm
Cupboard
door
Cupboard
door
600mm
Built-in furniture – proud fit
The built-in cabinet must not have a rear wall behind the
appliance and must have a minimum installation height of
850mm. Do not cover ventilation slots and air intake points.
NOTE: Your appliance must be mounted on a flat surface
for the full width and depth of the product.
Min. 850mm
from floor
to base of
microwave
oven.
600mm
380mm
(+2)
min.
550mm
45mm
