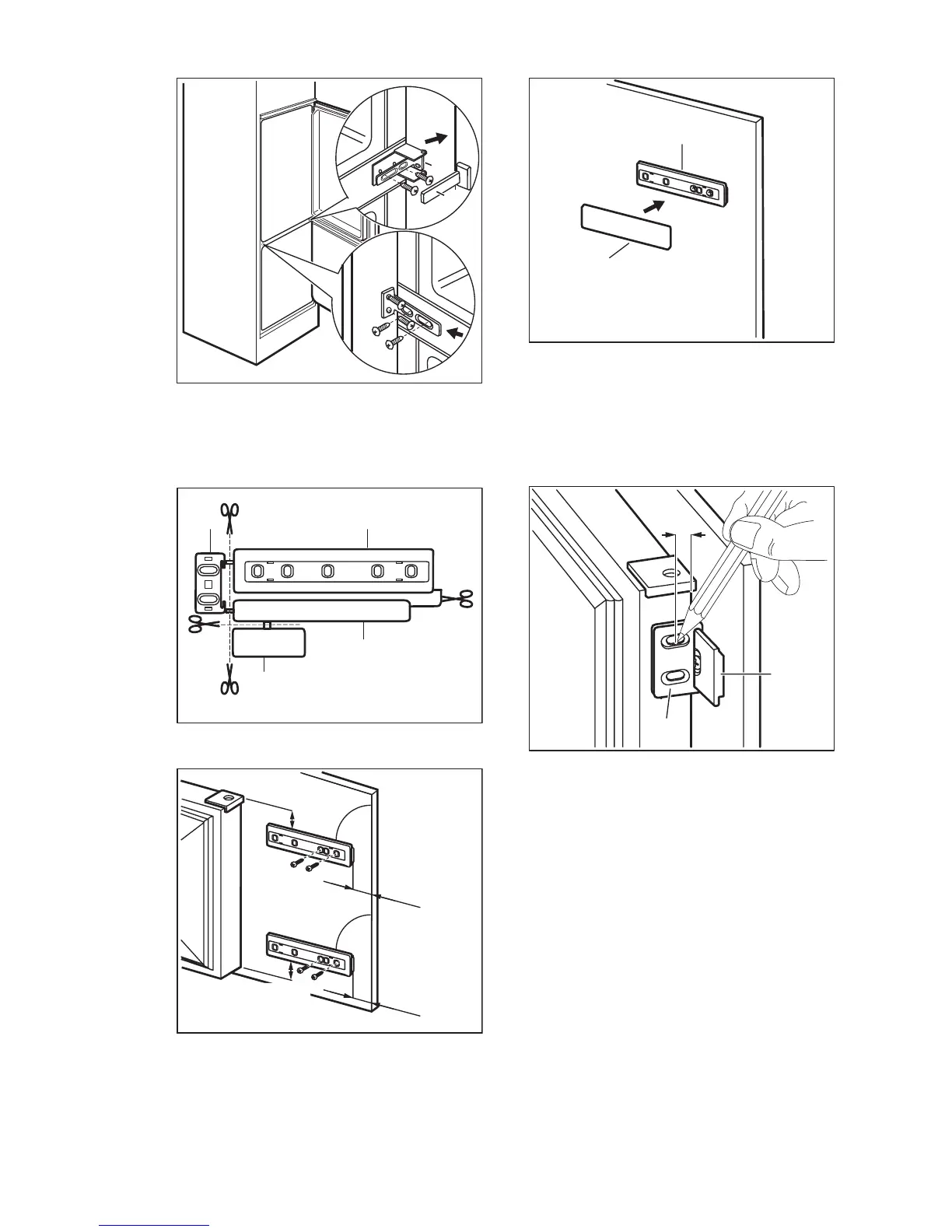

14. Tighten the screws of the part (G)
again.
15. Attach the part (H) to the part (G).
16. Disconnect the parts (Ha), (Hb), (Hc)
and (Hd).
17. Install the part (Ha) on the inner side of
the kitchen furniture.
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
18. Push the part (Hc) on the part (Ha).
19. Open the appliance door and the
kitchen furniture door at an angle of
90°.
20. Insert the small square (Hb) into guide
(Ha).
21. Put together the appliance door and
the furniture door and mark the holes.
22. Remove the brackets and mark a
distance of 8 mm from the outer edge
of the door where the nail must be
fitted (K).
ENGLISH
17
