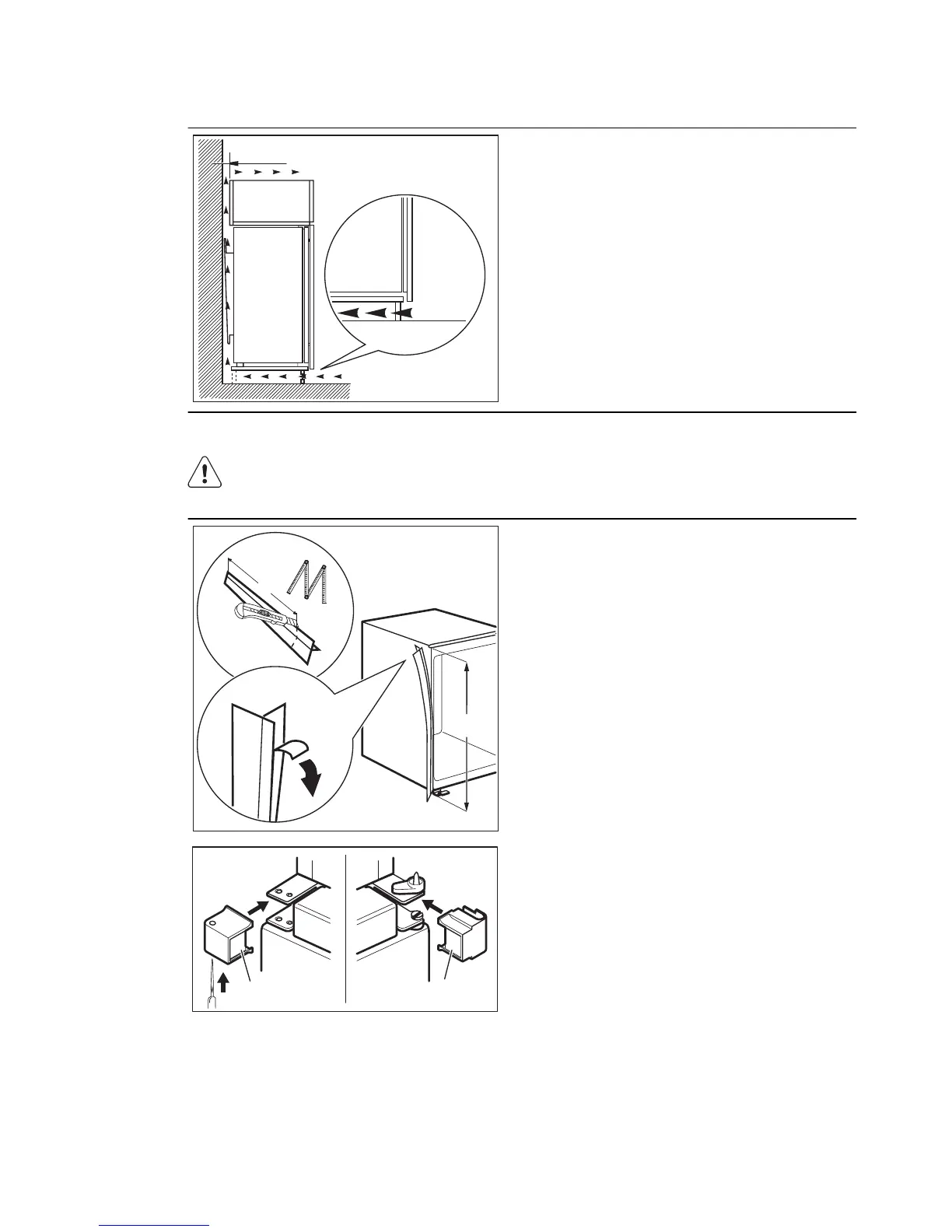

VENTILATION REQUIREMENTS
5 cm
min.
200 cm
2
min.
200 cm
2
The airflow behind the appliance must be
sufficient.
INSTALLING THE APPLIANCE
CAUTION!
Make sure that the mains cable
can move freely.
Do these steps.
x
x
If necessary cut the adhesive sealing strip
and then apply it to the appliance as shown
in figure.
A1A
Drill the hinge cover A, as shown in figure.
Apply the covers A and A1 (in the accesso-
ries bag) in to the middle hinge.
ENGLISH 17
