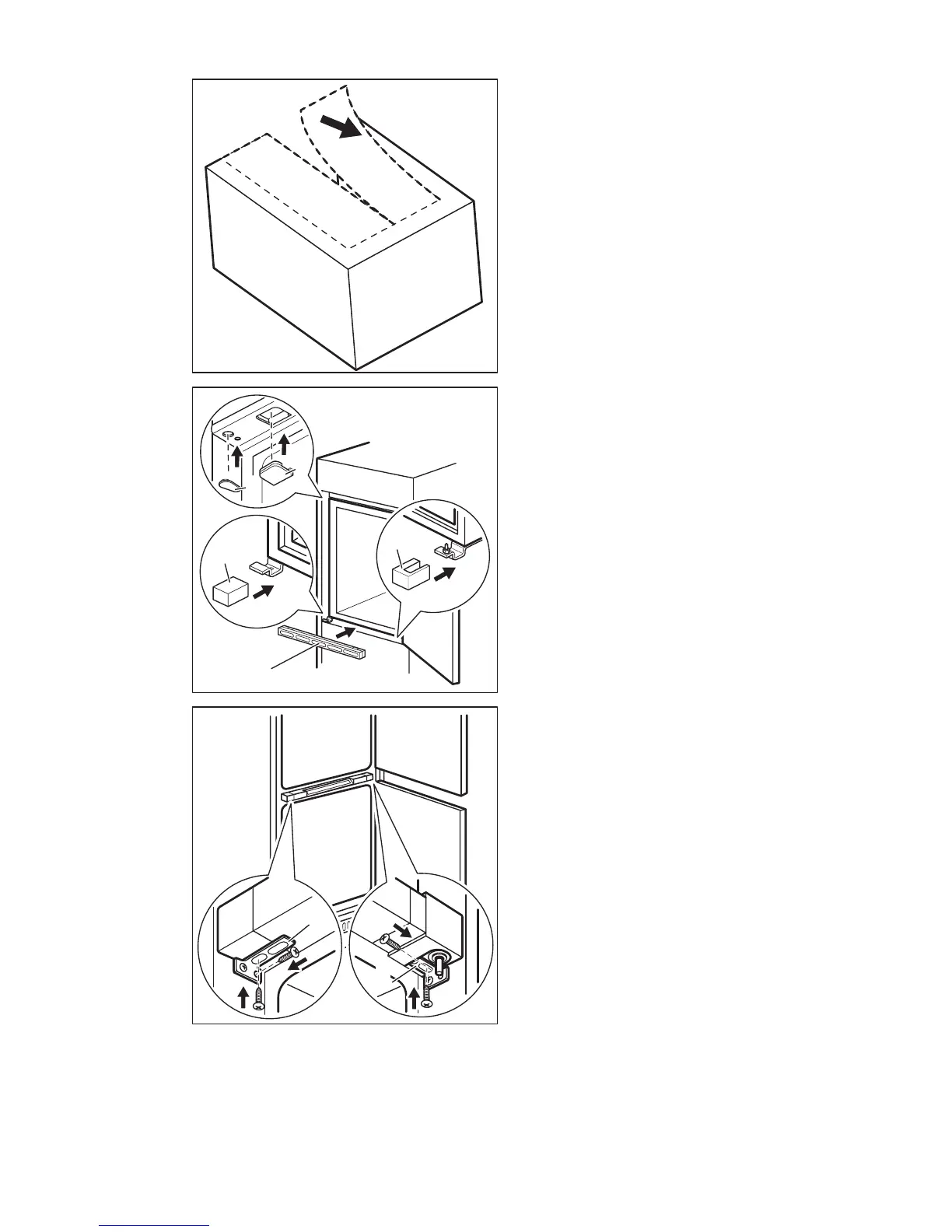

Remove the correct part from the hinge cov-
er (E). Make sure to remove the part DX, in
the case of right hinge, SX in opposite case.
E
E
B
D
C
Attach the covers (C, D) to the lugs and the
hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
H
H
If the appliance must connect laterally to the
kitchen furniture door:
1.
Slacken the screws in fixing brackets
(H).
2.
Move the brackets (H).
3.
Retighten the screws.
ENGLISH 19
