- 32 -
Spares Operation 08.01 A. B. 599 51 19 69 EN
8. Technical information / wiring diagrams

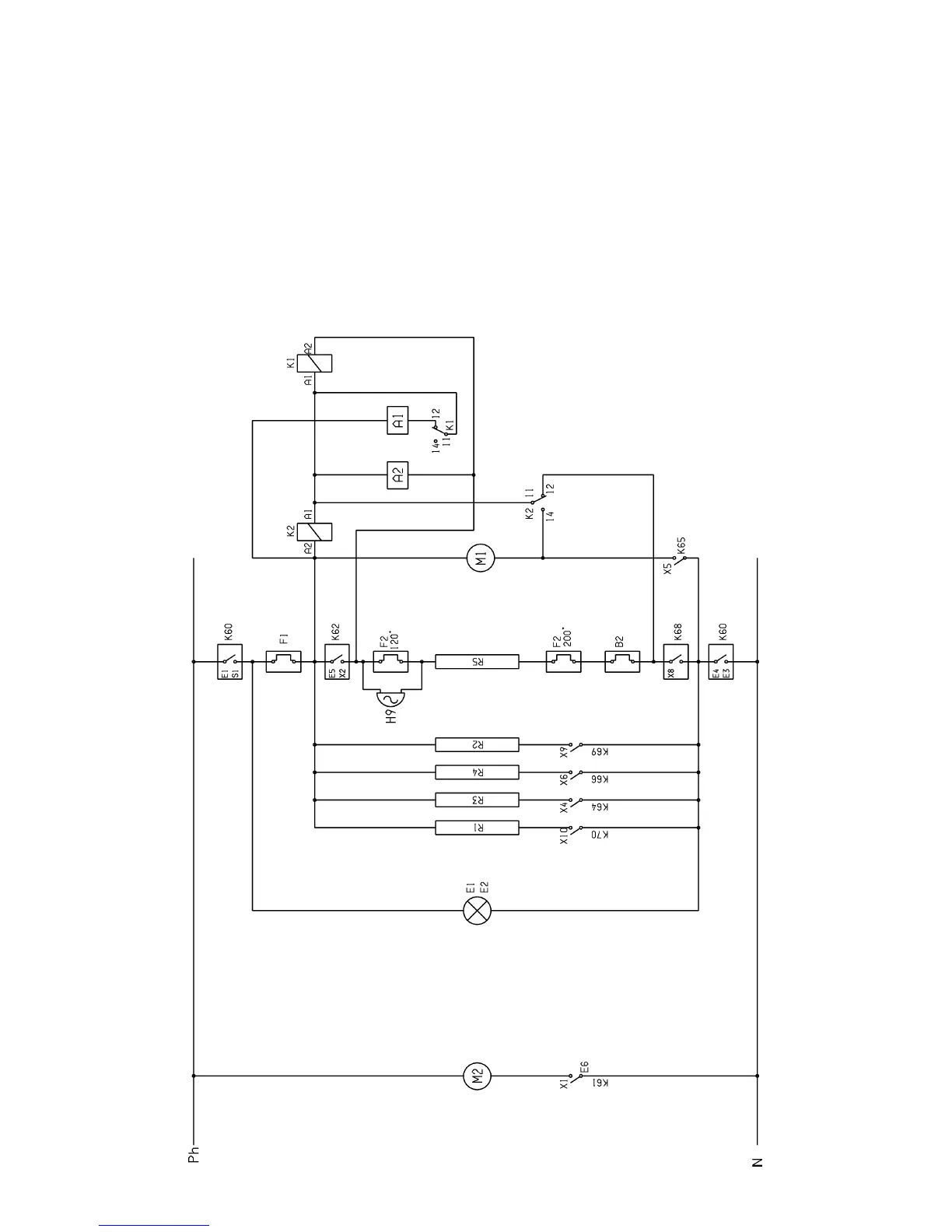

8.1 Electrolux Therma, 230 V, without drawer heating
Legend A1 actuator, devaporization A2 actuator, water vapor
vent
B2 steam thermostat E1 oven light, back E2 oven light, side F1 protective temperature
limiter
F2 120 °C limiter F2 200 °C limiter H9 buzzer K1 relay K2 relay M1 circulation motor M2 cooling fan R1 upper heat R2 lower heat R3 grill heating element R4 ring heating element R5 steam generator WOEC K60 main contactor K61 relay for cooling fan K62 steam relay K64 relay for grill heating
element
K65 relay for circulation motor K66 relay for ring heating
element
K68 steam relay K69 relay for upper heat K70 relay for lower heat
8. Technical information / wiring diagrams
8.1 Electrolux Therma, 230 V, without drawer heating
