- 33 -
Spares Operation 08.01 A. B. 599 51 19 69 EN

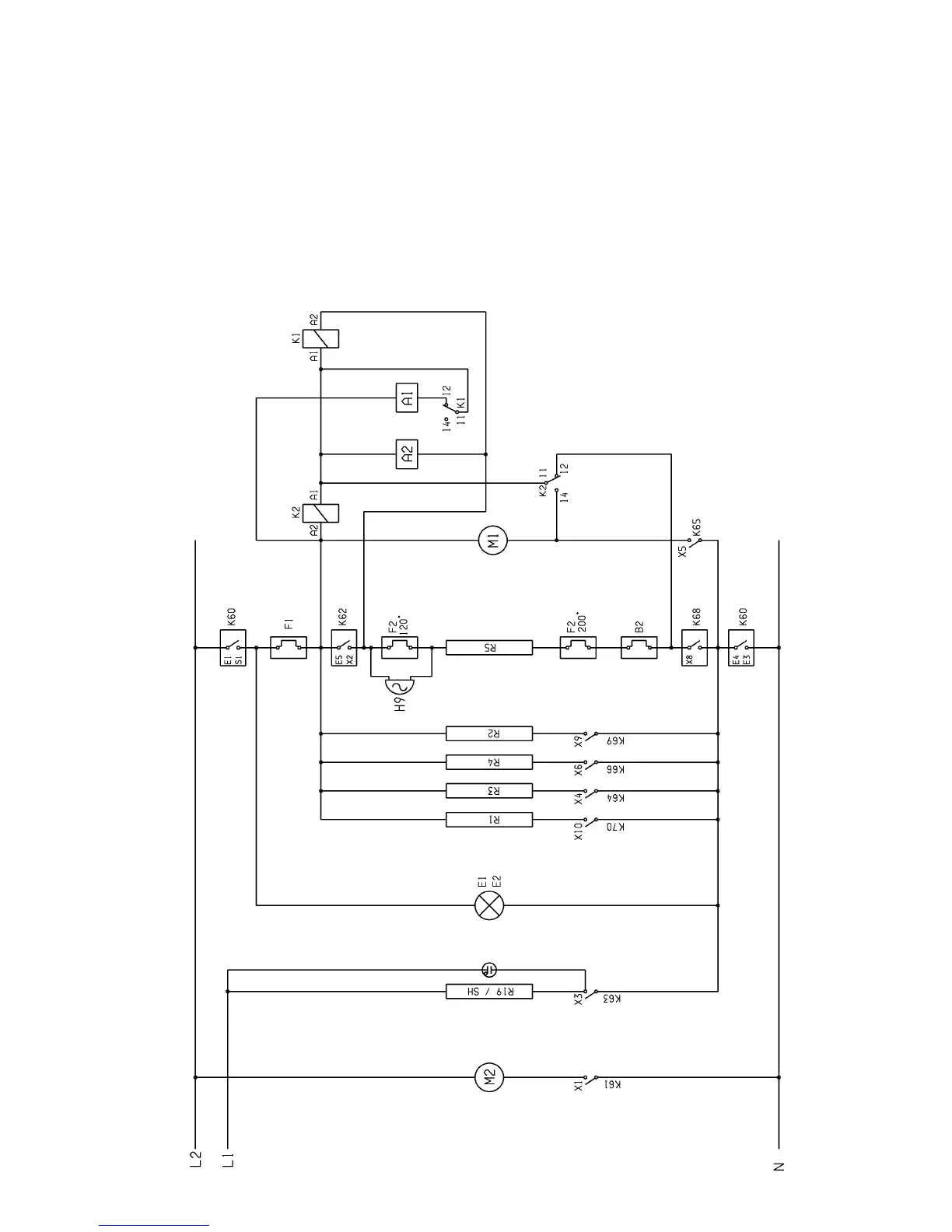

8.2 Electrolux Therma, 230 V, with drawer heating
Legend
A1 actuator, devaporization
A2 actuator, water vapor vent
B2 steam thermostat
E1 oven light, back
E2 oven light, side
F1 protective temperature limiter
F2 120 °C limiter
F2 200 °C limiter
H9 buzzer
K1 relay
K2 relay
M1 circulation motor
M2 cooling fan
R1 upper heat
R2 lower heat
R3 grill heating element
R4 ring heating element
R5 steam generator
WOEC
K60 main contactor
K61 relay for cooling fan
K62 steam relay
K63 relay for drawer heating
K64 relay for grill heating element
K65 relay for circulation motor
K66 relay for ring heating element
K68 steam relay
K69 relay for upper heat
K70 relay for lower heat
