4. Component data
4.1 The electronic oven control (WOEC control unit)

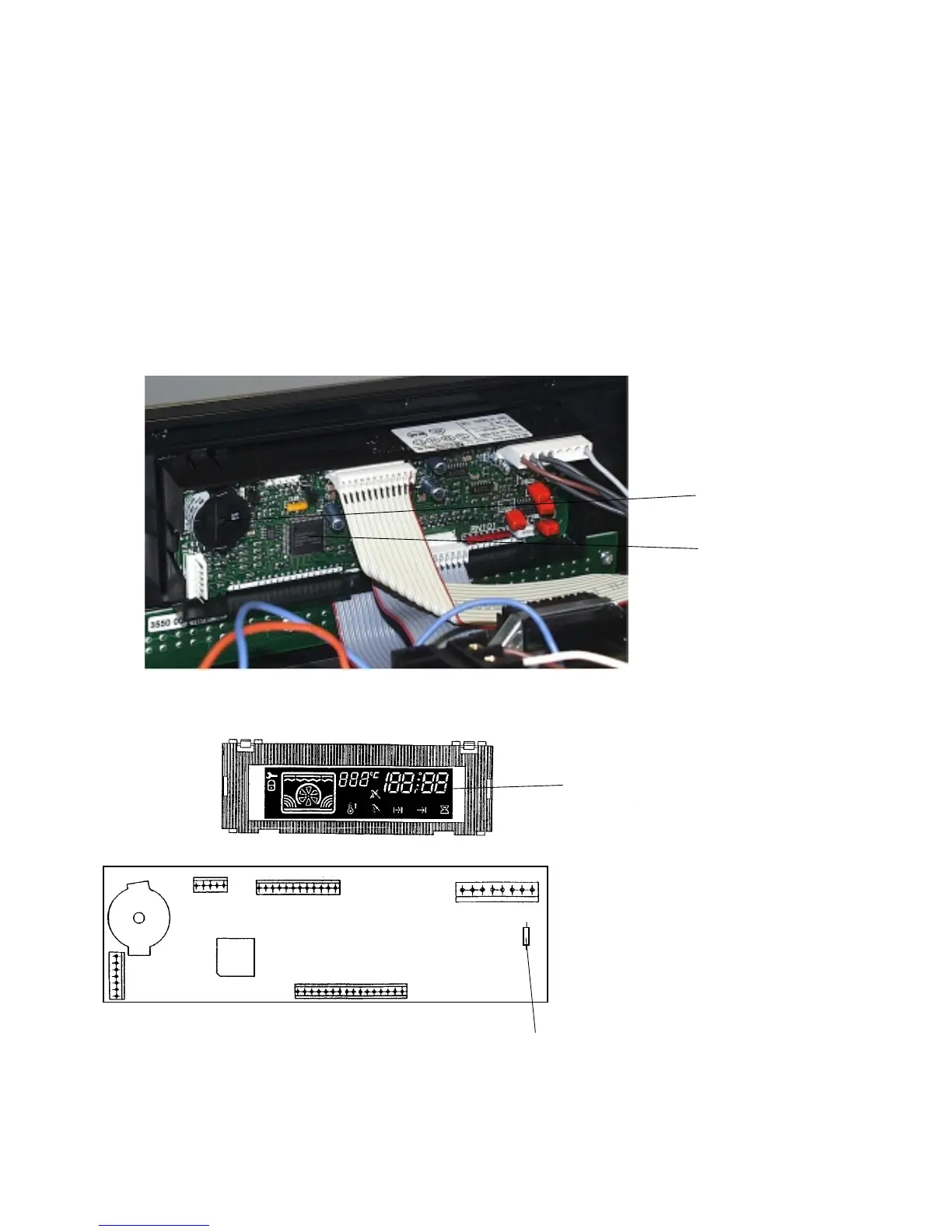

The WOEC central unit consists mainly of display, buzzer, temperature limiter /thermostat ? and
microprocessor.
This control, which
o regulates the set temperature via the oven sensor,
o possibly switches off the food thermometer,
o is set by the two bit generators and the short-stroke keys,
selects the relay board.
buzzer
microprocessor
display
Temperature limiter (colour red)
temp. >= 105 °C oven switches off
temp. >= 85 °C cooling fan switches on
temp. <= 80 °C cooling fan switches off
