electrolux
installation
33
•

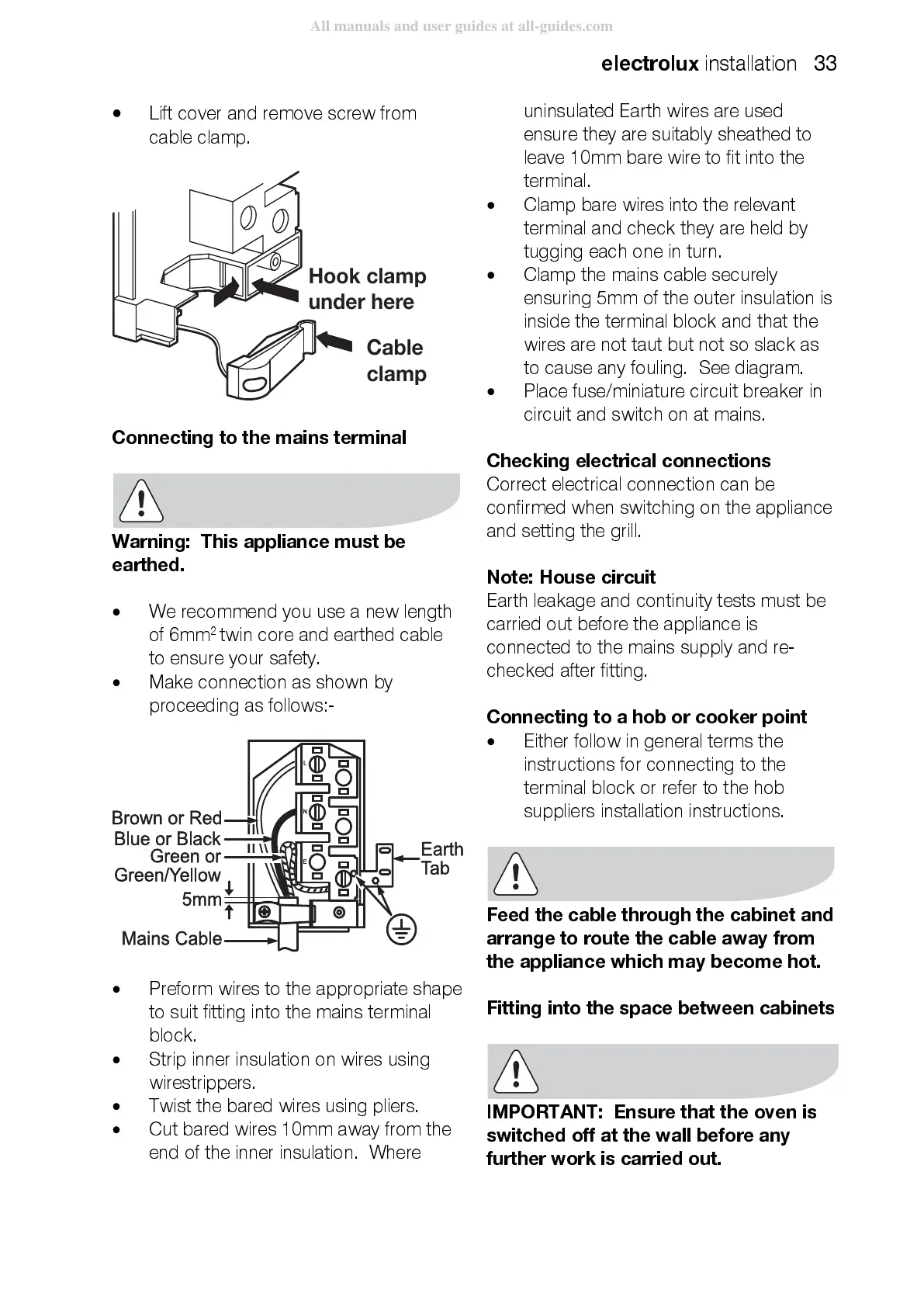

Lift cover and remove screw from
cable clamp.
Hook clamp
under here
Cable
clamp
Connecting to the mains terminal
Warning: This appliance must be
earthed.
•
We recommend you use a new length
of 6mm
2
twin core and earthed cable
to ensure your safety.
•
Make connection as shown by
proceeding as follows:-
•
Preform wires to the appropriate shape
to suit fitting into the mains terminal
block.
•
Strip inner insulation on wires using
wirestrippers.
•
Twist the bared wires using pliers.
•
Cut bared wires 10mm away from the
end of the inner insulation. Where
uninsulated Earth wires are used
ensure they are suitably sheathed to
leave 10mm bare wire to fit into the
terminal.
•
Clamp bare wires into the relevant
terminal and check they are held by
tugging each one in turn.
•
Clamp the mains cable securely
ensuring 5mm of the outer insulation is
inside the terminal block and that the
wires are not taut but not so slack as
to cause any fouling. See diagram.
•
Place fuse/miniature circuit breaker in
circuit and switch on at mains.
Checking electrical connections
Correct electrical connection can be
confirmed when switching on the appliance
and setting the grill.
Note: House circuit
Earth leakage and continuity tests must be
carried out before the appliance is
connected to the mains supply and re-
checked after fitting.
Connecting to a hob or cooker point
•
Either follow in general terms the
instructions for connecting to the
terminal block or refer to the hob
suppliers installation instructions.
Feed the cable through the cabinet and
arrange to route the cable away from
the appliance which may become hot.
Fitting into the space between cabinets
IMPORTANT: Ensure that the oven is
switched off at the wall before any
further work is carried out.
