6. Reinstall the handle.
NOTE
r© #HECK©FOR©FREE©SPACE©BETWEEN©THE©
connection and the lock positions.
CAUTION
r© /PEN©THE©STEM©OF©THE©PACKED©VALVE©
until it hits against the stopper. Do not
try to open it further. Close the stem
of the packed valve with a special
tool. Close the cap of the packed
valve with a spanner.
NOTE
The outdoor unit has two outlets, the
low side outlet and the high side outlet.
Only the low side outlet contains a
charging port. The low side outlet is
shown below.

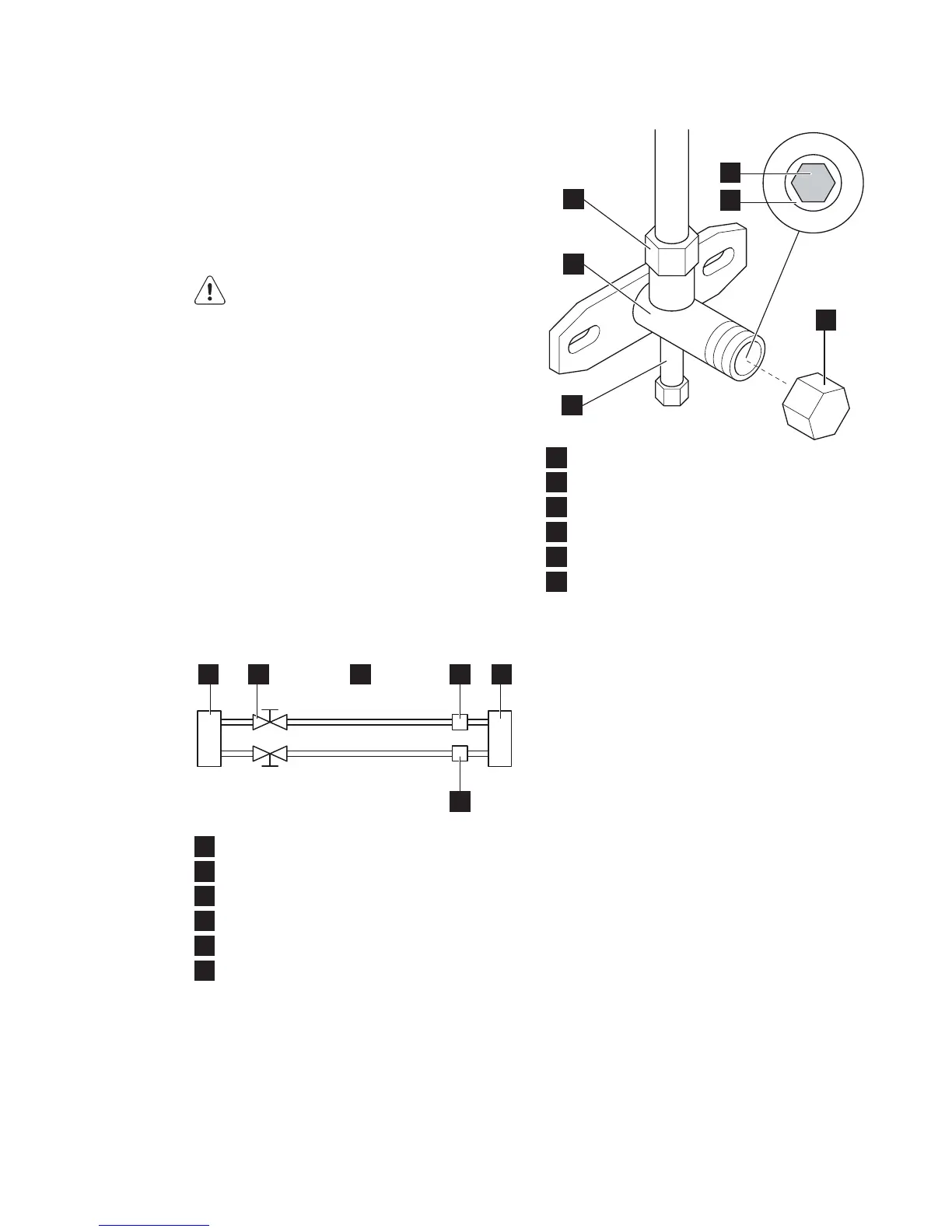

2 5 4 1
12 35 4
6
1
Indoor unit
2
Outdoor unit
3
Refrigerant
4
Gas
5
Packed valve
6
Half union
6
5
1
1
2
3
5
4
6
1
Valve body
2
Valve stem
3
Charge port
4
Stopper
5
Flare nut
6
Cap
