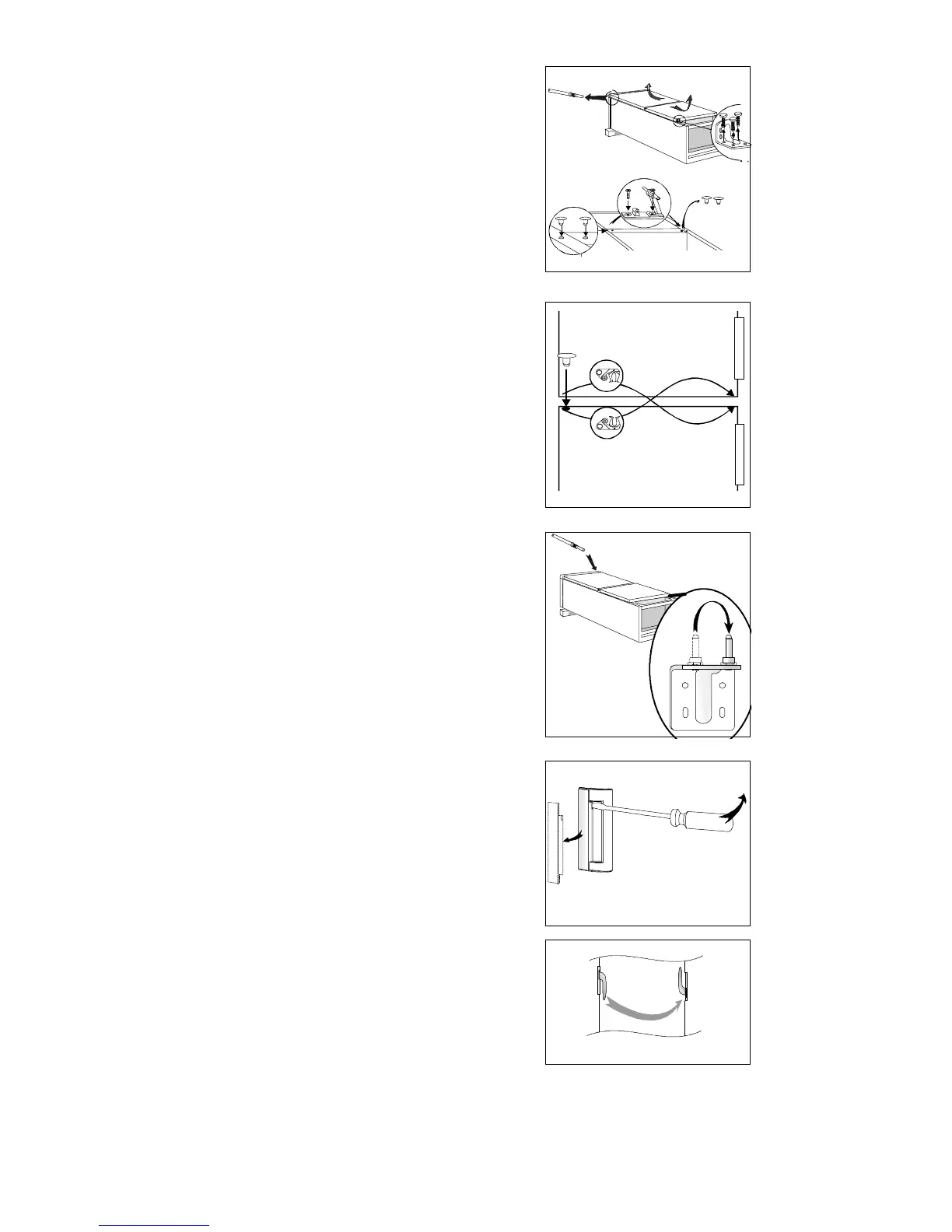

4. Unscrew the lower hinge and remove the lower
door. Unscrew the upper hinge pin and remove the
upper door.
5. On the centre beam:
Remove the plastic plugs by driving a drift into them
and rocking them loose.
Move the centre hinge unit to the other side. Flatten
the threads in the holes remaining from the hinges
and insert new plastic plugs.
6. On the doors: Change the positions of the door
fittings. Put a new plug in the hole on the lower
door.
7. Replace the upper door and secure the upper hinge
pin.
Replace the lower door. Change the position of the
hinge pin of the lower hinge. Then secure the hinge.
8. Raise the cabinet and replace the ventilation grille.
Model E R9013B
9. Move the handle.
Remove the cover washer from the handle.
Unscrew the handle. C arefully press in the plastic
plugs on the opposite side using a drift. Secure the
handle in the plug holes. Then press the supplied
plastic plugs into the holes to which the handle was
previously fitted.
Replace the cover washer on the handle.
Model E R9012B
9. To transfer the handle.
Unscrew the screws. Fit the handle onto the opposite
side by turning it one half circle. Press the supplied
plastic plugs into the holes to which the handle was
previously fitted.
10. Put the cabinet in position. Check that it stands
straight. See the section "Positioning the cabinet".
Electrical connection
Connect the cabinet to a grounded electrical outlet.
Voltage: 230 V.
Fuse: 10 A.
Refer to the rating plate on the left inside the
cabinet.
