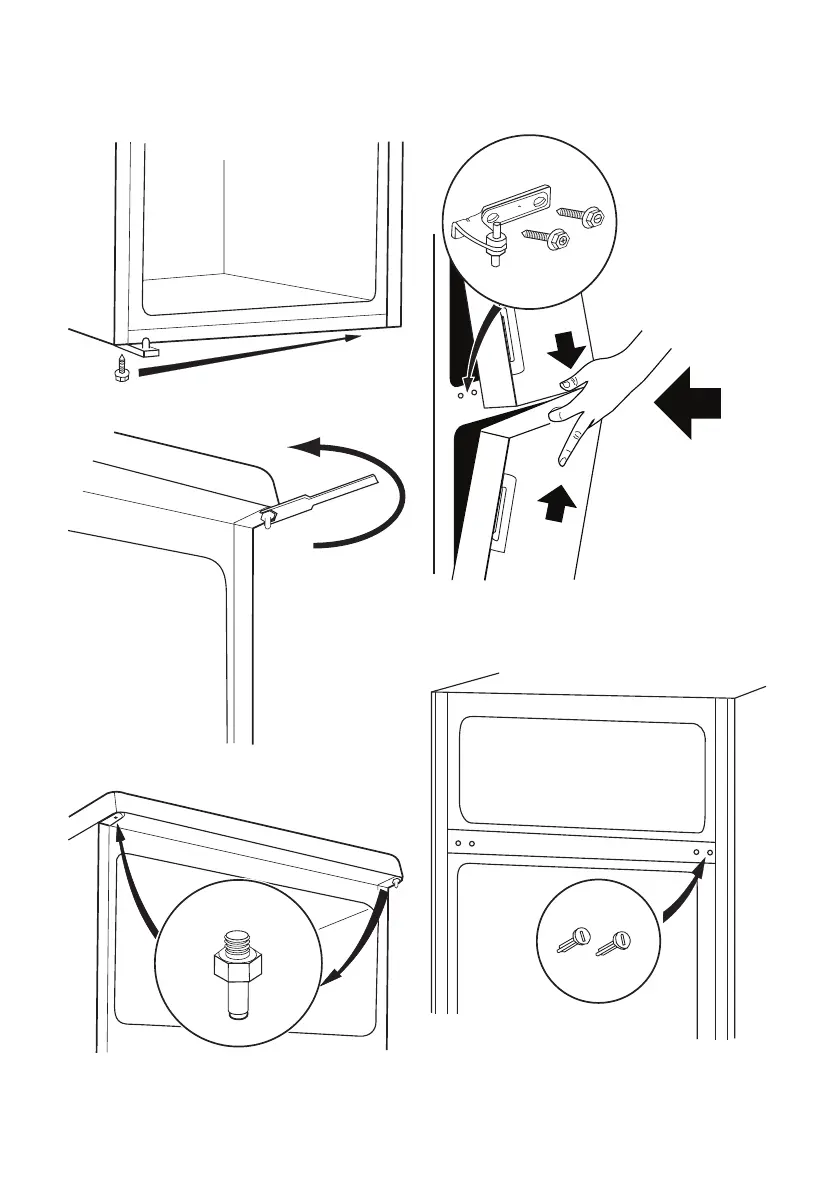

6. Unscrew the bottom far side screw and
install on the opposite side.
7. Unscrew the top door holding pin.
8. Screw the pin back on the other side.
9. Fit the doors into the pins and install
the doors. Install the hinge.
3
2
1
10. On the opposite site install the hole
covers.
11. Tighten the hinge. Make sure that the
doors are aligned.
electrolux 27
