Electrolux ERF2500 - AC Output Component Test; Digital Output Component Test

SOE/TD - PR 6/8 599 73 16-18

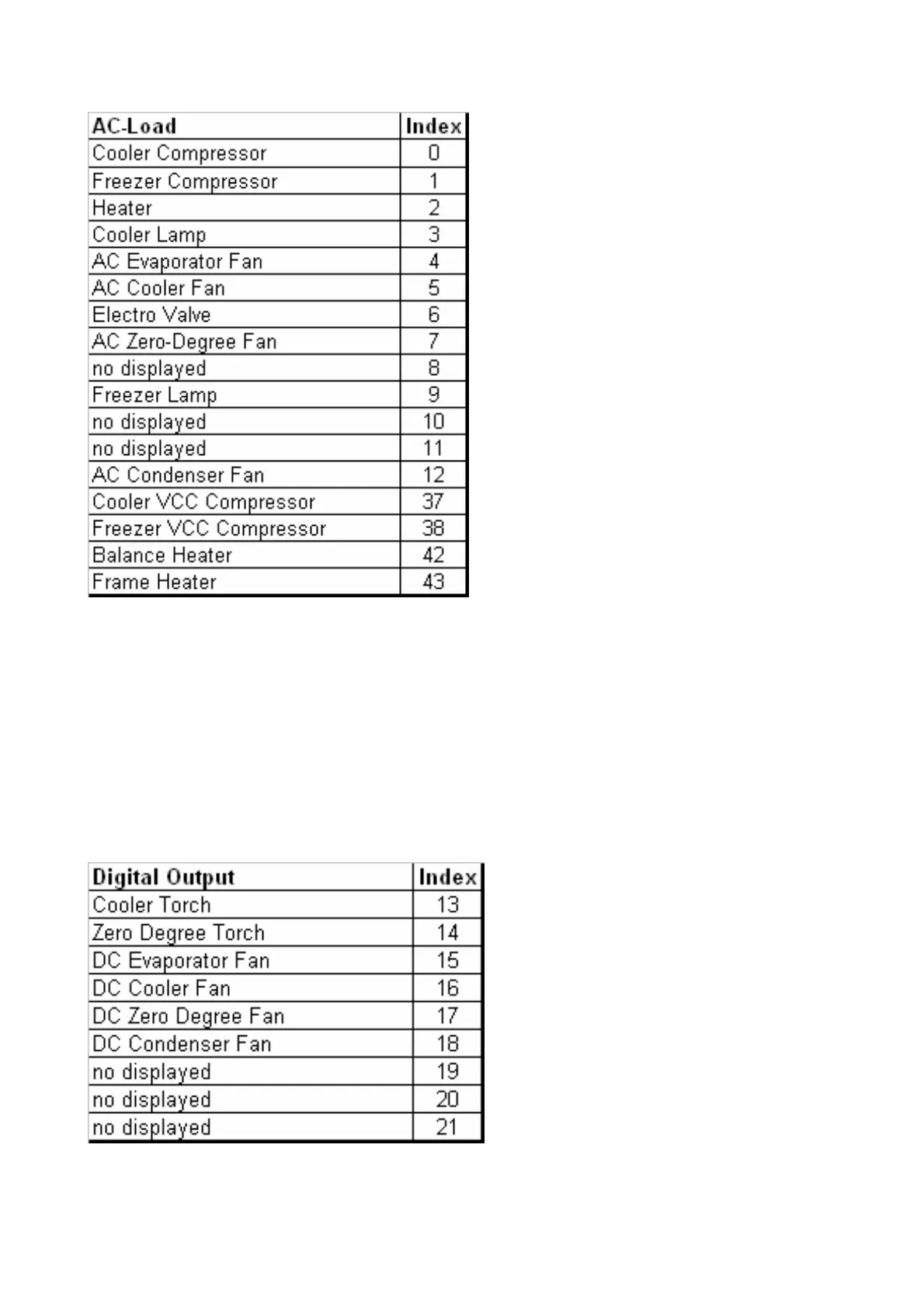

4.4 AC output test
Are defined to be tested every AC component connected to the electronic. There are 5 ACS Triacs on the
electronic for only 5 components to test. On the display is notified the index of component. When the Service
Mode starts, all components are switched off.
Pressing the push button „next“, you actived the next component.
Pressing the push button „action“ to switched on and off the component.
Pressing the push button „next“ again to goes in the next phase.
4.5 Digital output test
Are defined to be tested every digital output of components connected to the electronic. On the display is
notified the index of the component. When the Service Mode starts, all components are switched off.
Pressing the push button „next“, you actived the next component.
