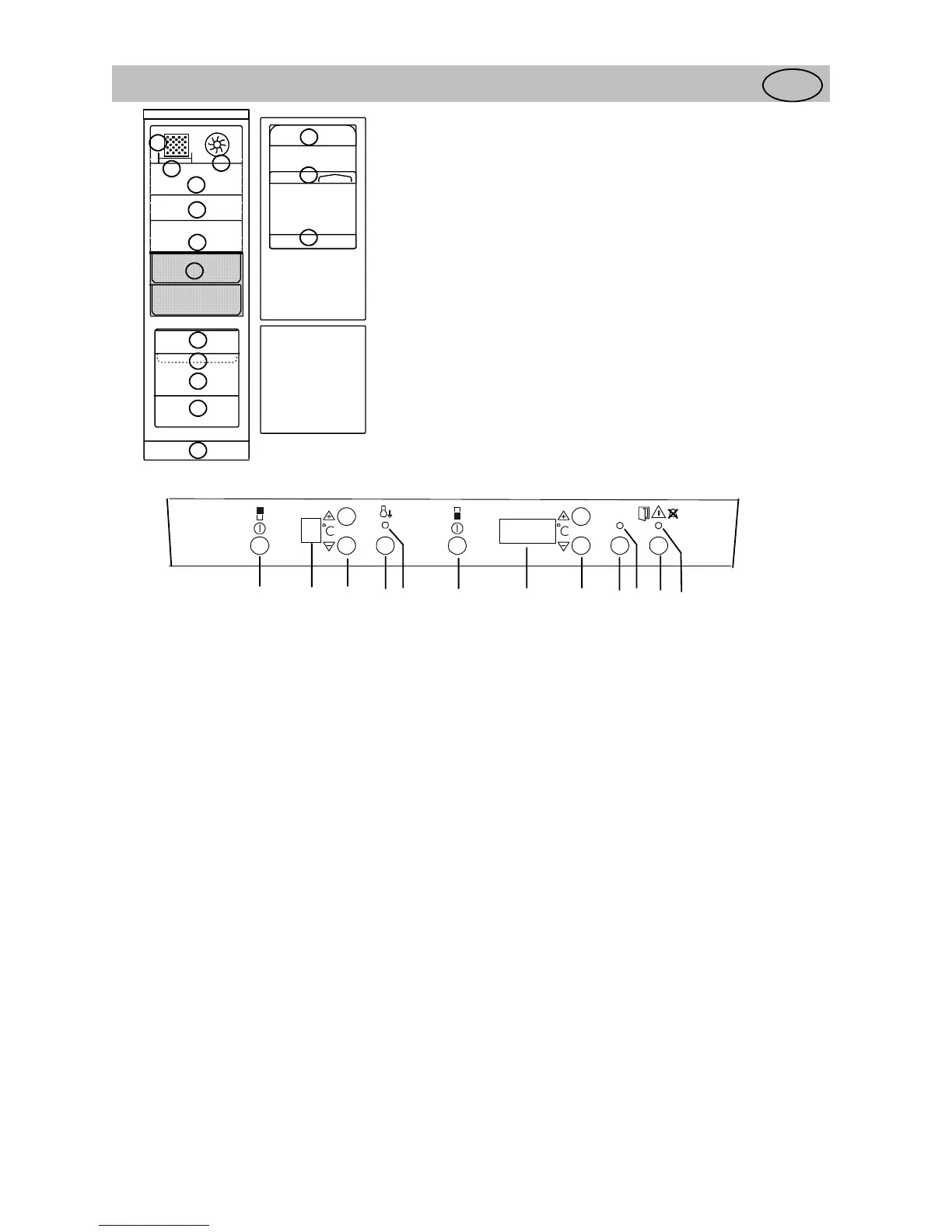

Description of the Appliance
GB
Model ERZ3600
1
1
2
4
5
6
8
9
10
12
11
3
4
4
7
1. Glass shelf
2. Diveder
3. "Natura-fresh" zone with
drawers and cover
4. Freezer drawer
5. Freezer plate
6. Ventilation grille
7. Butter compartment
8. Door shelf with Egg holder
9. Bottle shelf
10. Grid
11. Quick chill shelf
12. Bottle- and can holder
Control Panel
*
-- 1 85
ACTION COOL
ACTION FREEZE
ABCDEF GHIJKL
A. Refrigerator power switch
Switches t he refrigerator on and off incl.
"Natura-fresh" zone.
B. Temperature display
Shows the average temperature inside the
refrigerator (not for "Natura-fresh" zone).
C. Temperature adjustment button/thermostat
Used to set the temperature in the refrigerator.
D. QUICK CHILL button
Used to switch the Quick Chill feature on and off.
E. Yellow indicator lamp
Lights when Quick C hill is operating.
F. Freezer power switch
Switches the freezer on and off.
G. Temperature display
Shows the highest temperature inside the freezer.
H. Temperature adjustment button/thermostat
Used to set the temperature in the freezer.
I. FAST FREEZE button
Used to switch the Fast Freeze feature on and off.
J. Yellow indicator lamp
Lights when Fast Freeze is operating.
K. Alarm shut-off button
Used to turn the audible alarm off.
L. Red warning lamp
Flashes when one of the alarms in the cabinet has
been triggered.
