EFS - Dishwashing Systems Platform
Electrolux Professional
KEY
CN1 Rinse pump/wash pump/solenoid valve outputs
CN2 Pressure/atmospheric dishwasher solenoid valve connection
CN3 ECOTEMP transformer, detergent/rinse aid dispenser and drain pump outputs
CN5 Tank/boiler temperature sensor inputs
CN7 Hand safety system microswitch input
CN8 Energy peak controller input
CN10 Safety and upper/lower limit switch input
CN11 Hand safety system input - Gear motor current control input - Gear motor polarity inversion connection
CN12 User interface inputs/outputs
CN15 Overflow/tank level/board feed input
CN16 User interface inputs/outputs and hood/door sensor input

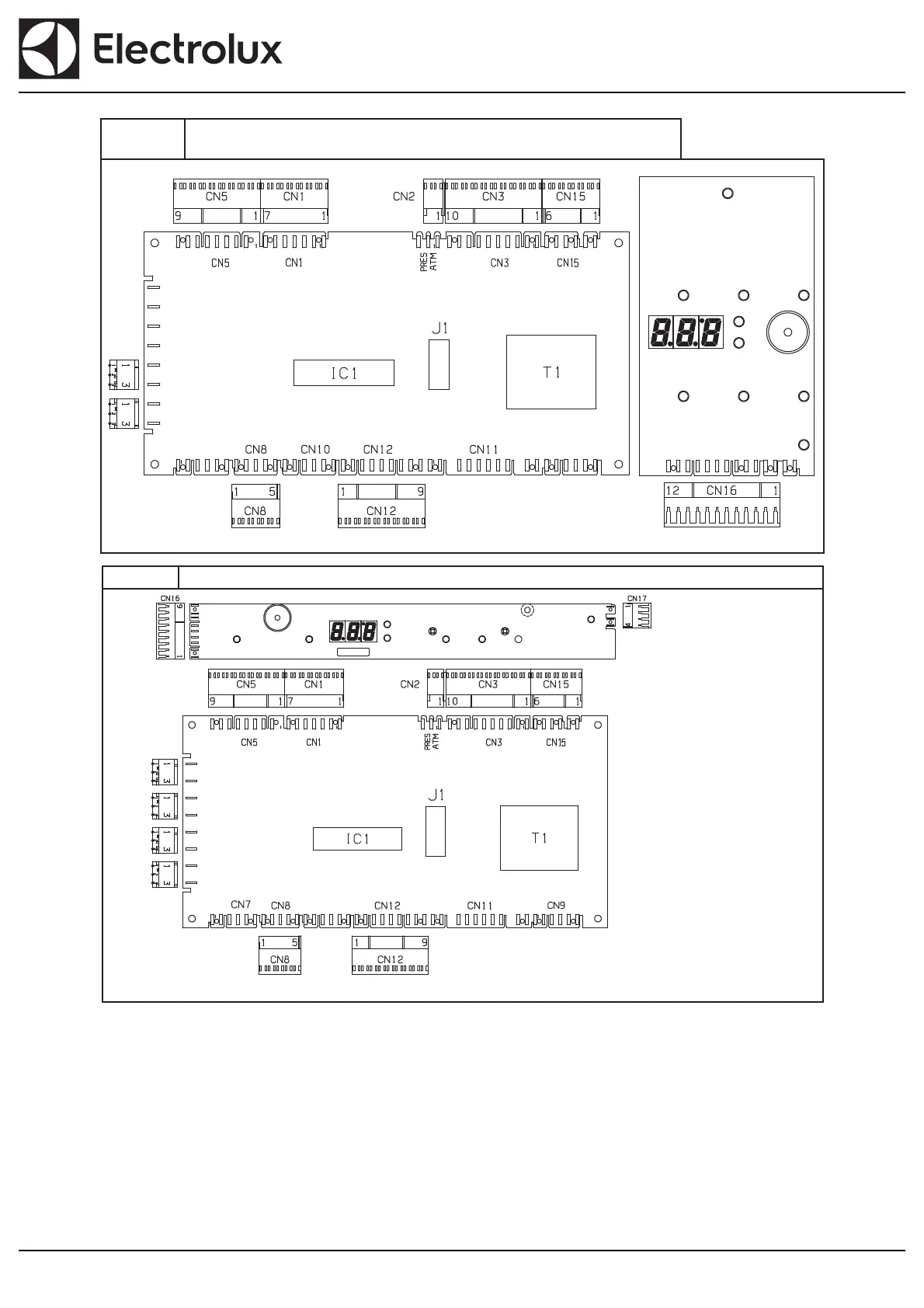

LAYOUT 4 ZHTA / AHTA / EHTA / ZHTAWS / AHTAWS / EHTAWS
ZPPW / APPW / EPPW (NO AUT)
ONLY
WS
LAYOUT 8 NUC / EUC / NUCWS / EUCWS / NUCI / EUCI / NUCIWS / EUCIWS
ONLY
WS
