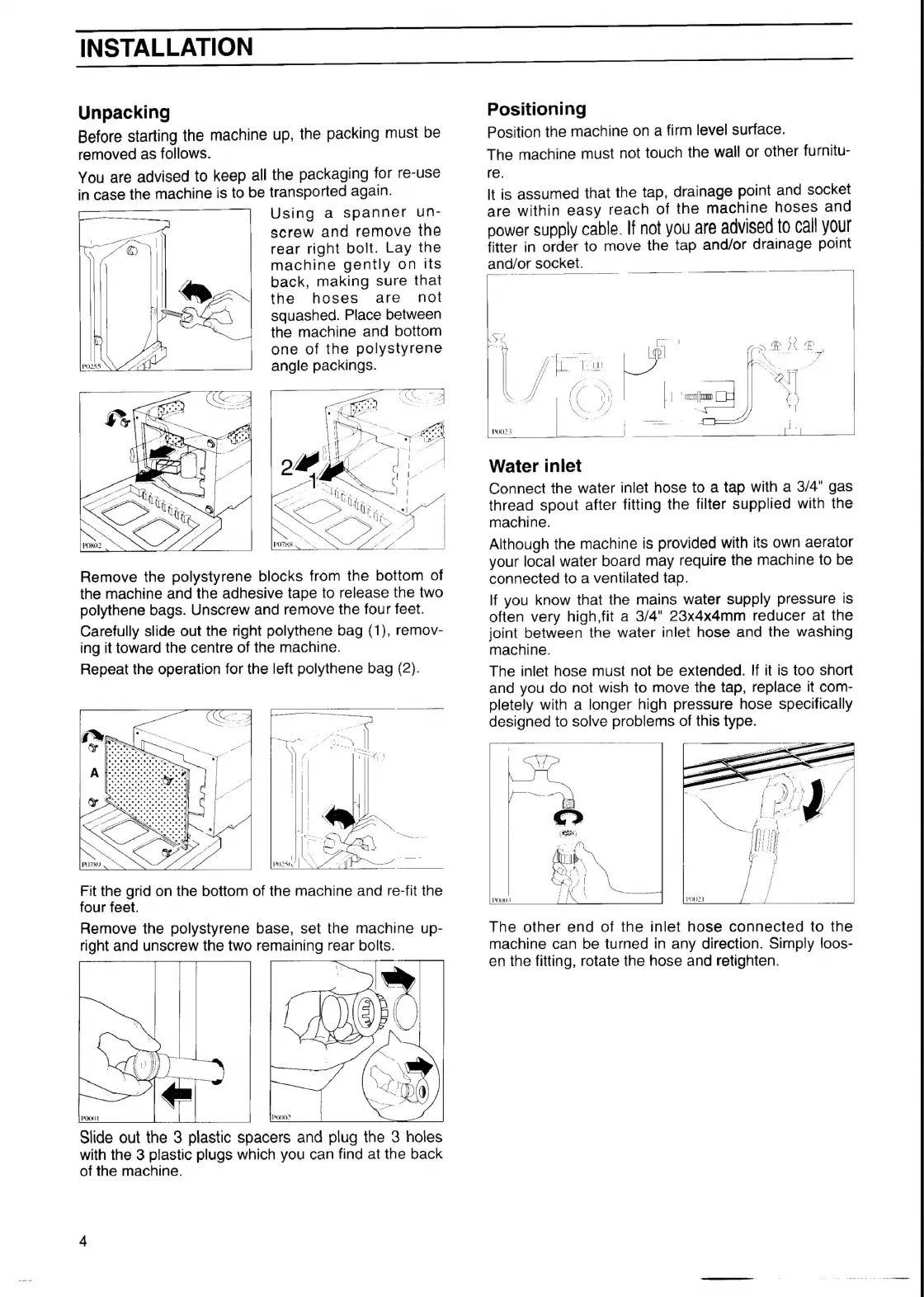

INSTALLATION

Unpacking

Before

starting

the

machine

up,

the

packing

must

be

removed

as

follows.

You

are

advised

to

keep

all

the

packaging

for

re-use

in

case

the

machine

is

to

be

transported

again.

Using

a

spanner

un-

screw

and

remove

the

rear

right

bolt.

Lay

the

machine

gently

on

its

back,

making

sure

that

the

hoses

are

not

squashed.

Place

between

the

machine

and

bottom

one

of

the

polystyrene

angle

packings.

Remove

the

polystyrene

blocks

from

the

bottom

of

the

machine

and

the

adhesive

tape

to

release

the

two

polythene

bags.

Unscrew

and

remove

the

four

feet.

Carefully

slide

out

the

right

polythene

bag

(1),

remov-

ing

it

toward

the

centre

of

the

machine.

Repeat

the

operation

for

the

left

polythene

bag

(2).

Fit

the

grid

on

the

bottom

of

the

machine

and

re-fit

the

four

feet.

Remove

the

polystyrene

base,

set

the

machine

up-

right

and

unscrew

the

two

remaining

rear

bolts.

Slide

out

the

3

plastic

spacers

and

plug

the

3

holes

with

the

3

plastic

plugs

which

you

can

find

at

the

back

of

the

machine.

Positioning

Position

the

machine

on

a

firm

level

surface.

The

machine

must

not

touch

the

wall

or

other

furnitu-

re:

It

is

assumed

that

the

tap,

drainage

point

and

socket

are

within

easy

reach

of

the

machine

hoses

and

power

supply

cable.

If

not

you

are

advised

to

call

your

fitter

in

order

to

move

the

tap

and/or

drainage

point

and/or

socket.

yep

7

Wek

Ted

:

jf

fr

SS

A

f

‘a

:

;

See

KS

J

PIKIIR

Water

inlet

Connect

the

water

inlet

hose

to

a

tap

with

a

3/4"

gas

thread

spout

after

fitting

the

filter

supplied

with

the

machine.

Although

the

machine

is

provided

with

its

own

aerator

your

local

water

board

may

require

the

machine

to

be

connected

to

a

ventilated

tap.

If

you

know

that

the

mains

water

supply

pressure

is

often

very

high,fit

a

3/4"

23x4x4mm

reducer

at

the

joint

between

the

water

inlet

hose

and

the

washing

machine.

The

inlet

hose

must

not

be

extended.

If

it

is

too

short

and

you

do

not

wish

to

move

the

tap,

replace

it

com-

pletely

with

a

longer

high

pressure

hose

specifically

designed

to

solve

problems

of

this

type.

POOUA

The

other

end

of

the

inlet

hose

connected

to

the

machine

can

be

turned

in

any

direction.

Simply

loos-

en

the

fitting,

rotate

the

hose

and

retighten.
