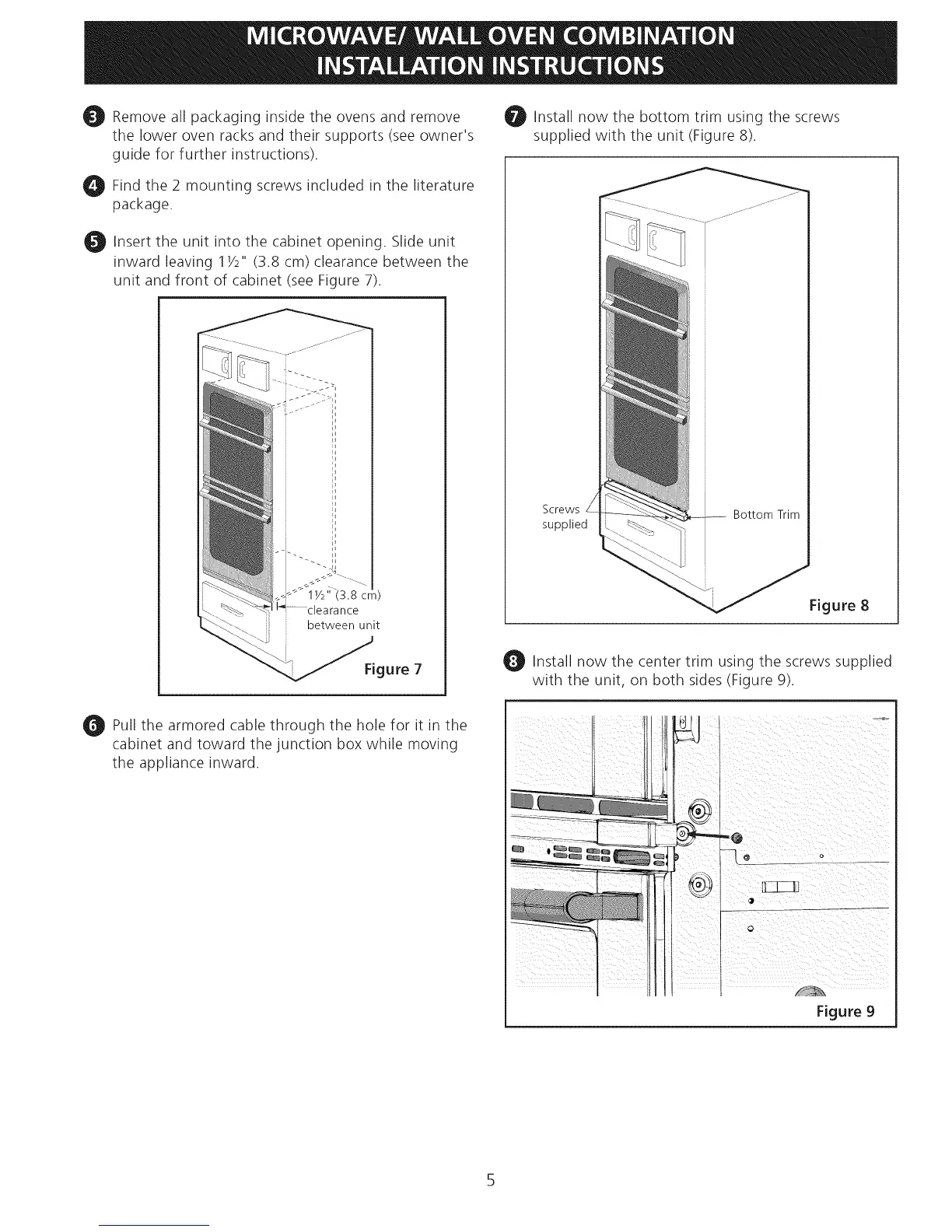

0 Removeallpackaginginsidetheovensandremove
thelowerovenracksandtheirsupports(seeowner's
guidefor furtherinstructions).
O Findthe2 mountingscrewsincludedintheliterature
package.
O Inserttheunitintothecabinetopening.Slideunit
inwardleaving11/2"(3.8cm)clearancebetweenthe
unitandfrontof cabinet(seeFigure7).
1)
between unit
Figure 7
Install now the bottom trim using the screws
supplied with the unit (Figure 8).
Screws
supplied
Bottom Trim
Figure 8
_t Install now the center trim using the screws supplied
with the unit, on both sides (Figure 9).
01 Pull the armored cable through the hole for it in the
cabinet and toward the junction box while moving
the appliance inward.
Figure 9
