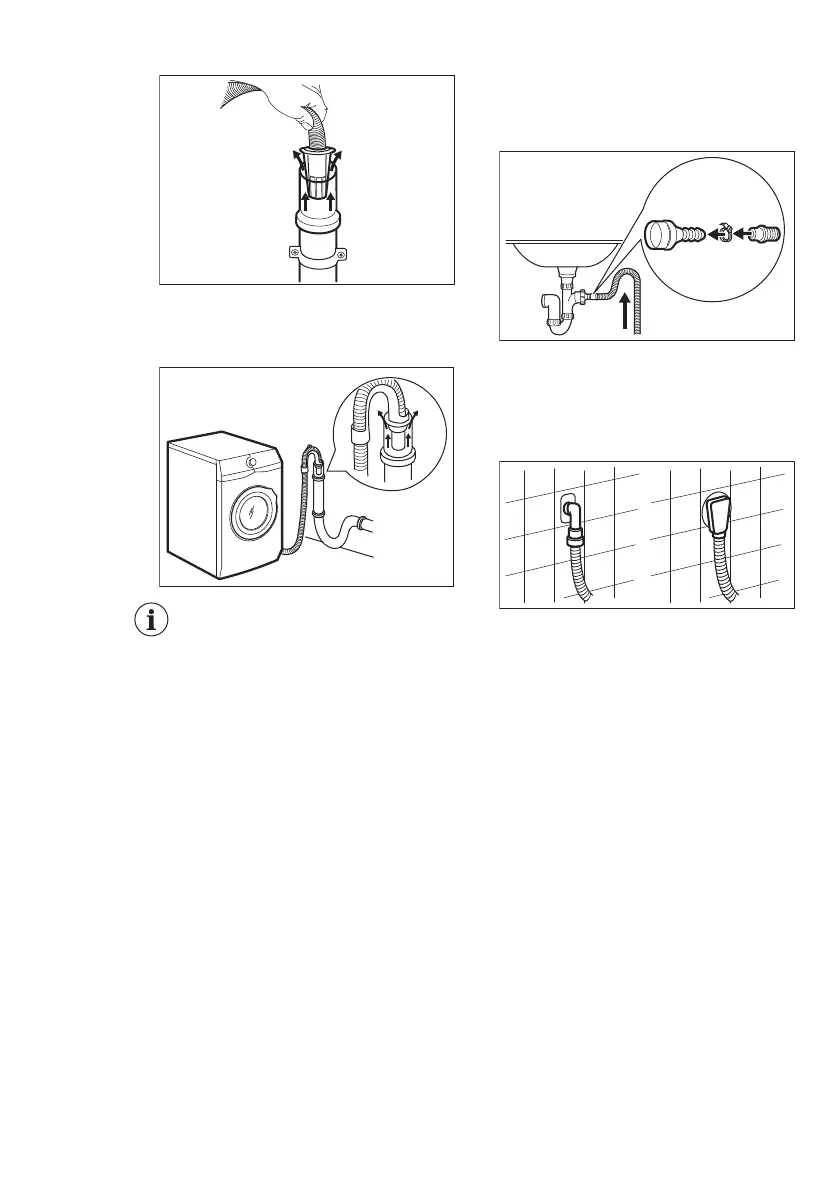

4. To a stand pipe with vent-hole -
Insert the drain hose directly into a
drain pipe. Refer to the illustration.
The end of the drain
hose must always be
ventilated , i.e. the inner
diameter of the drain
pipe (min. 38 mm - min.
1.5") must be larger than
the external diameter of
the drain hose.
5. Without the plastic hose guide, to a
sink spigot- Put the drain hose in the
spigot and tighten it with a clamp.
Refer to the illustration.
Make sure that the drain hose makes
a loop to prevent particles going into
the appliance from the sink.
6. Position the hose directly to a built-in
drain pipe in the room wall and
tighten it with a clamp.
4. ACCESSORIES
4.1 Fixing plate kit
(4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
