To a sink spigot
Put the drain hose in the spigot and tighten it
with the supplied cable tie L.
Make sure that the drain hose makes a loop
to prevent particles going into the appliance
from the sink.
To a wall-pipe
Directly to a built-in drain pipe in the room
wall and tighten it with the supplied cable tie
L.
You can extend the drain hose to maximum 400 cm. Contact the service
centre for the other drain hose and the extension.
5.6 Building in
600 mm
min.
820 mm
min.
560 mm
16-22 mm
min.

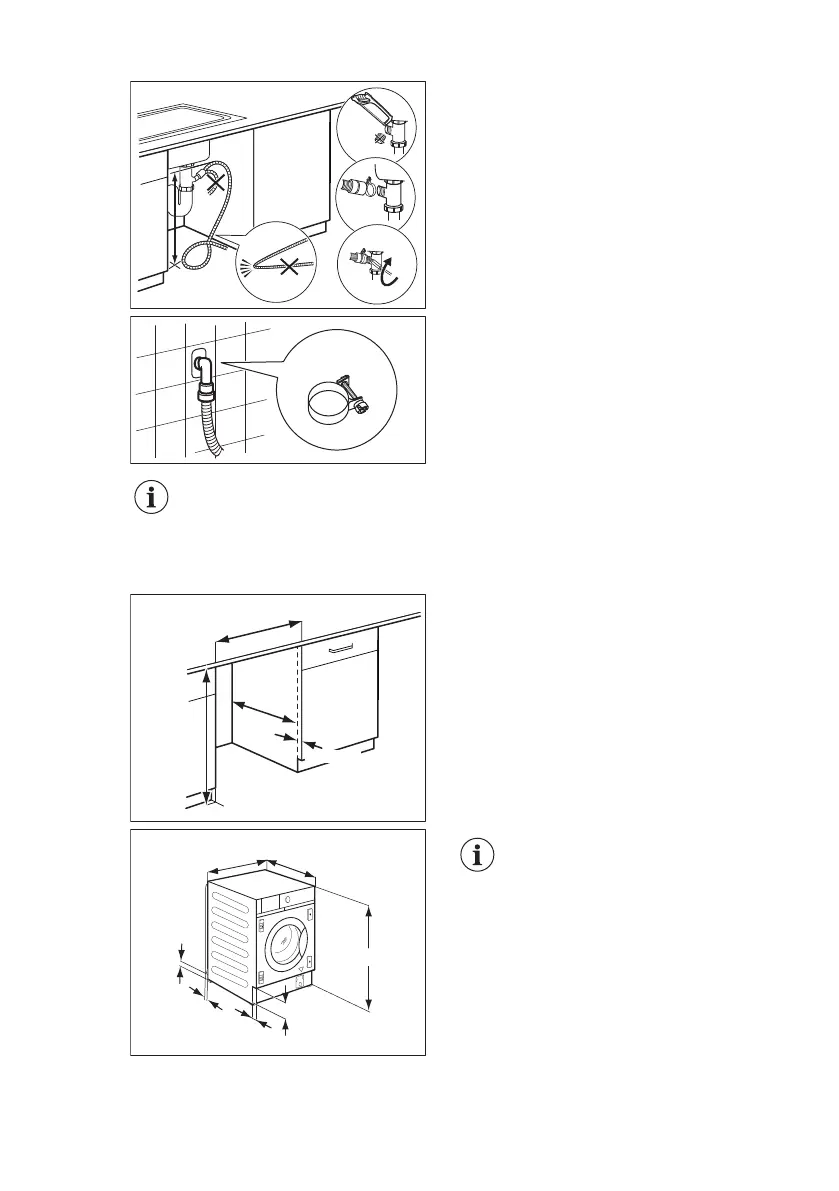

This appliance has been designed to be built
into the kitchen furniture. See the minimum
recess dimensions in the drawings.
553 mm
596 mm
140 mm
76 mm
50 mm
50 mm
819 mm
If hoses run behind the
appliance, make sure that
nothing closes the small
recess indicated with the
measures 50 x 50 mm.
ENGLISH 13
