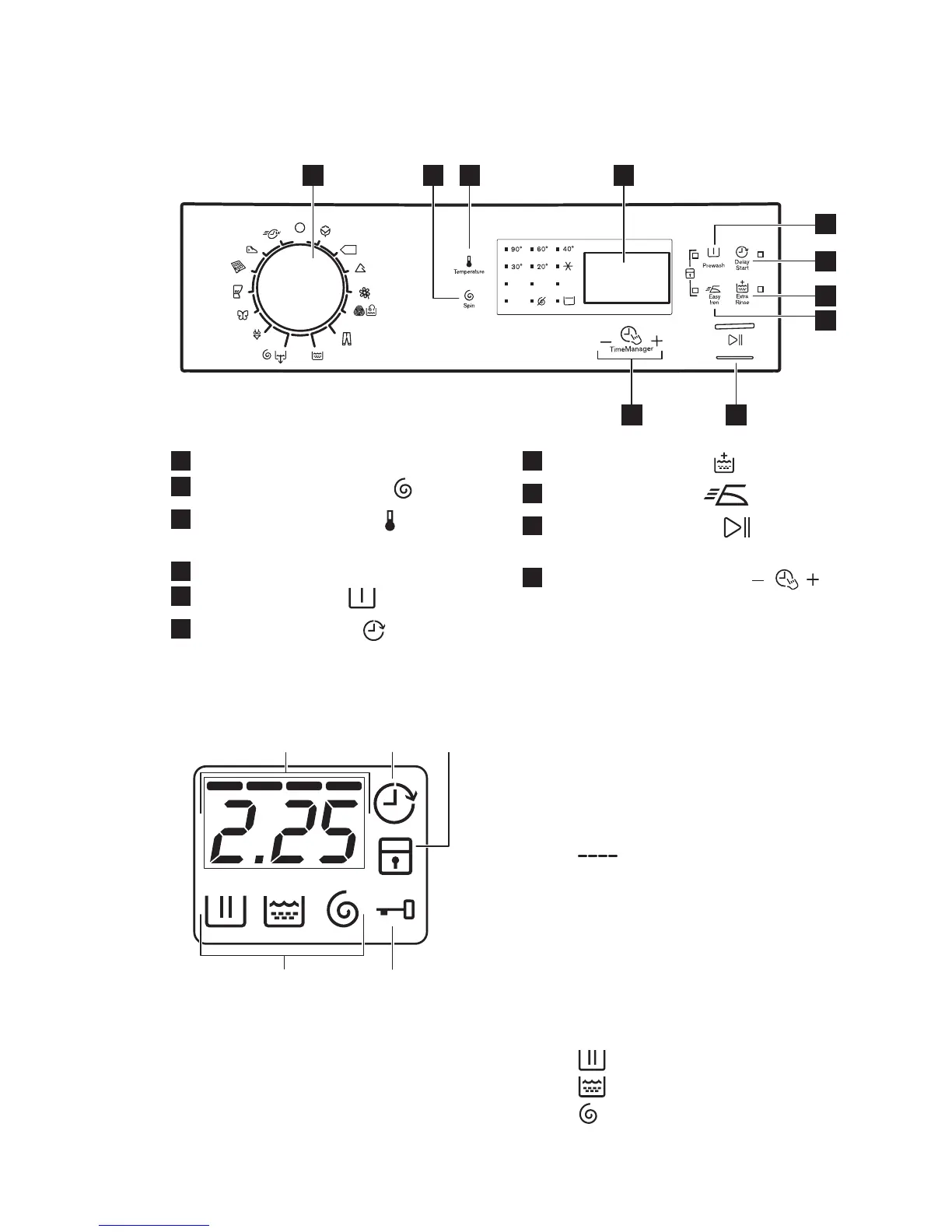

4. CONTROL PANEL
4.1 Control panel description
Start/Pause
1000
1200
1600
Silk
Lingerie
Curtains
Rinse
Duvet
Jeans
Sports
Spin/Drain
14 Min.
800
Cottons
Synthetics
Delicates
Wool/Handwash
Cottons Eco
1 2 3 4
910
7
6
8
5
1
Programme knob
2
Spin reduction touchpad (Spin)
3
Temperature touchpad
(Temperature)
4
Display
5
Prewash touchpad (Prewash)
6
Delay start touchpad (Delay Start)
7
Extra rinse touchpad (Extra Rinse)
8
Easy iron touchpad (Easy Iron)
9
Start/Pause touchpad (Start/
Pause)
10
Time Manager touchpads
4.2 Display
A B
E D
C
A. The time area:
• Programme time.
• The alarm codes. Refer to the
chapter “Troubleshooting” for their
description.
• The level of the Time Manager
.
B. The Delay Start indicator.
C. The Child Lock indicator.
D. The Door Lock indicator:
• It is on, you cannot open the door.
• It is off, you can open the door.
• It flashes, you cannot open the
door. Wait for some minutes until
the indicator is off.
E. Washing phase indicators.
•
: the washing phase
• : the rinses phase
• : the spin phase
www.electrolux.com6
