Electrolux EWF7524CDWA - 3. CONTROL PANEL; 3.1 Control Panel Description

10 www.electrolux.com
1
2
3
4

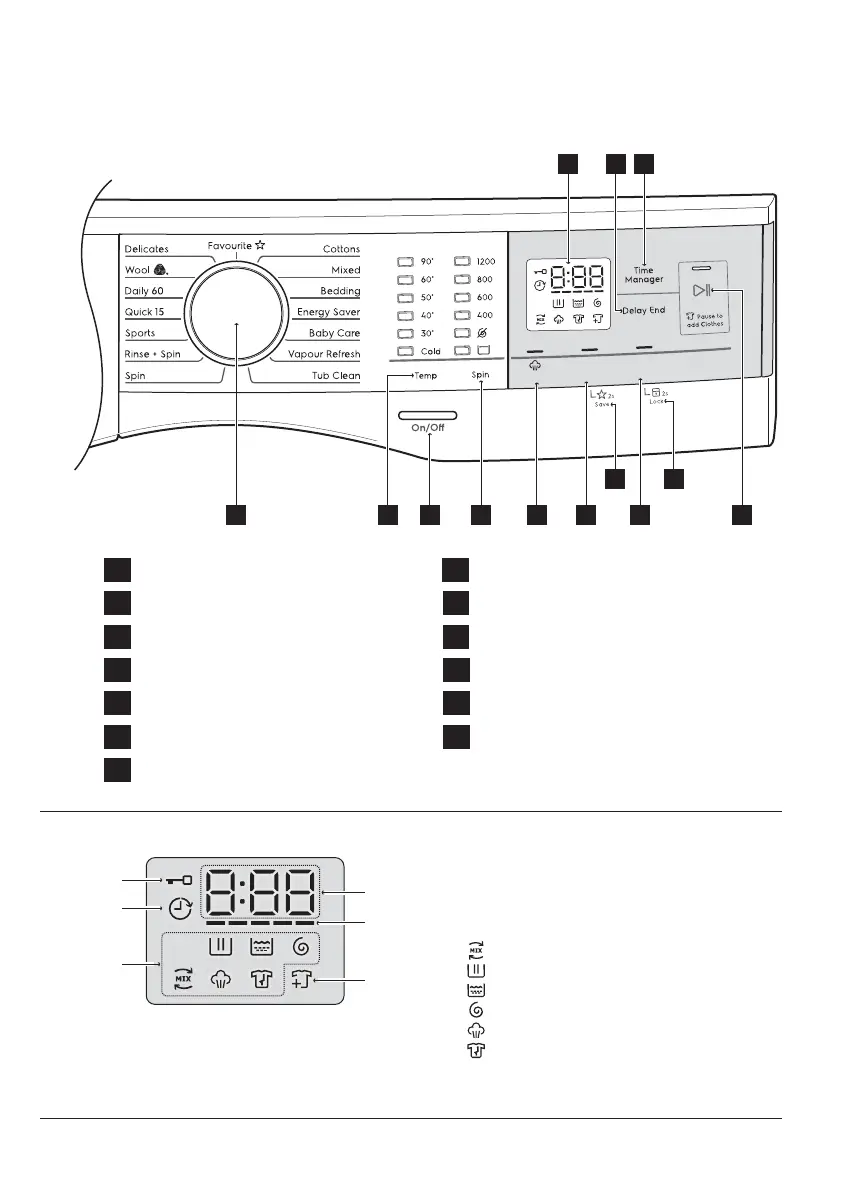

CONTROL PANEL3.
Program Selector Knob
Spin Selection Touchpad
On/Off Button
Temperature Selection Touchpad
5
6
7
8
Vapour Touchpad
Start/Pause and Add Clothes Touchpad
Extra Rinse Touchpad
11
Display
Display
12
Save Favourite Program Option
13
Child Lock Option
Prewash Touchpad
9
10
Delay End Touchpad
Time Manager Touchpad
3.1 Control Panel Description
9
3 75
A)
B)
C)
D)
Program Time
Time Manager Level
Add Clothes Icon
Program Phase Indication Icon:
E)
F)
Delay End Icon
Door Lock Icon
421 6
12 13
8
11 10
F
E
D
B
A
C
Ultramix phase
Wash phase
Rinse phase
Spin phase
Vapour phase
Anticrease Phase Icon
Prewash
Extra Rinse
Vapour
