Electrolux EWF8024R5WB - Control Panel; Control Panel Description

10 www.electrolux.com
2s 2s
ACDBE
MN
FG
HIJKL

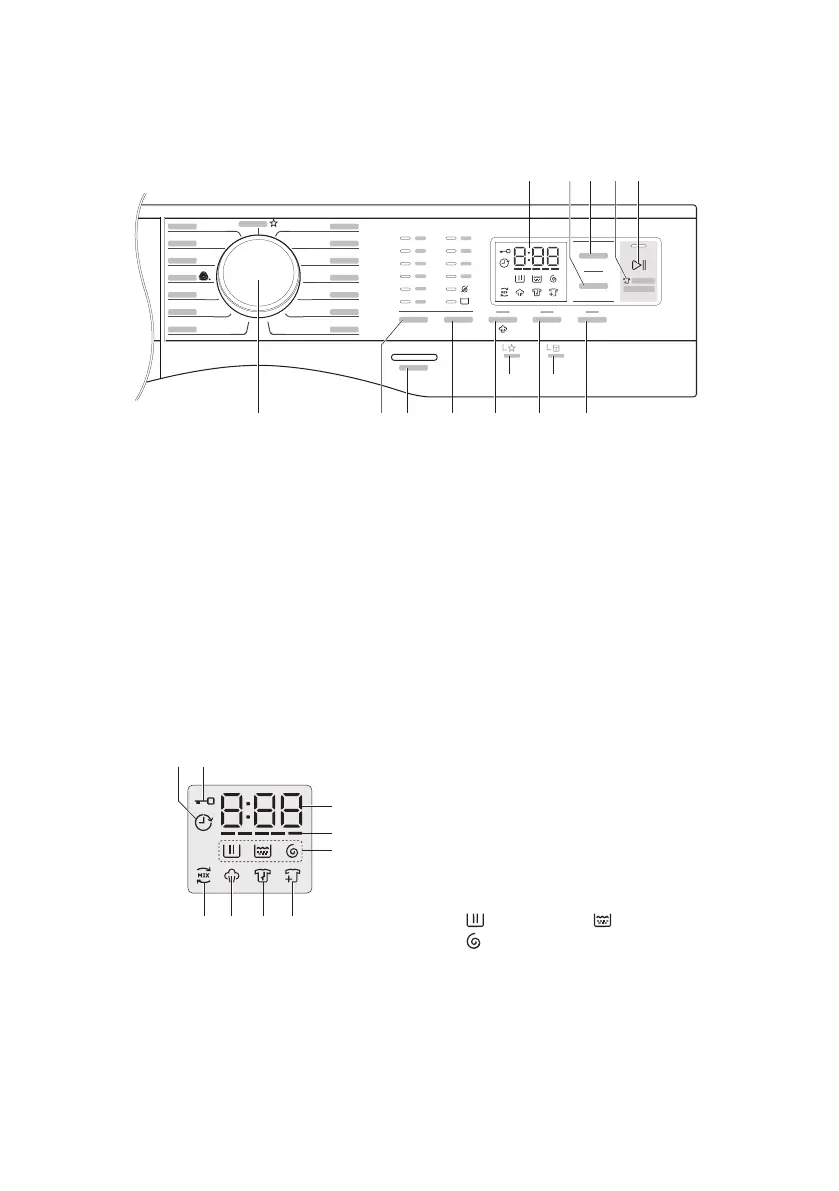

A
Program knob
H
Display
B
Temp touchpad
I
Delay End touchpad
C
On/Off button
J
Time Manager touchpad
D
Spin touchpad
K
Pause to add Clothes option
E
Hygienic Care touchpad
L
Start/Pause touchpad
F
Prewash touchpad
M
Favourite program save option
G
Extra Rinse touchpad
N
Child safety lock option
Display
A
A
B
FGI H
C
C
A
C
D
E
A Delay End Icon
B Door Lock Icon
C Program Duration / Delay End Time
/ Alarm Code
D Time Manager level
E Program Phase Indication Icon:
Wash Phase, Rinse Phase,
Spin Phase
F Add Clothes Icon
G Anticrease Phase Icon (this program
phase is only active in the Washer
Dryer model)
H Vapour phase Icon
I Ultramix phase Icon
3. CONTROL PANEL
3.1 Control Panel Description
