Electrolux EWF9043BDWA - Control Panel and Programs; 3.1 Control Panel Overview

10 www.electrolux.com
1
2
3
4
5
7
6
8
9
10
11
CONTROL PANEL3.
Program Selector Knob
Display
Temperature Selection Touchpad
Spin Selection Touchpad
Sensor Wash Touchpad
Delay End Touchpad
Start/Pause and
Add Clothes Touchpad
Stain Touchpad
Vapour Touchpad
12
13
14
On/Off Button
Save Favourite Program Option
Child Lock Option
Prewash Touchpad
Time Manager Touchpad

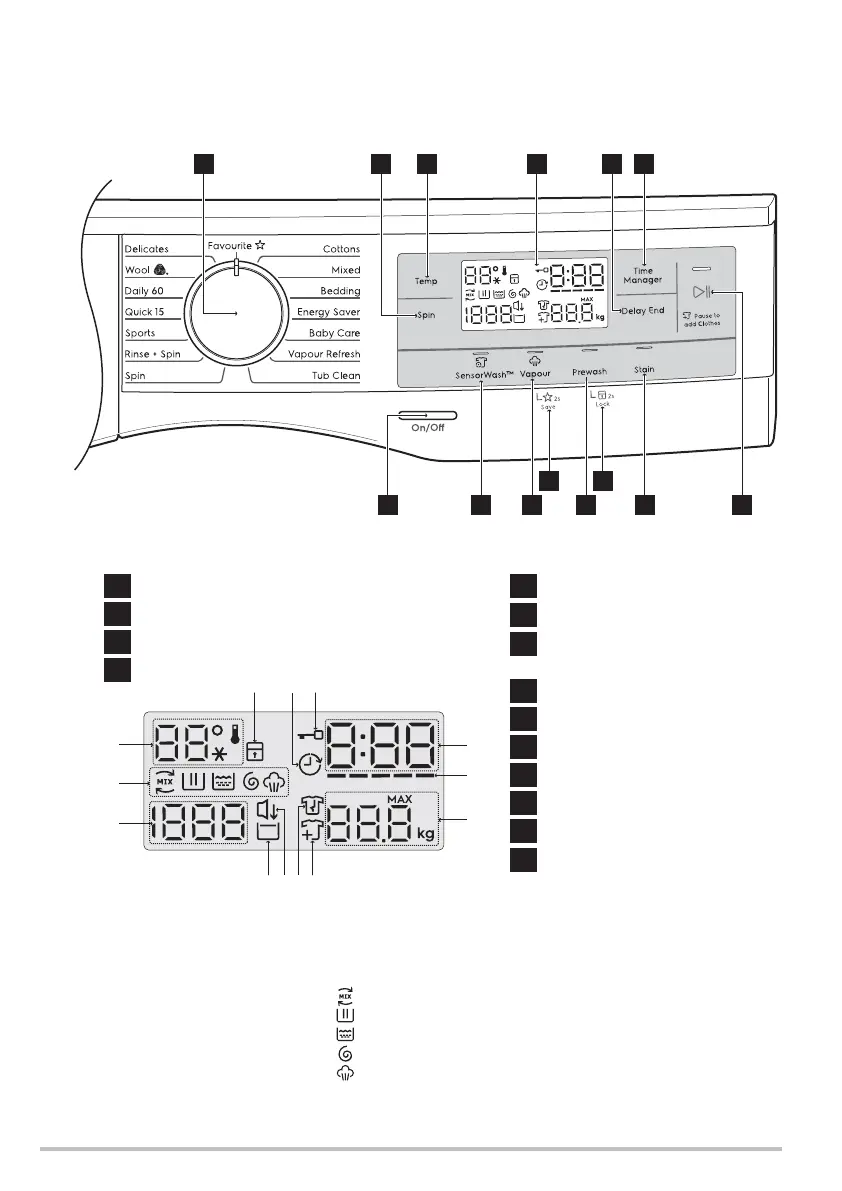

3.1 Control Panel Description
1 2 53 4 6
12 11 8 710
13 14
9
M
L
K
J I H G
A B C
F
D
E
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
L)
M)
Child Lock Icon
Delay End Icon
Door Lock Icon
Program Time
Time Manager Level
Maximum Load
Capacity Of Selected
Program
Add Clothes Icon
Anticrease Phase Icon
Extra Silent Icon
Rinse Hold Icon
Spin Speed
Program Phase
Indication Icon:
Ultramix phase
Wash phase
Rinse phase
Spin phase
Vapour phase
Temperature
