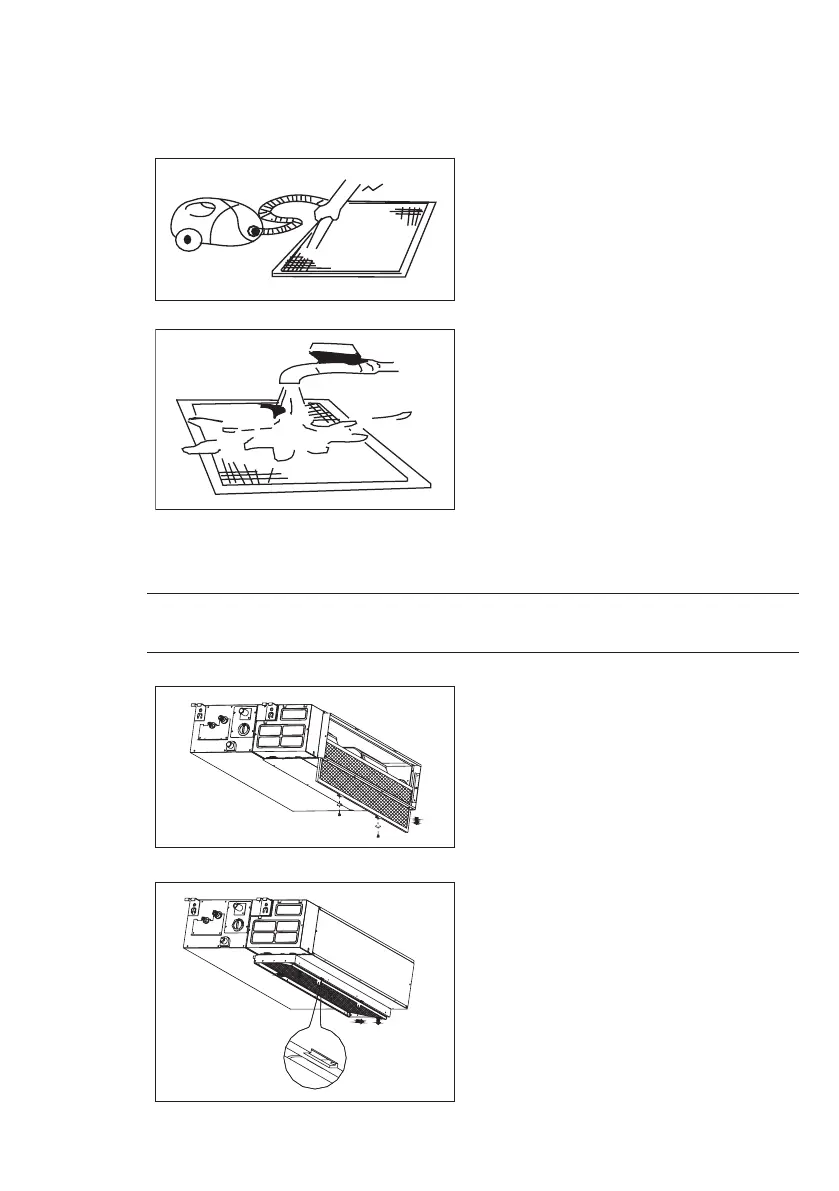

Fig.27
Fig.28
2. Take out the air-in grill(together with
the air lter shown in Fig. B). Pull the
air-in grill down at 45º and lift it up to
take out the grill.
3. Dismantle the air lter.
4. Clean the air lter(vacuum cleaner or
pure water may be used to clean the
air lter. If the dust accumulation is too
heavy, please use soft brush and mild
detergent to clean it and dry out in the
cool place).
• The air-in side should face up when
using vacuum cleaner.
• The air-in side should face down when
using water.
5. Re-install the air lter
6. Install and close the air-in grill in the
reverse order of step 1 and 2 and
connect the control box cables to the
corresponding terminators of the main
body.
13.3.3 Duct Type
Fig.29
Fig.30
1. For the unit is a rear ventilated one,
please remove the screws (2 pieces)
xed on the lter and take down the
lter away from the unit.
2. For the unit is a descensional
ventilated one, please push the lter
up slightly to let the position retainer
escape away from the flange xed
holes, and take off the lter according
to the arrow direction.
3. Clean the air lter(vacuum cleaner or
pure water may be used to clean the
air lter. If the dust accumulation is too
heavy, please use soft brush and mild
detergent to clean it and dry out in the
cool place).
• The air-in side should face up when
using vacuum cleaner.
• The air-in side should face down when
using water.
4. Re-install the air lter
