21

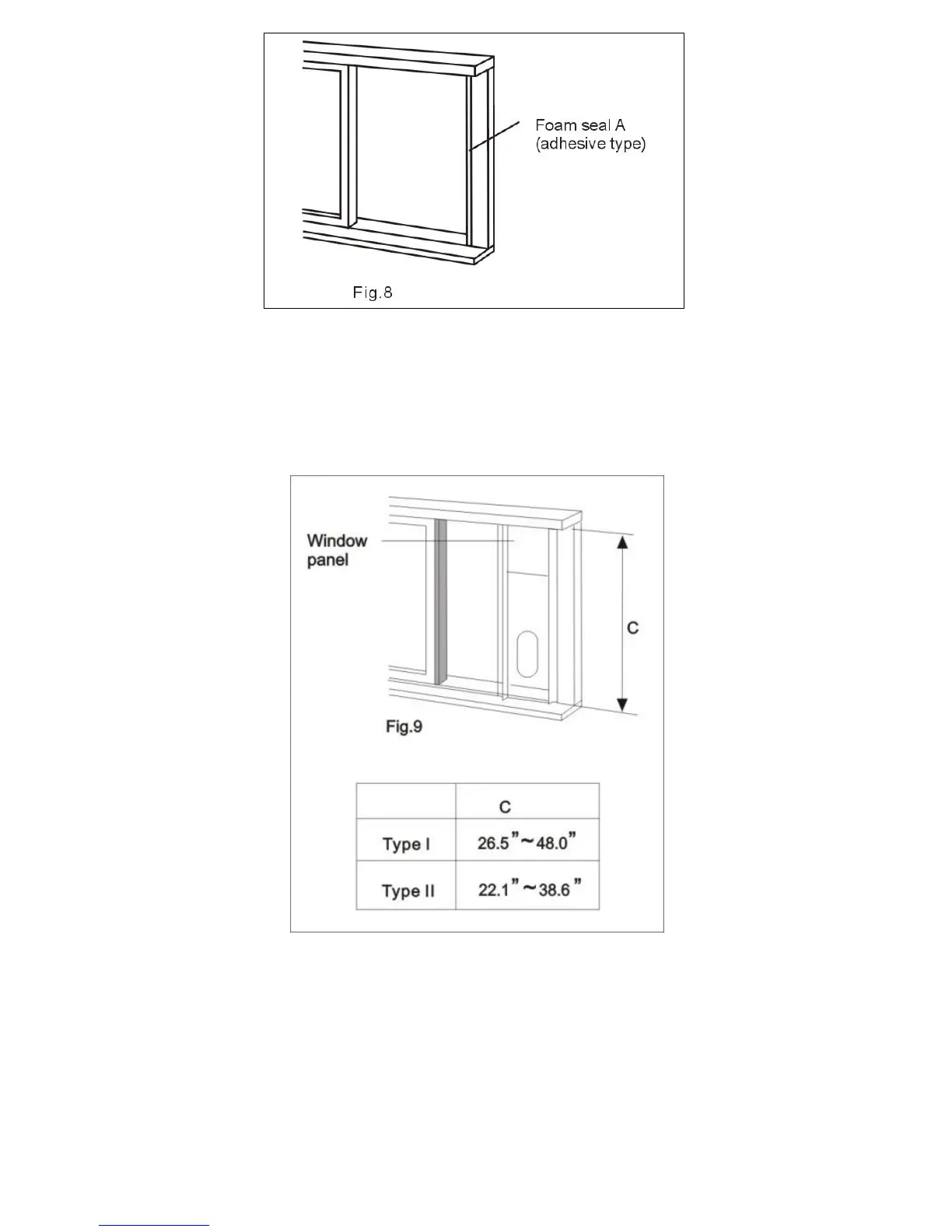

2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to
the width of window. Short the adjustable window kit if the width of window is less than 26.5(Type I)
or 22.1(Type II) inches. Open the window sash and place the window slider kit on the window stool.
See Fig.9
3. Cut the foam seal (adhesive type) to the proper length and attach it on the top of the window. Show as
in Fig.10.
