previous pages for window kit installation.

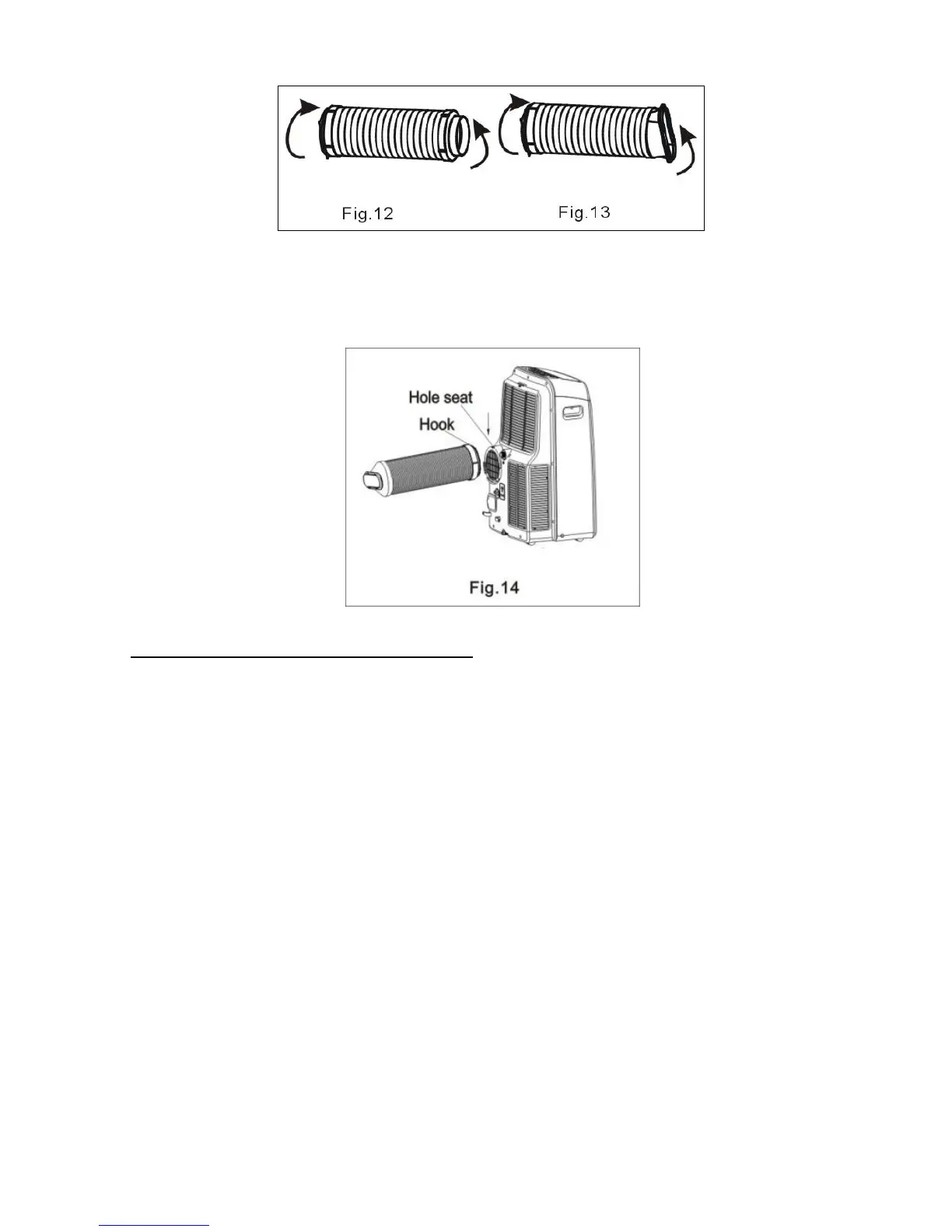

2. Insert the hook of the Exhaust hose into the hole seat of the air outlet and slide down the Exhaust
hose along the arrow direction for installation (See Fig.14)
The exhaust hose can be installed into the wall
(Not applicable to the units without adaptor A, expansion plugs and wooden screws of Accessories).
1. Prepare a hole in the wall. Install the wall Exhaust adaptor A onto the wall (outside) by using 4
expansion plugs and wooden screws, be sure to fix thoroughly. (See Fig.15)
2. Attach the Exhaust hose to wall Exhaust adaptor A.
