6

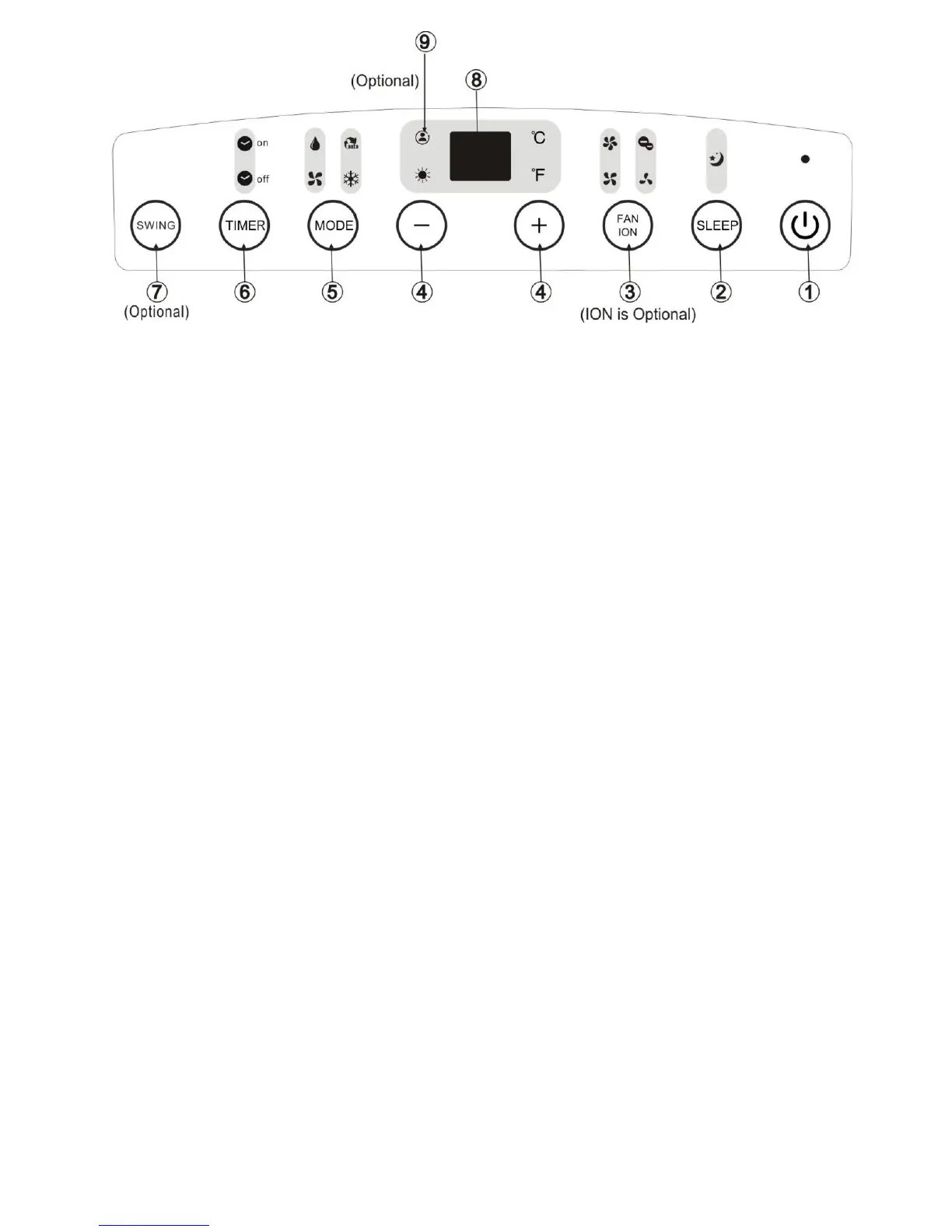

(1) POWER button
Power switch on/off
(2) SLEEP button
Used to initiate the SLEEP operation.
(3) FAN/ION button (ION is optional)
Control the fan speed. Press to select the fan speed in four steps-LOW, MED, HI and AUTO.
The fan speed indicator light illuminates under different fan settings except AUTO speed. When select
AUTO fan speed, all the fan indicator lights turn dark. NOTE: Press this button for 3 seconds to initiate
ION feature. The ion generator is energized and will help to remove pollen and impurities from the air,
and trap them in the filter. Press it for 3 seconds again to stop the ION feature.
(4) UP (+) and DOWN (-) button
Used to adjust (increasing/decreasing) temperature settings (1 C/2 F increments) in a range of 17 C(62 F)
to 30 C(88 F) or the TIMER setting in a range of 0~24hrs.
NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To
convert from one to the other, press and hold the Up and Down buttons at the same time, for 3
seconds.
(5) MODE select button
Select the appropriate operating mode. Each time you press the button, a mode is selected in a sequence
that goes from AUTO, COOL, DRY, FAN and HEAT (cooling only models without). The mode indicator
light illuminates under the different mode settings.
