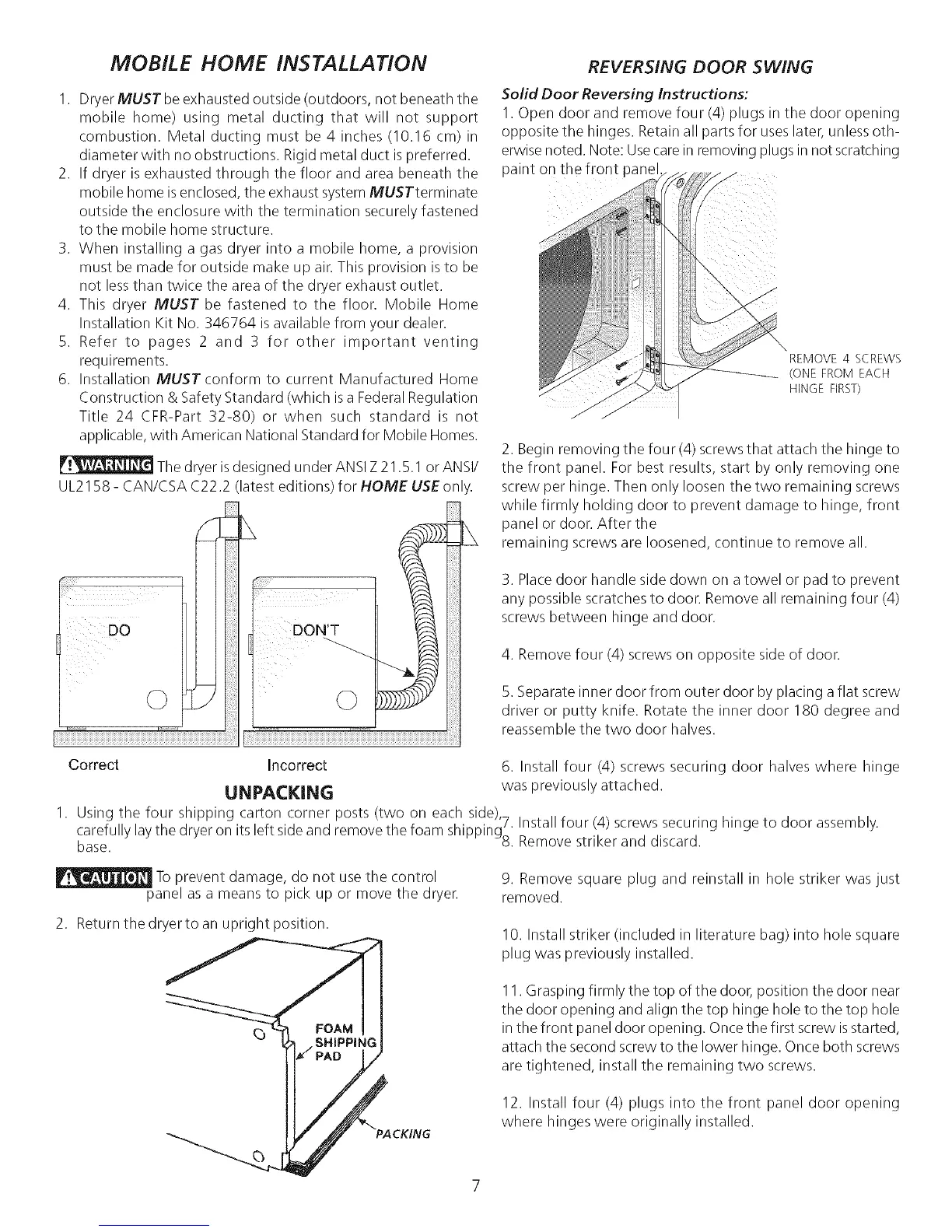

MOBILE HOME INSTALLATION
REVERSING DOOR SWING
I. DryerMUSTbe exhausted outside (outdoors, not beneath the
mobile home) using metal ducting that will not support
combustion. Metal ducting must be 4 inches (10.16 cm) in
diameter with no obstructions. Rigid metal duct ispreferred.
2. If dryer is exhausted through the floor and area beneath the
mobile home isenclosed, the exhaust system MUSTterminate
outside the enclosure with the termination securely fastened
to the mobile home structure.
3. When installing a gas dryer into a mobile home, a provision
must be made for outside make up air. This provision is to be
not lessthan twice the area of the dryer exhaust outlet.
4. This dryer MUST be fastened to the floor. Mobile Home
Installation Kit No. 346764 is available from your dealer.
5. Refer to pages 2 and 3 for other important venting
requirements.
6. Installation MUST conform to current Manufactured Home
Construction & Safety Standard (which isa Federal Regulation
Title 24 CFR-Part 32-80) or when such standard is not
applicable, with American National Standard for Mobile Homes.
Thedryer is designed under ANSIZ 21.5.1 or ANSI/
UL2158 - CAN/CSA C22.2
DO
latest editions) for HOME USE only.
L
f!<i i I_I
DON'T
i
Q
Solid Door Reversing Instructions:
1. Open door and remove four (4) plugs in the door opening
opposite the hinges. Retain all parts for useslater, unless oth-
erwise noted. Note: Usecarein removing plugs in not scratching
paint on the front pane
REMOVE 4 SCREWS
(ONE FROM EACH
HINGE FIRST)
2. Begin removing the four (4) screws that attach the hinge to
the front panel. For best results, start by only removing one
screw per hinge. Then only loosen the two remaining screws
while firmly holding door to prevent damage to hinge, front
panel or door. After the
remaining screws are loosened, continue to remove all.
3. Place door handle side down on a towel or pad to prevent
any possible scratches to door. Remove all remaining four (4)
screws between hinge and door.
4. Remove four (4) screws on opposite side of door.
5. Separate inner door from outer door by placing aflat screw
driver or putty knife. Rotate the inner door 180 degree and
reassemble the two door halves.
Correct Incorrect 6. Install four (4) screws securing door halves where hinge
UNPACKING was previously attached.
1. Using the four shipping carton corner posts (two on each side),7
carefully lay the dryer on its left side and remove the foam shipping 8 Install four (4) screws securing hinge to door assembly.
base. . Remove striker and discard.
Toprevent damage, do not use the control
panel as a means to pick up or move the dryer.
9. Remove square plug and reinstall in hole striker was just
removed.
2. Return the dryer to an upright position.
10. Install striker (included in literature bag) into hole square
plug was previously installed.
11. Grasping firmly the top of the door, position the door near
the door opening and align the top hinge hole to the top hole
in the front panel door opening. Once the first screw isstarted,
attach the second screw to the lower hinge. Once both screws
are tightened, install the remaining two screws.
12. Install four (4) plugs into the front panel door opening
where hinges were originally installed.
