19

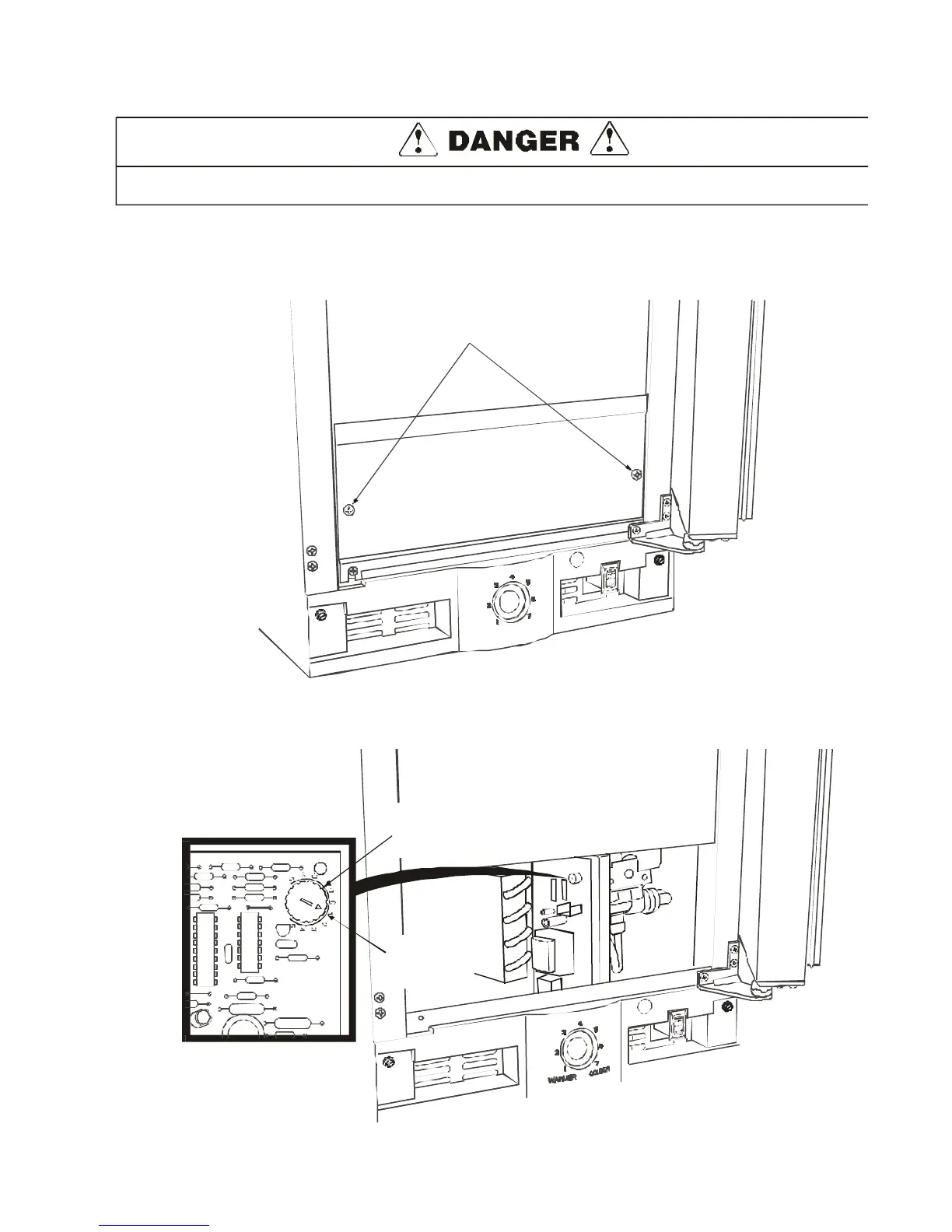

Disconnect power to the ice maker before making any ice thickness adjustments.
1. Disconnect power to the unit.
ACCESS PANEL SCREWS
WARMER
C
O
L
D
E
R
2. Remove the screws securing the front access panel.
ICE CUBE THICKNESS
ADJUSTMENT
DIAL
DIAL IS FACTORY
SET TO +1
Adjusting Ice Cube Thickness:
3. Locate the ice cube thickness adjustment dial on the control board. Turn the dial
clockwise (+ number) to thicken or counterclockwise (- number) to thin the ice bridge.
18
20
Table of Contents
Ice Maker
1
Safe Servicing Practices
2
Table of Contents
3
Quick Reference Sheet
4
Owner's Guide and Parts Information
4
Contact Information
4
General Information
5
Safety Precautions
5
Door Adjustment
5
Ice Production Rates
7
Customer Questions
7
Sequence of Operation
8
Automatic Shut-Off
8
System and Time Chart
9
Leveling and Installation Requirements
10
Leveling the Unit
10
Installation Requirements
10
Gravity Drain Installation
11
Connecting a Drain Pump
12
Automatic Clean Cycle Instructions
12
Interior Storage bin Cleaning
13
Sample Wiring Diagram
14
Compressor/Electrical Specifications
15
Compressor Pins
15
Specifications
15
Thermister
16
Check Light on Control Board
16
Low Side Pressure Changes
17
Ice Thickness Adjustment
18
Differences Are as Follows
18
Adjusting Ice Cube Thickness
19
Refrigeration System Diagnosis Guide
21
Troubleshooting
22
Unit Does Not Operate
22
(With Drain Pump; Light on Control Board Is Not Illuminated)
22
(Withoutdrain Pump; Light on Control Board Is Not Illuminated)
22
Unit Does Not Operate and Light on Control Board Is Illuminated
22
No Ice Production
22
Low Ice Production
22
Will Not Eject Ice (Water Frozen)
23
Ice Is Slow to Release from Evaporator
23
Will Not Fill with Water
23
Continuous Ice Production
23
Low (or No) Ice Production
24
Poor Ice Quality (Soft or Unclear Cubes)
24
Unit Not Freezing (Compressor and Fan Operating)
24
Unit Produces Shallow or Incomplete Cubes or the Ice Fill Pattern on the Grid Is Incomplete
25
Not Freezing Compressor Not Running / Fan Operating
25
Not Freezing (Compressor and Fan Not Operating)
25
If the Unit Has a Drain Pump
25
Water Leak under Unit
26
Water in Ice bin
26
Water will Not Stop Filling
26
Unit Noisy
26
