Electrolux ICON E24CM75GSS - Water Flow Chart

TTrroouubblleesshhoooottiinngg
3-5

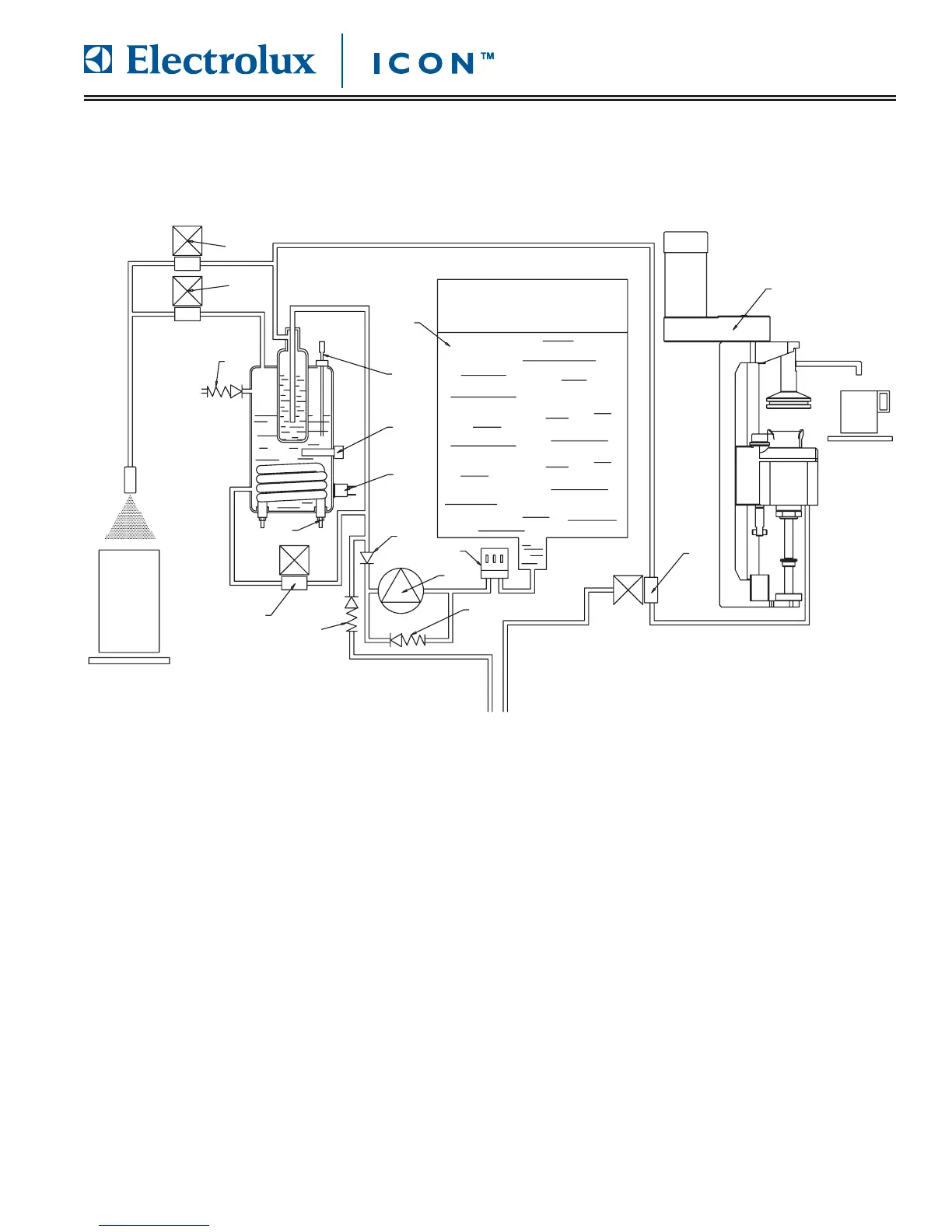

1. Brewing Unit
2. Retaining Valve
3. Pump
4. Safety Valve
5. Delivery Solenoid Valve
6. Heating Element
7. Level Solenoid Valve
8. Level Probe
9. Safety Thermostat
10. Temperature Probe
11. Steam Solenoid Valve
12. Hot Water Solenoid Valve
13. Water Tank
14. Flowmeter
15. Neplax Valve
16. Pump Bypass
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
WWaatteerr FFllooww CChhaarrtt
