EExxtteerrnnaall DDoooorr CCoommppoonneennttss
DDrriipp TTrraayy RReemmoovvaall
The drip tray is removed by placing fingers in the drip
tray finger holes and pulling straight out until the drain
tube clears the grommet in the back of drip tray.
(See Figure 4-1)
The drip tray top plate is removed by placing fingers in
the round finger holes of top plate and pulling the top
plate off of the drip tray.
CCoonnttrrooll PPaanneell CCoovveerr RReemmoovvaall
The control panel cover is secured with screws to the
inside of door assembly. Removing the control panel
cover allows access to the electronic control compart-
ment and switches of unit.
To remove the control panel cover (See Figure 4-2):
1. Remove drip tray, press spring hook latch and pull
door open.
2. Using a phillips head screwdriver, extract screws
securing the control panel cover to inner door
frame.
3. Pull control panel cover downward and away from
door assembly until the four tabs of the control
panel cover release from the slots in the top inside
edge of the door assembly.
LLiigghhtt TTrraannssffoorrmmeerr RReemmoovvaall
The light transformer has wire leads connected to wire
terminals located underneath plastic covers that are
secured with a screw to each end of transformer.
The outlet of the light transformer should test at 350mA
with a max of 24V when power is applied.
To remove the light transformer (See Figure 4-3):
1. Remove drip tray, open door and remove control
panel cover.
2. Using a phillips head screwdriver, extract screw
from transformer cover. Repeat on opposite side.
3. Label wire leads as needed before removing from
wire terminals.
4. Using a small screwdriver, loosen setscrews
securing wire leads to wire terminals. Remove wire
leads from transformer.
FFiigguur
ree 44--22.. CCoonnttrrooll PPaanneell CCoovveerr RReemmoovvaall
CCoommppoonneenntt TTeeaarrddoowwnn
4-3

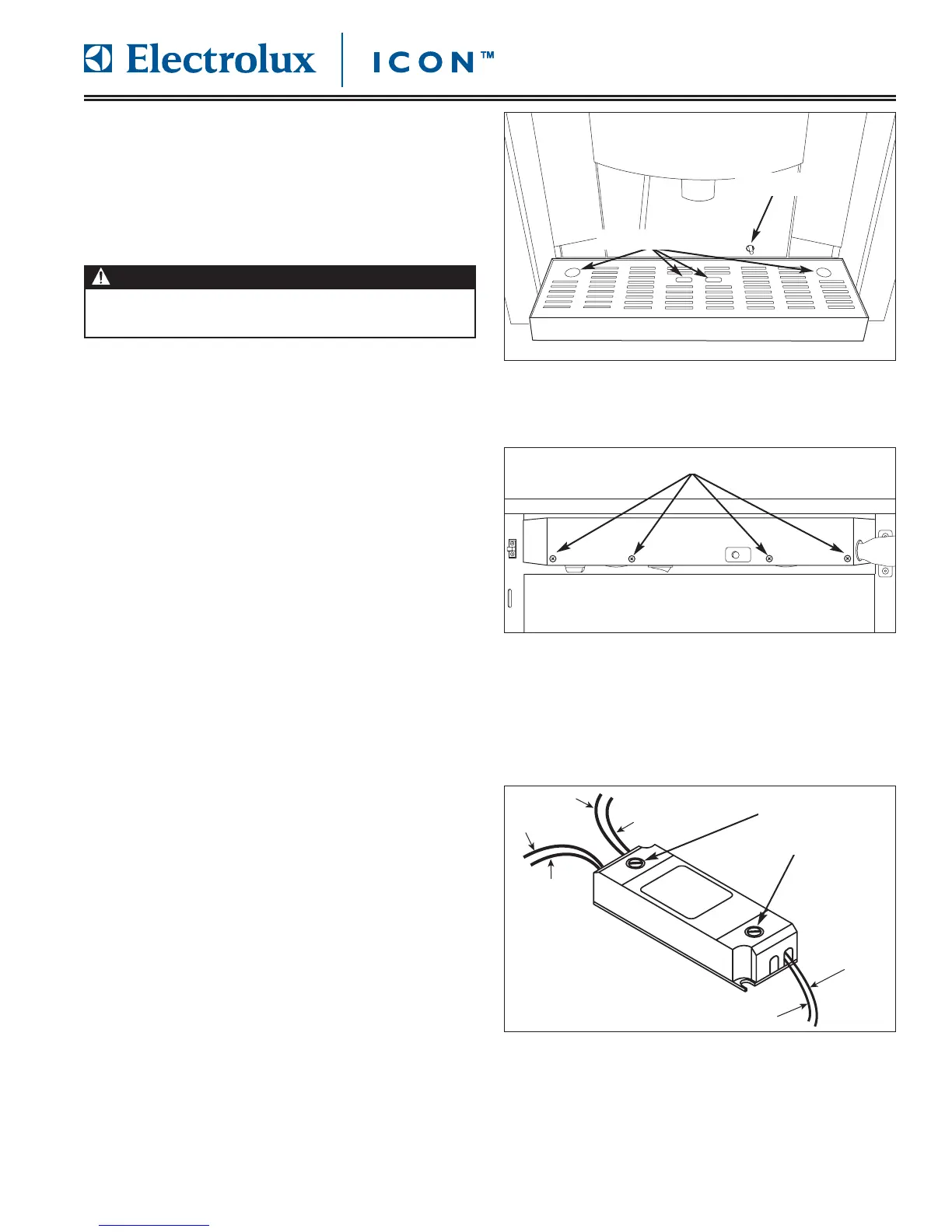

FFiigguurree 44--11.. DDrriipp TTrraayy RReemmoovvaall
Drain Tube
Drip Tray
